Installation Procedure

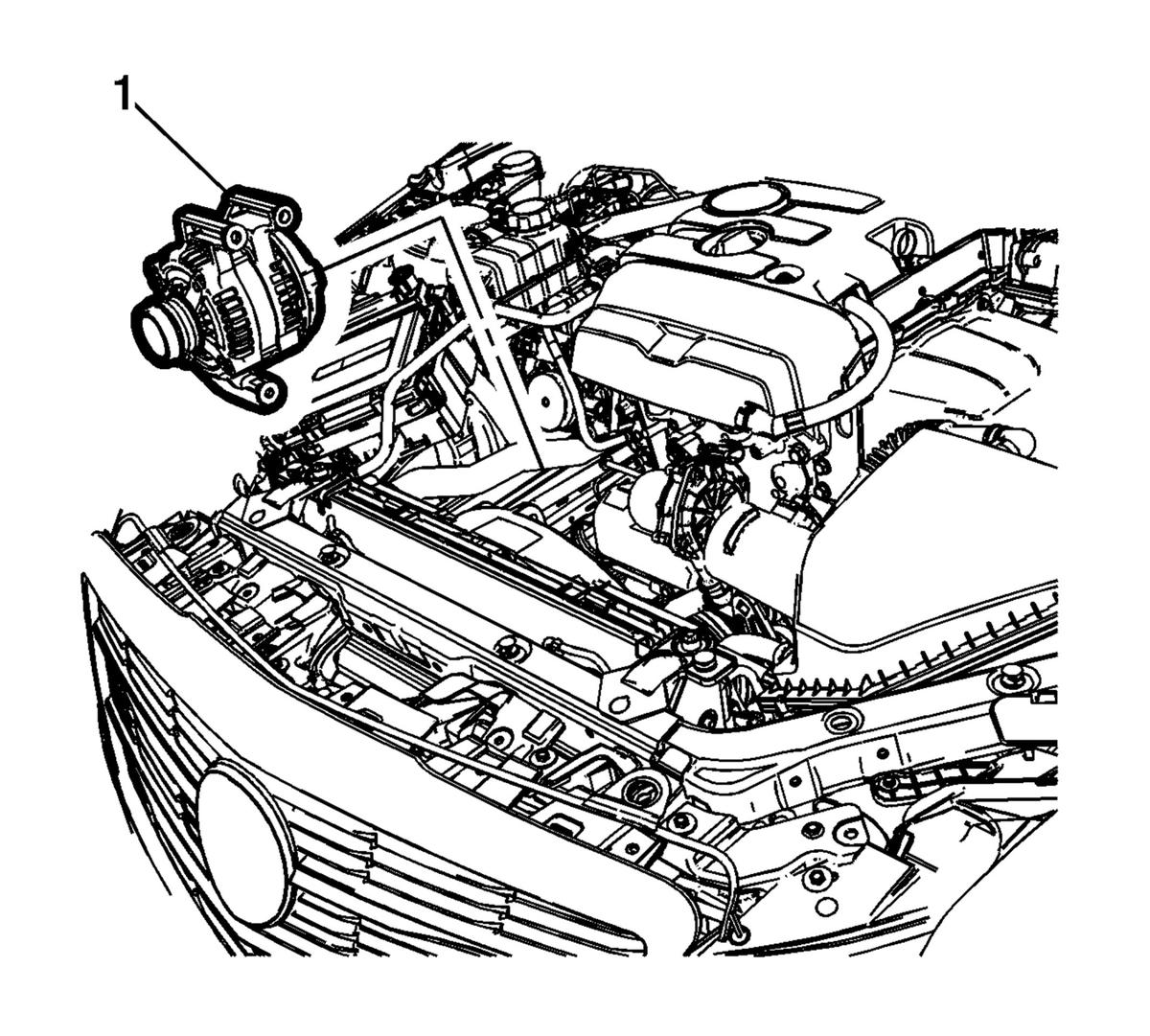

    Fig 1: Generator
    GM2833771Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator (1) into position on the engine.

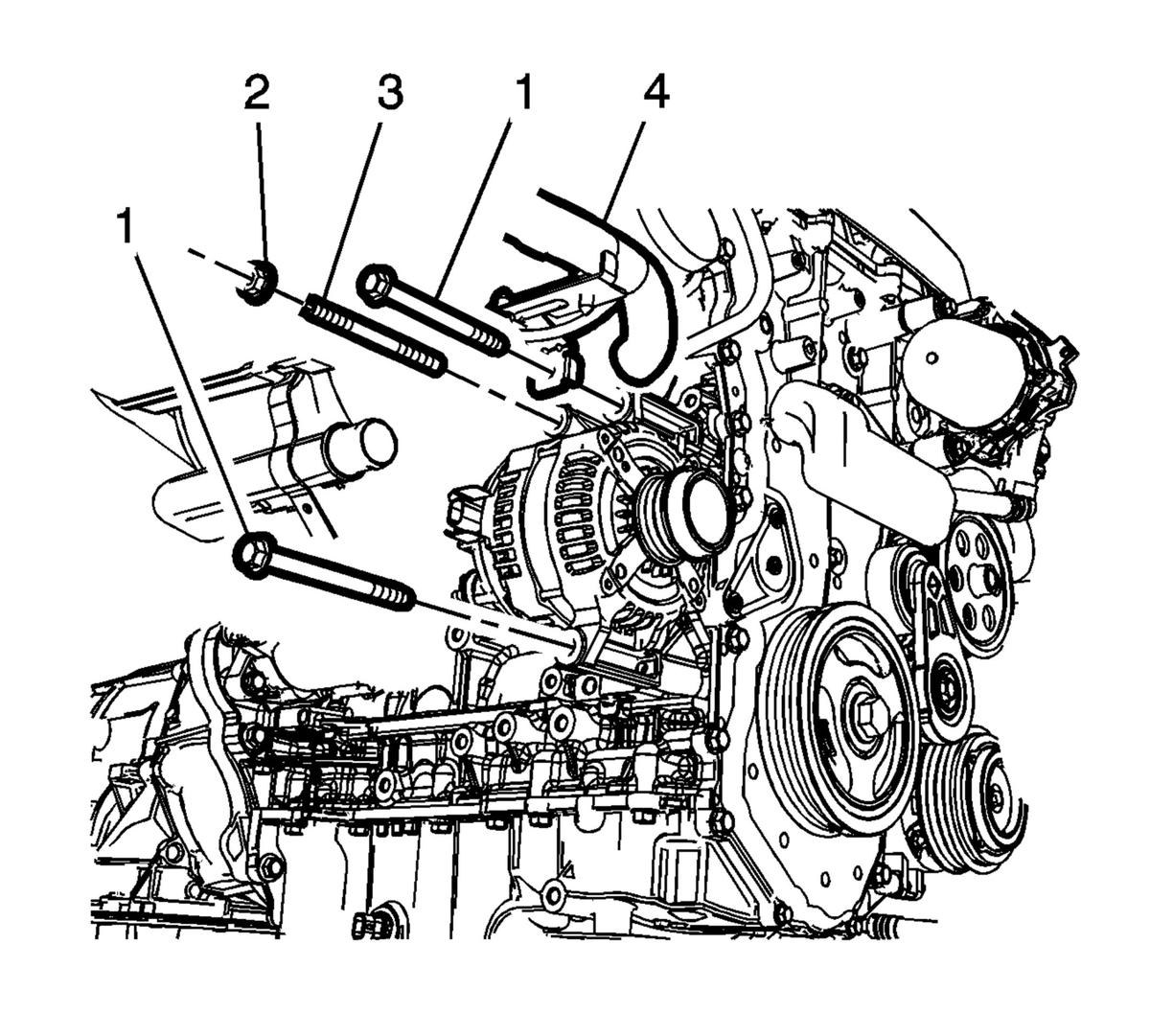

    2. Fig 2: Generator Mounting Fasteners
    GM2833769Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the generator mounting stud (3) and tighten to 9 N.m (80 lb in).
  3. Install the engine harness bracket (4) and the generator mounting fasteners (1). Tighten to 22 N.m (16 lb ft).
  4. Tighten the generator mounting fastener (2) to 22 N.m (16 lb ft).

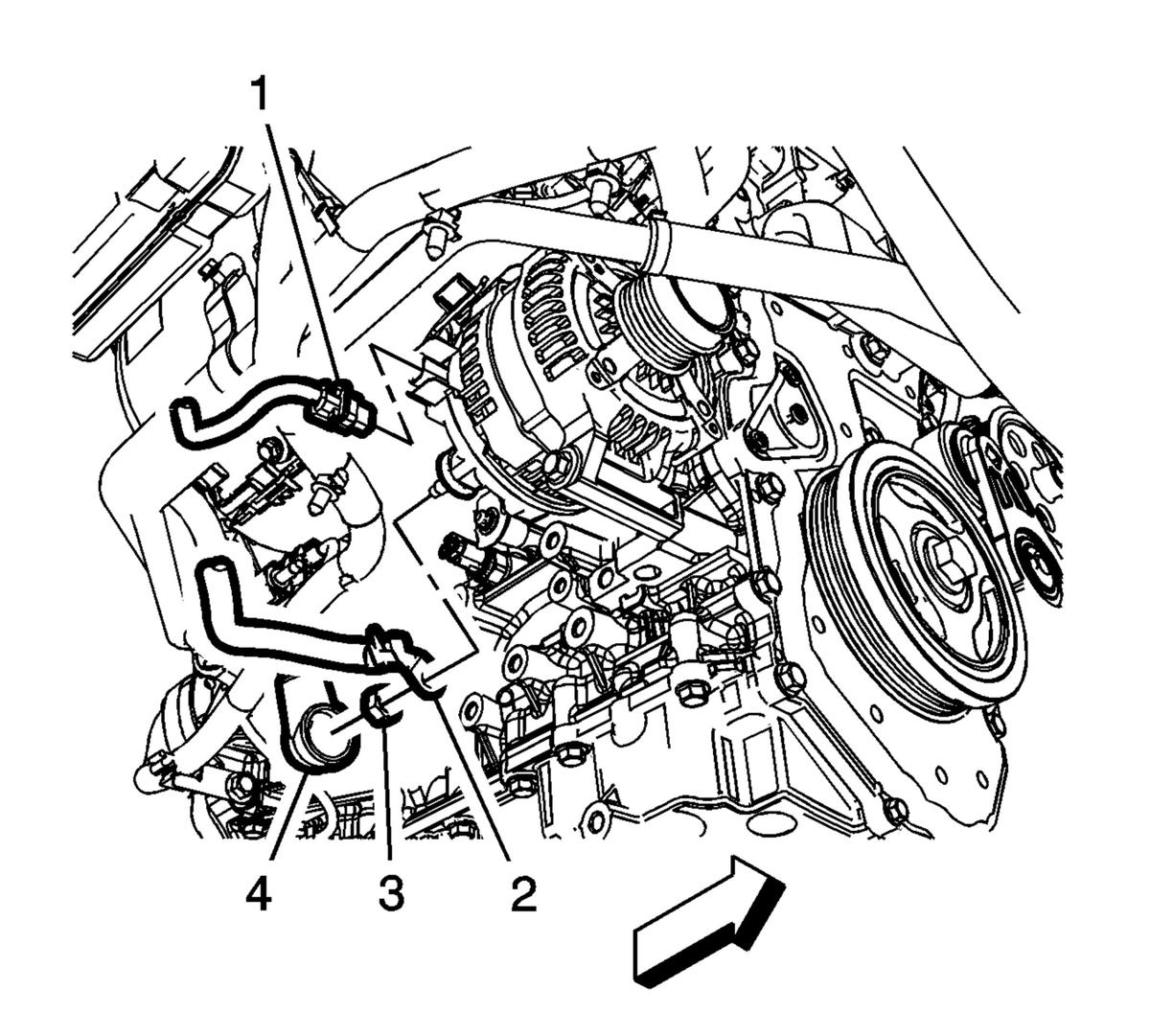

    5. Fig 3: Engine Harness Connector
    GM2833767Courtesy of GENERAL MOTORS COMPANY
  5. Connect the engine harness connector (1) and the engine harness battery positive terminal (2) to the generator. Tighten the fastener (3) to 15 N.m (11 lb ft).
  6. Install the generator B + protective boot (4).
  7. Install the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .
  8. Install the drive belt. Refer to Drive Belt Replacement .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9) .
