Generator Replacement (LT4)

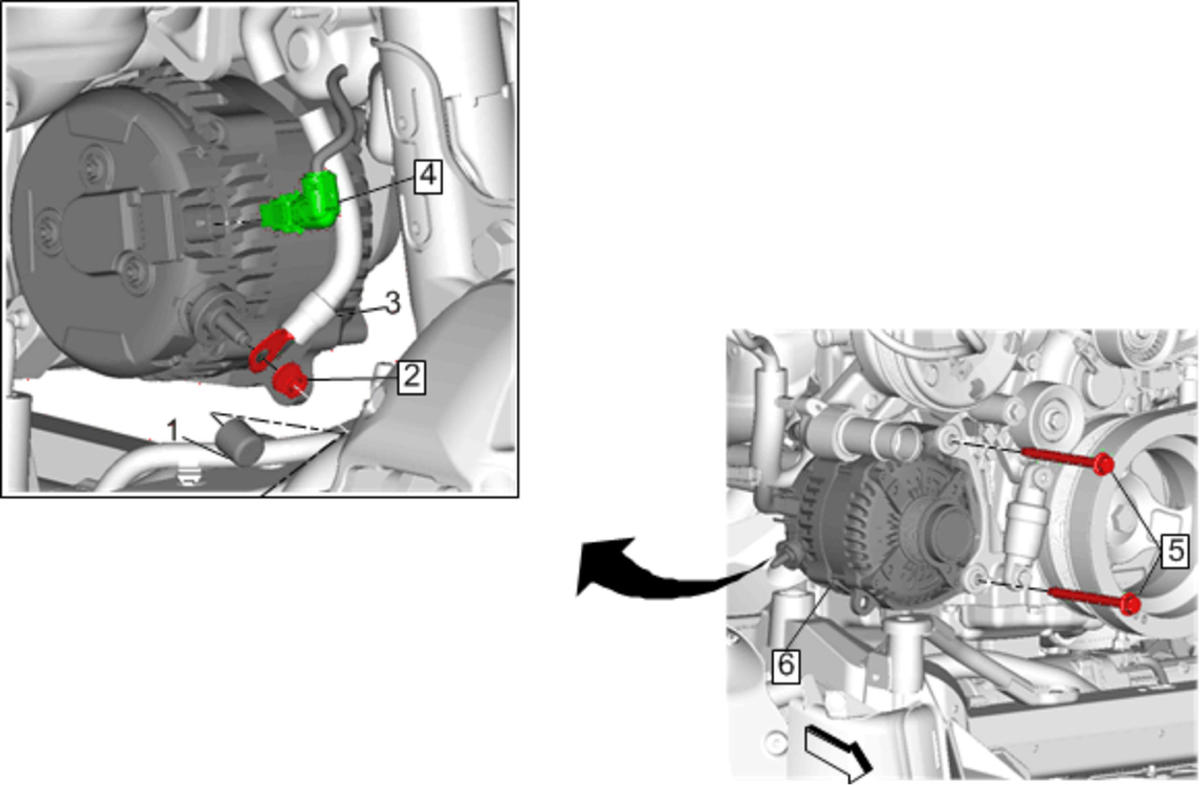

Fig 1: Generator (LT4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drive Belt Replacement - Accessory Radiator Inlet Hose Replacement (LT4) Radiator Outlet Hose Replacement (LT4) Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
1	Protective Cap
2	Battery Positive Cable Nut CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
3	Battery Positive Cable
4	Electrical Connector
5	Generator Bolt Tighten 58 N.m (43 lb ft)
6	Generator
