Generator Replacement (LGX)

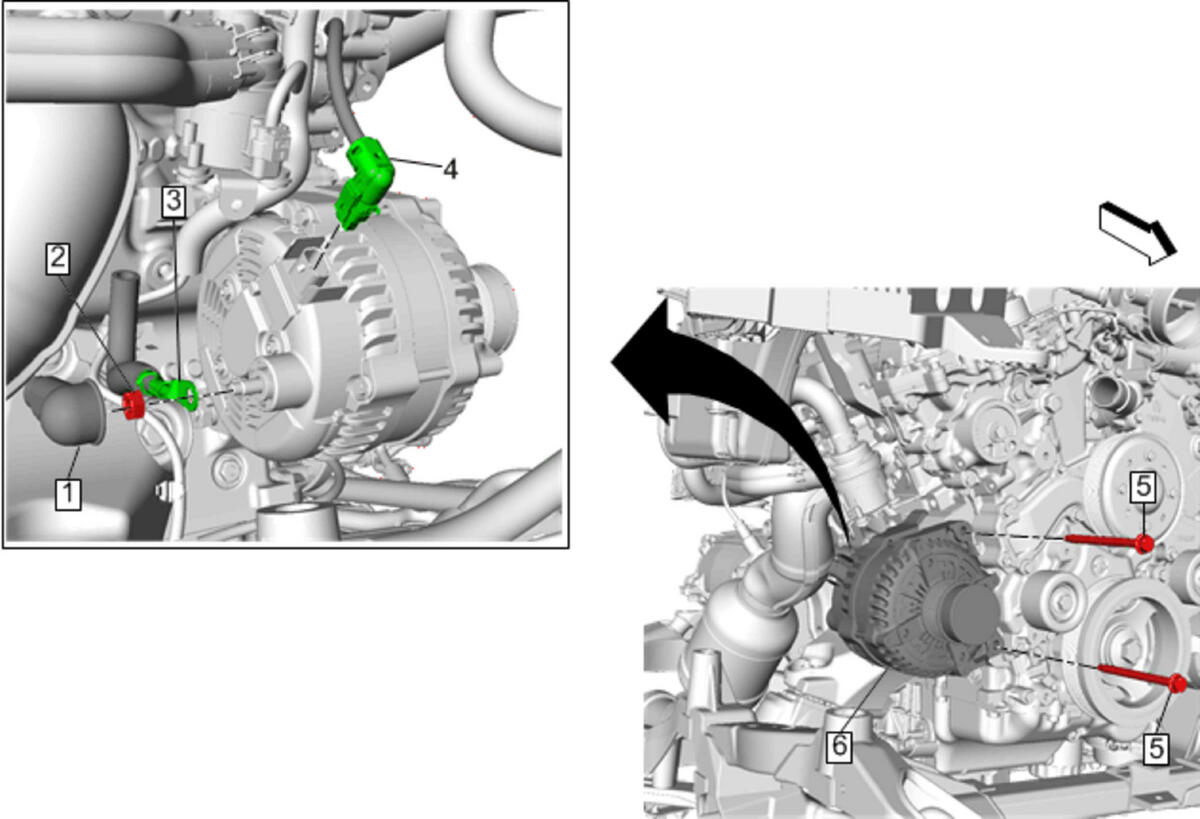

Fig 1: Generator (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) Front Compartment Lower Noise Shield Replacement (AWD)Front Compartment Lower Noise Shield Replacement (RWD)Front Compartment Lower Noise Shield Replacement (V - Series) Drive Belt Replacement (LGX) Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
1	Generator Terminal Protective Boot
2	Battery Positive Cable Nut CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
3	Battery Positive Cable
4	Electrical Connector
5	Generator Bolt Tighten 22 N.m (16 lb ft)
6	Generator
