Installation Procedure

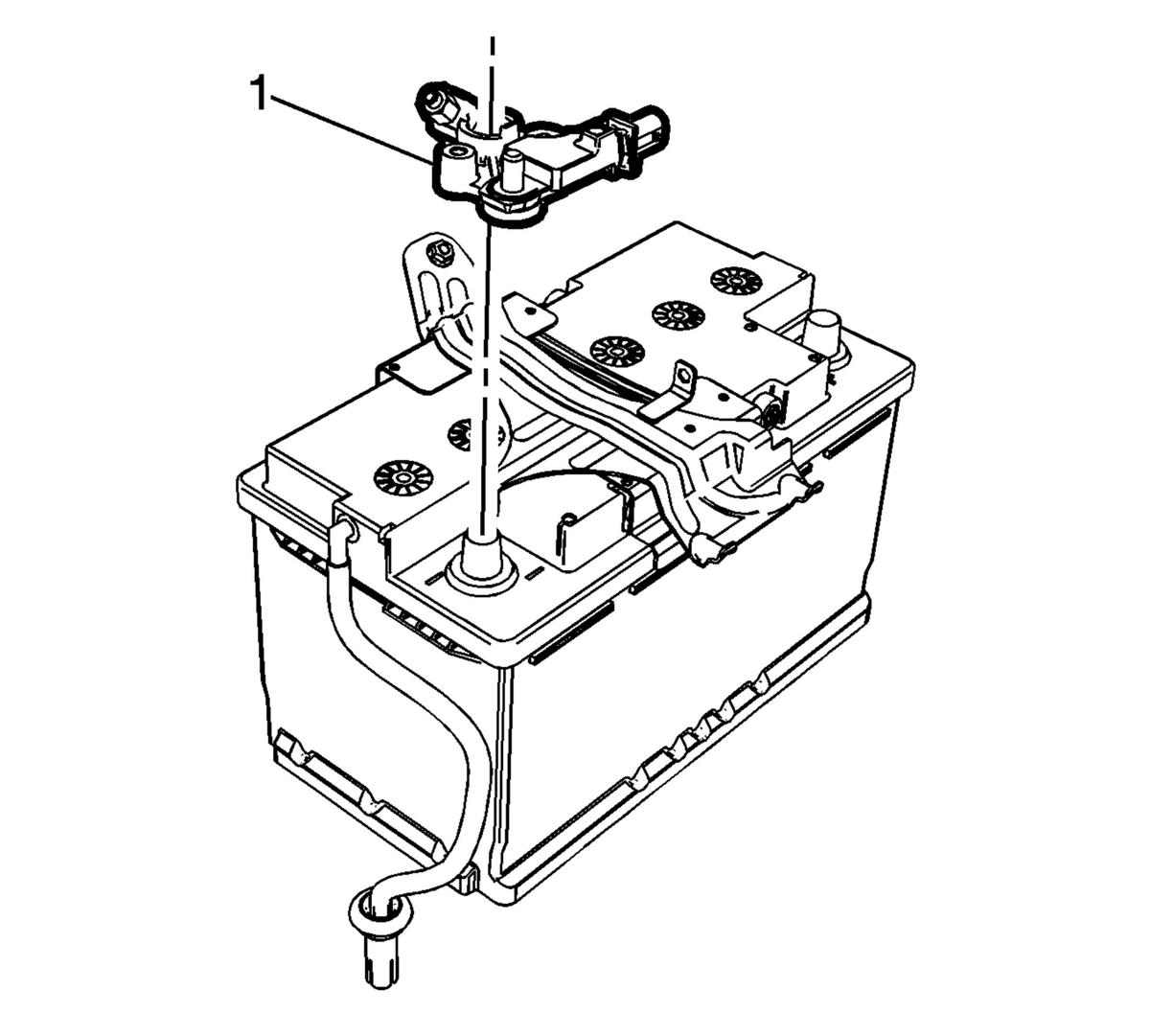

    Fig 1: Battery Sensor Removed
    GM2912572Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Sensor Module (1)

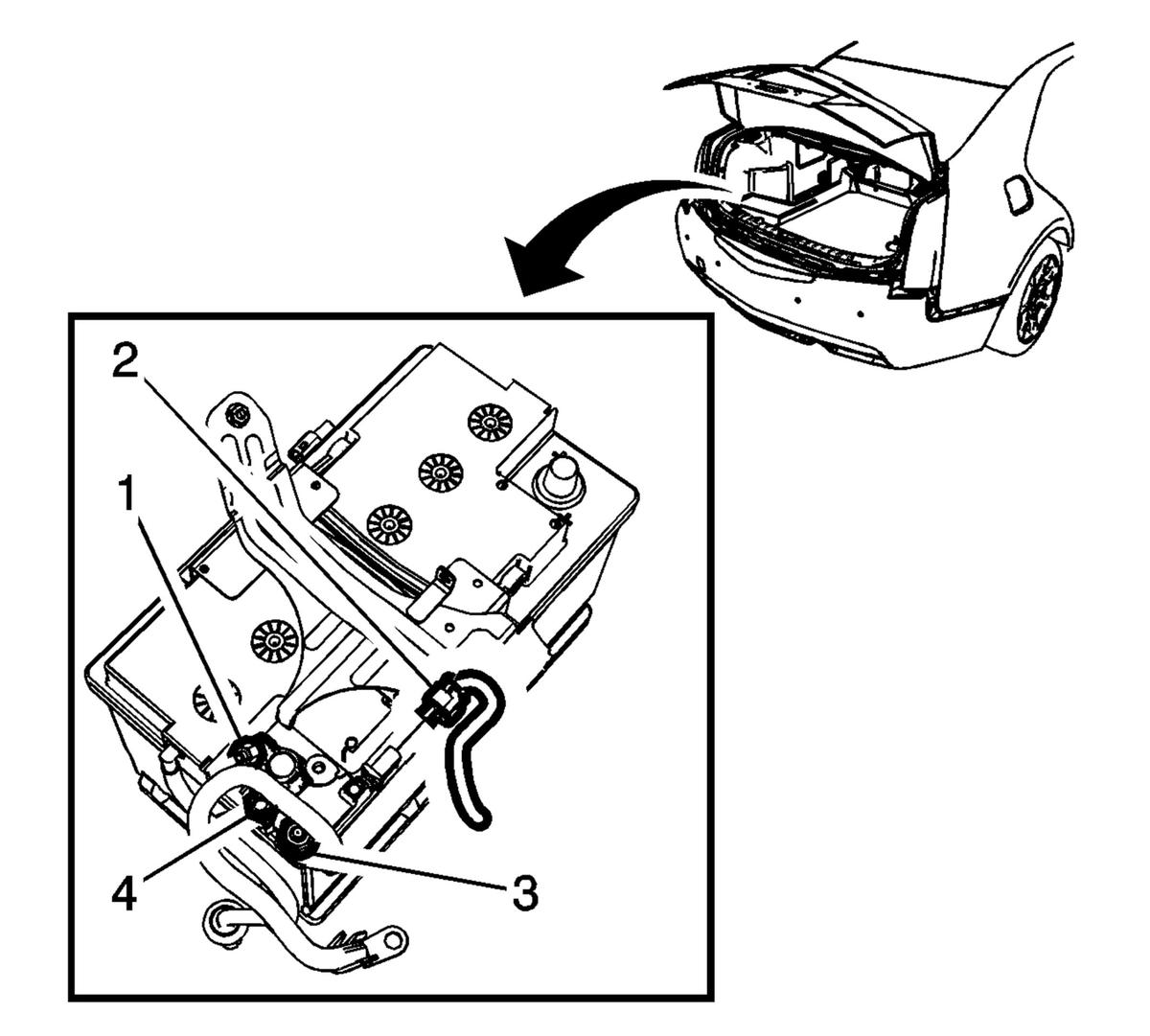

    2. Fig 2: Battery Sensor Connector & Negative Cable Components
    GM2912571Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Tighten Battery Negative Post Clamp Nut (1) to 7 N.m (62 lb in)
  3. Install Battery Negative Cable Nut (3) and tighten to 12 N.m (106 lb in).
  4. Install Body Harness Terminal Nut (4) and tighten to 9 N.m (80 lb in).
  5. Connect Electrical Connector (2)
    6. Fig 3: Rear Compartment Side Trim - Left Side
    GM3471420Courtesy of GENERAL MOTORS COMPANY
  6. Install Rear Compartment Side Trim Panel- Left Side (2) - Rear Compartment Side Trim Replacement - Left Side
  7. Program all of the customer's radio station presets and set the radio clock to the current time.
