Installation Procedure

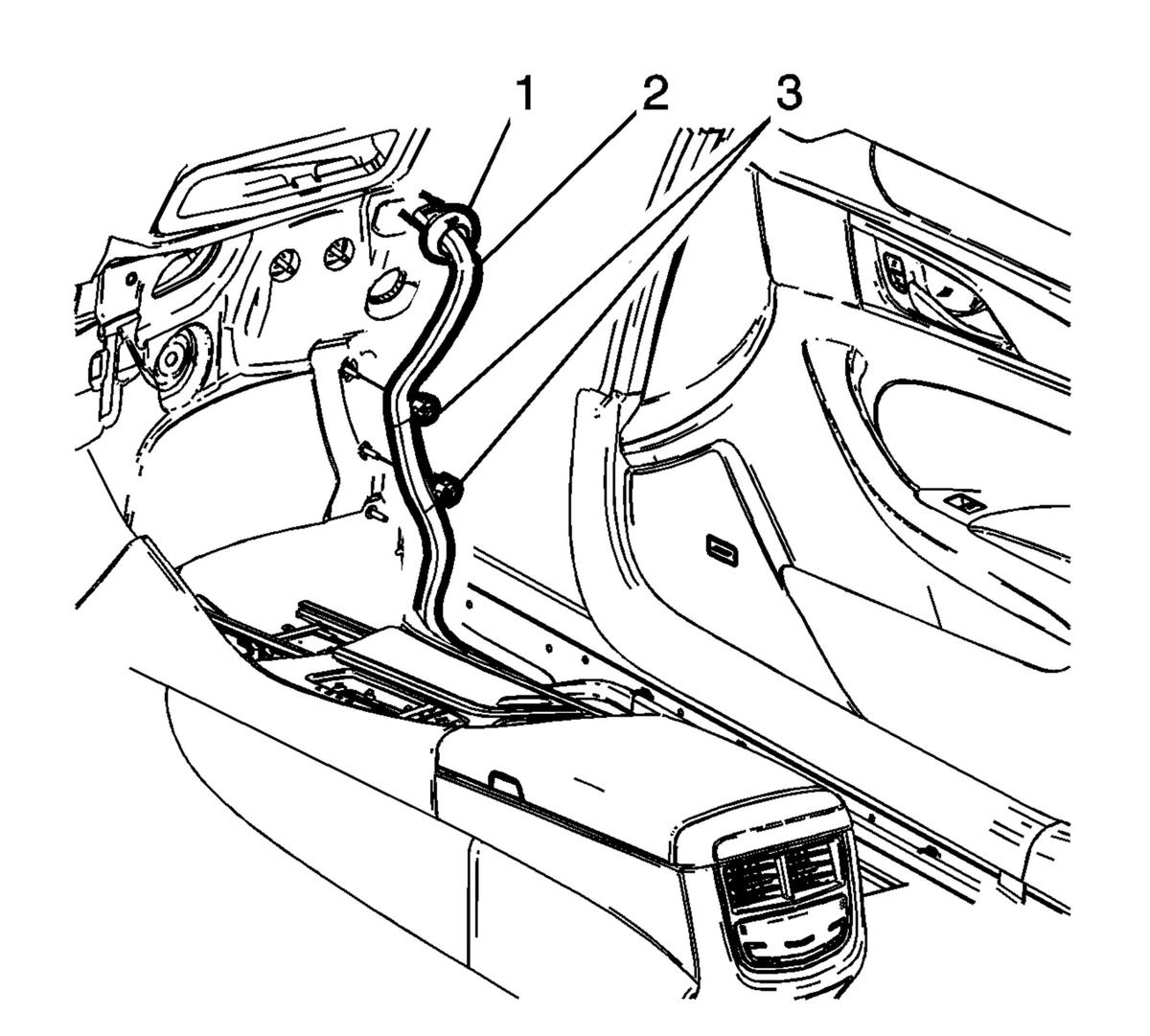

    Fig 1: Battery Positive Cable And Pass Through Grommet
    GM3461472Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine compartment battery positive cable (2) through the pass through opening and install the battery positive cable grommet (1).
  2. Attach the battery positive cable retainers (3) to the plenum studs.

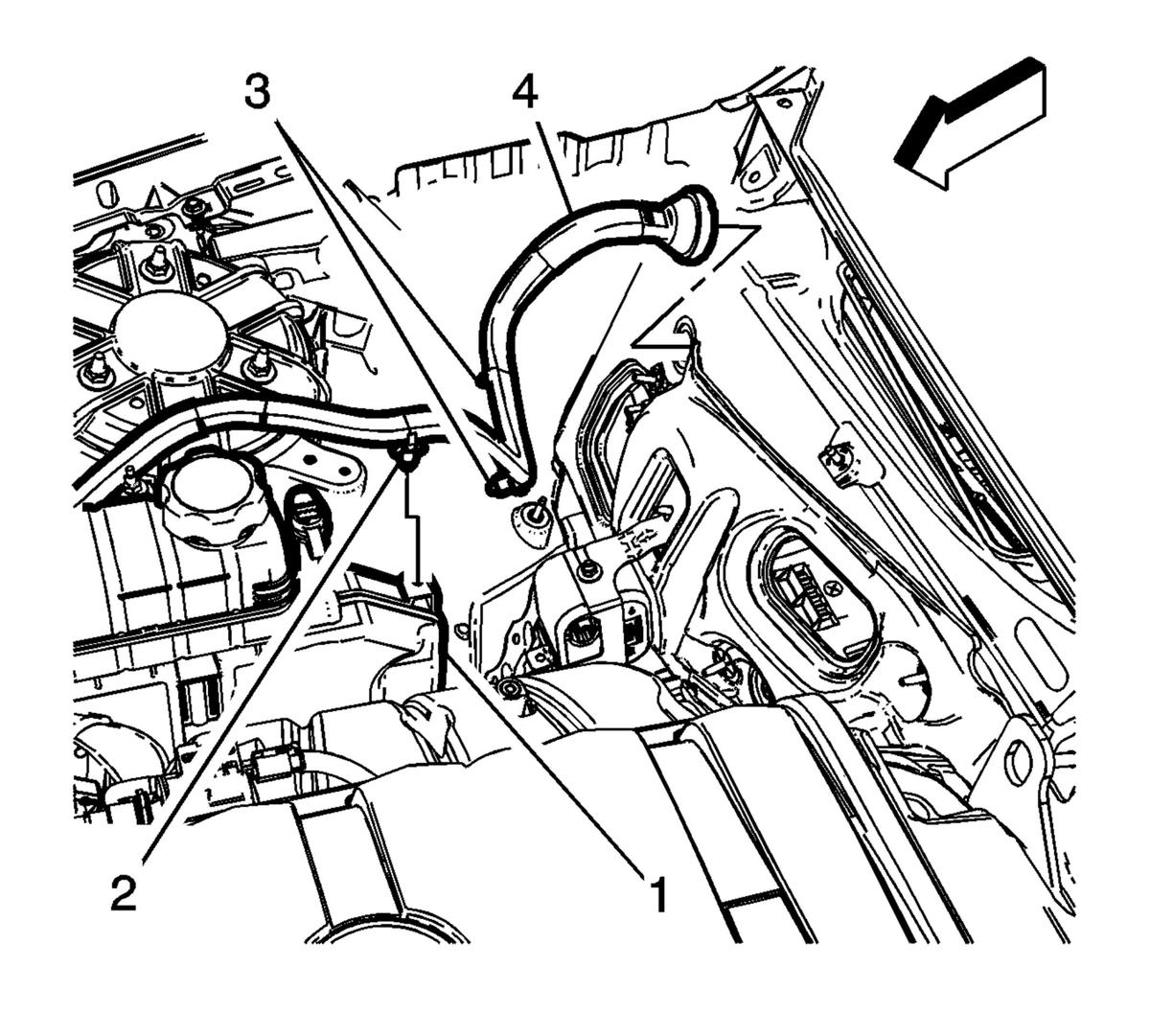

    3. Fig 2: Battery Positive Cable Retainer At Radiator Surge Tank
    GM3461537Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable (4) to the body harness and wheel house with the retainers (3).
  4. Install the battery positive cable retainer (2), to the radiator surge tank (1).

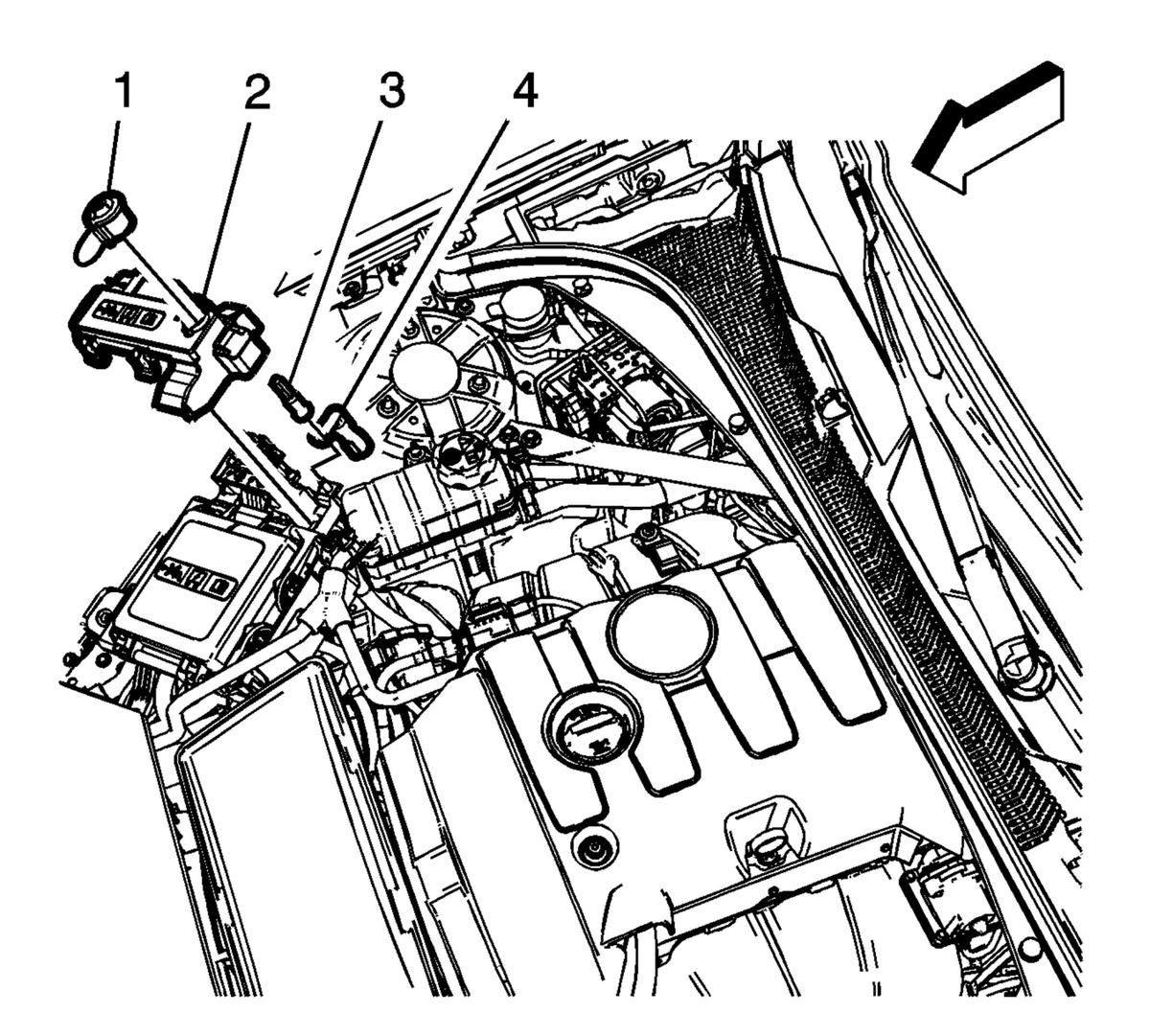

    5. Fig 3: Pre-Fuse Block
    GM2827728Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Attach the following to the pre-fuse block:
    • Starter Solenoid Cable (4).
    • Battery Positive Barrel Fastener (3). Tighten to 15 N.m (11 lb ft).
    • Pre-Fuse Block Cover (2).
    • Battery Jumper Post Cover (1).
  6. Reposition the brake pressure modulator valve. Refer to Brake Pressure Modulator Valve Replacement .
  7. Install the front plenum panel. Refer to Plenum Front Panel Replacement .

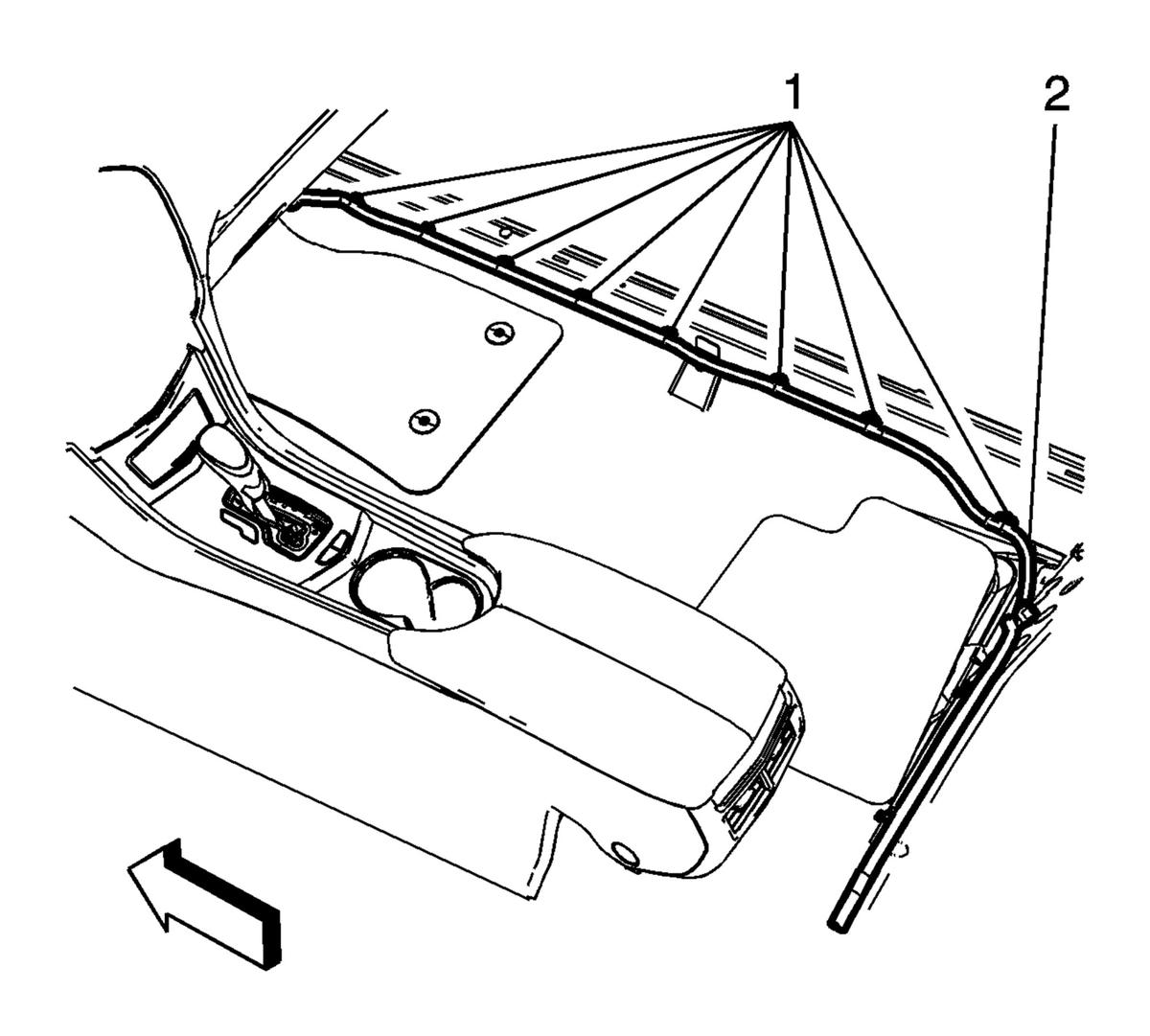

    8. Fig 4: Battery Positive Cable Retainers
    GM2827724Courtesy of GENERAL MOTORS COMPANY
  8. Attach the battery positive cable (2) to the right side passenger compartment with the retainers (1).

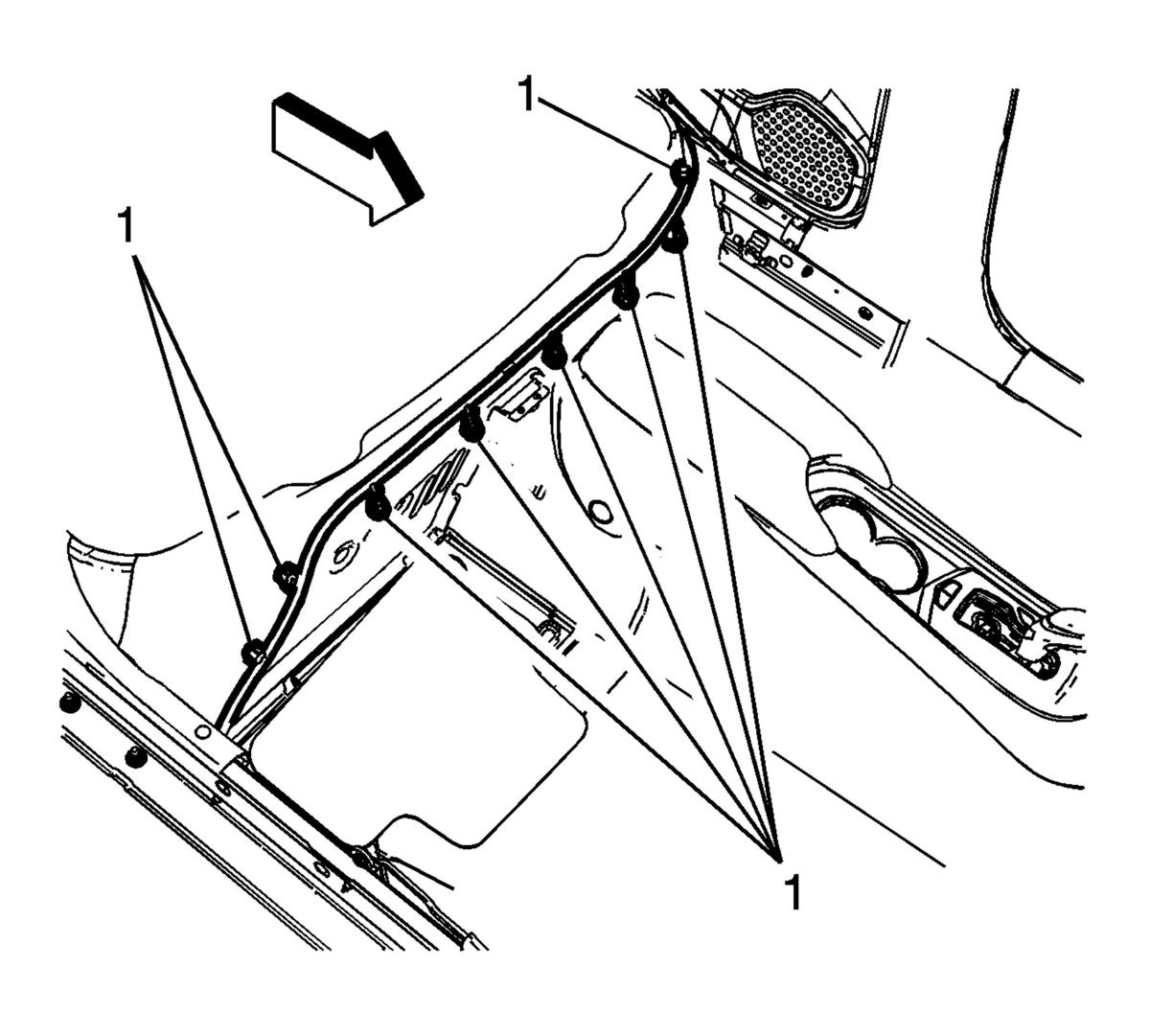

    9. Fig 5: Battery Positive Cable Retainers
    GM2827721Courtesy of GENERAL MOTORS COMPANY
  9. Position the battery positive cable (2) along the rear seat area with the retainers (1).

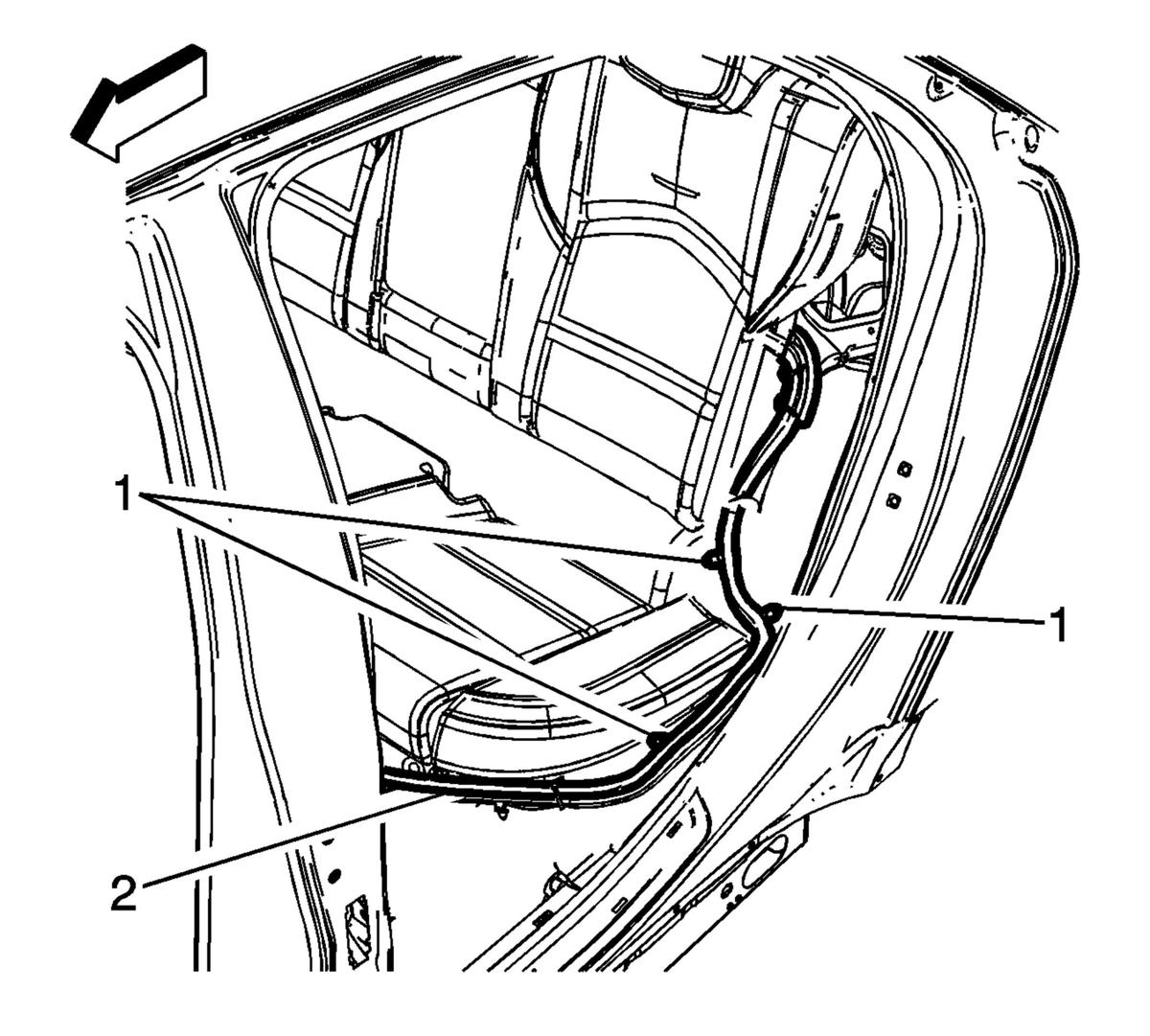

    10. Fig 6: Battery Positive Cable Retainers At Side Of Left Rear Seat.
    GM3461473Courtesy of GENERAL MOTORS COMPANY
  10. Install the battery positive cable (2) along the left rear seat with the retainers (1).
  11. Position the front and rear carpet back into position.
  12. Install the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
  13. Install the rear side door sill garnish molding left and right. Refer to Rear Side Door Sill Garnish Molding Replacement .
  14. Install the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  15. Install the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  16. Install the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement .
  17. Install the passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

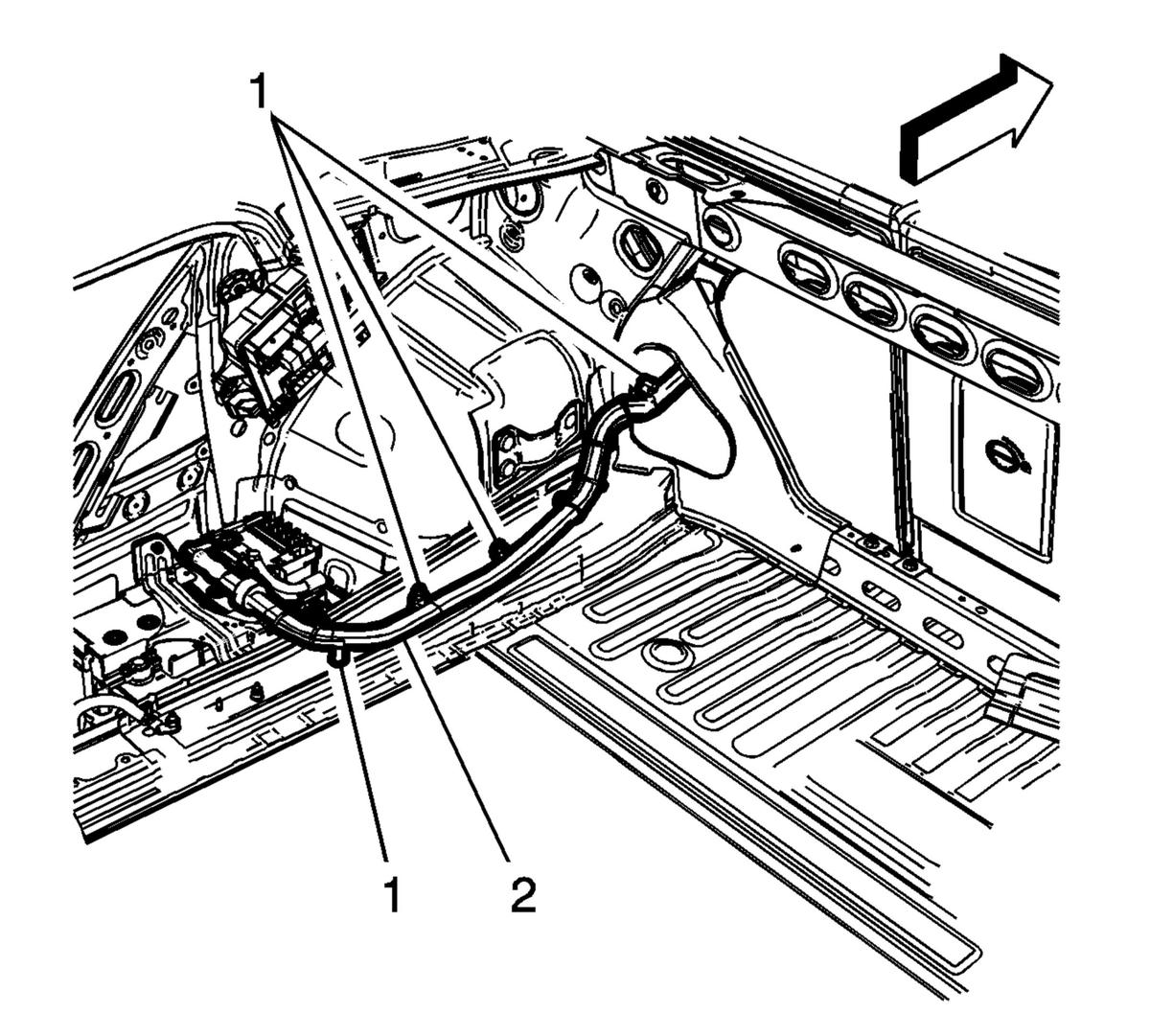

    18. Fig 7: Battery Positive Cable Retainers At Studs and body harness
    GM3461475Courtesy of GENERAL MOTORS COMPANY
  18. Install the battery positive cable (2) along the left rear compartment area with the retainers (1).

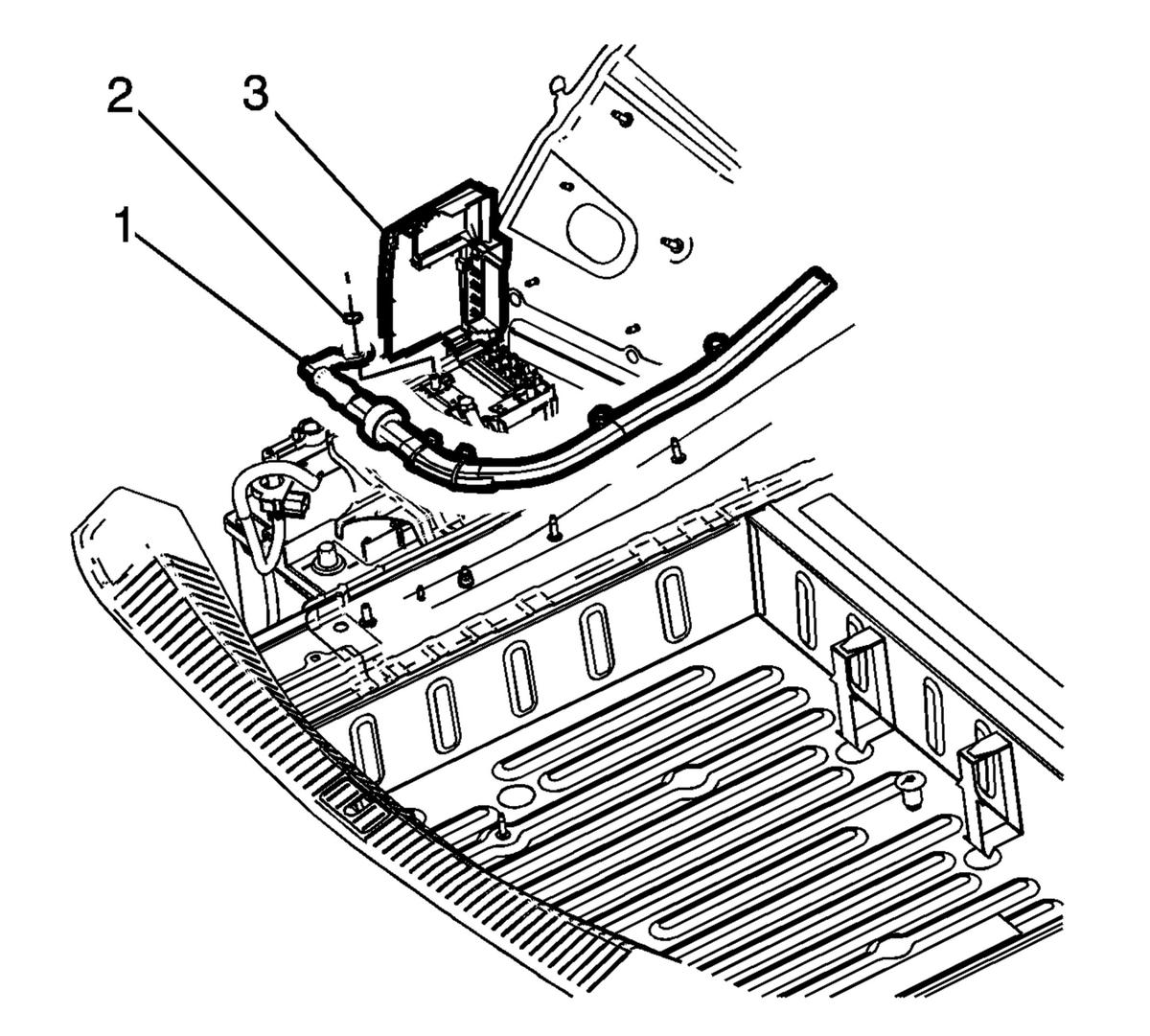

    19. Fig 8: Battery Fuse Block Cover
    GM3461476Courtesy of GENERAL MOTORS COMPANY
  19. Install the battery positive cable terminal (1) to the battery fuse block stud and tighten the fastener (2) to 12 N.m (106 lb in).
  20. Install the battery fuse block cover (3).
  21. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9) .
  22. Install the left side rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side .
