Installation Procedure

  1. Install the wheel speed sensor to the suspension knuckle.

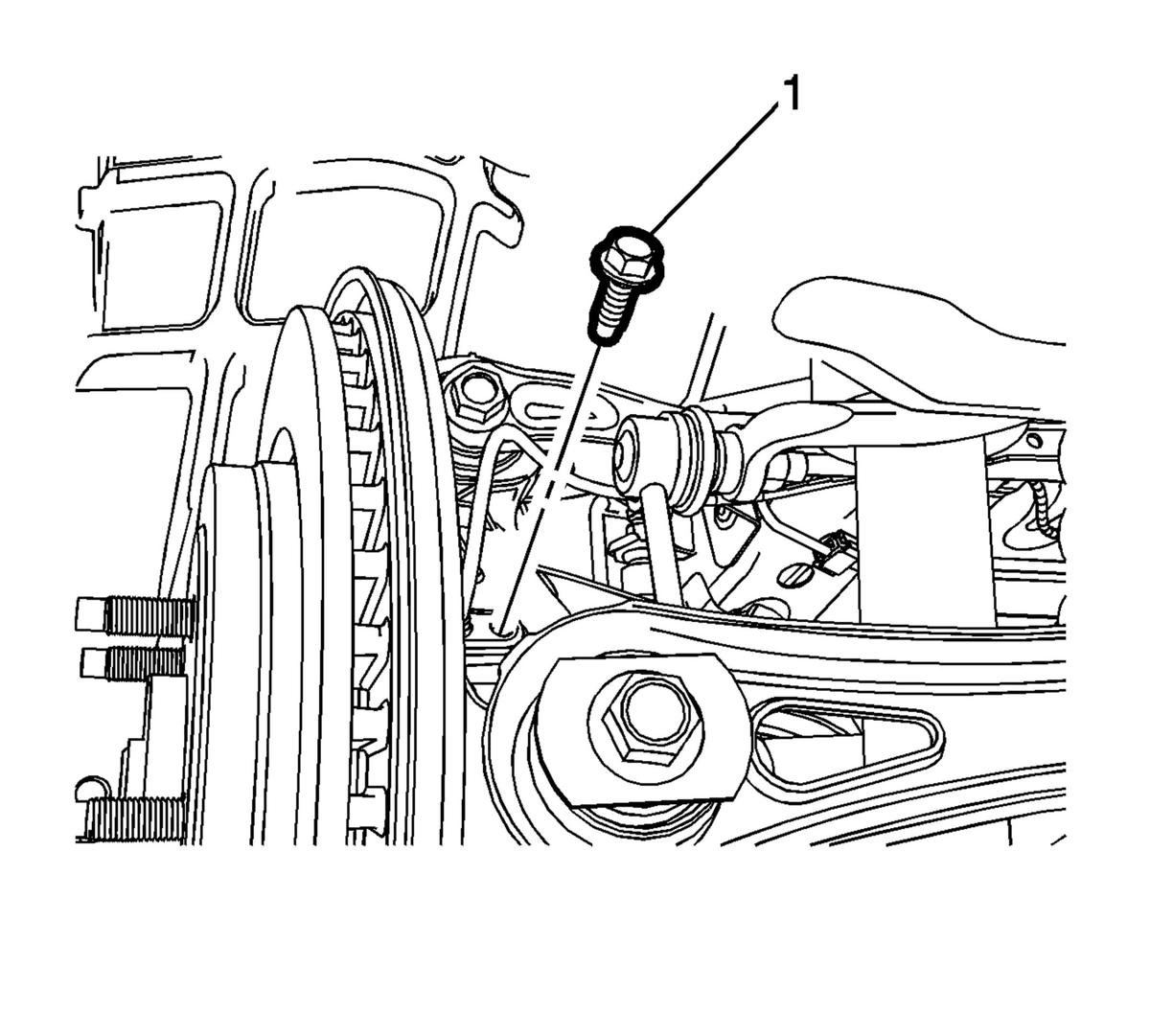

    2. Fig 1: Wheel Speed Sensor Bolt
    GM2809455Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 10 N.m (89 lb in).

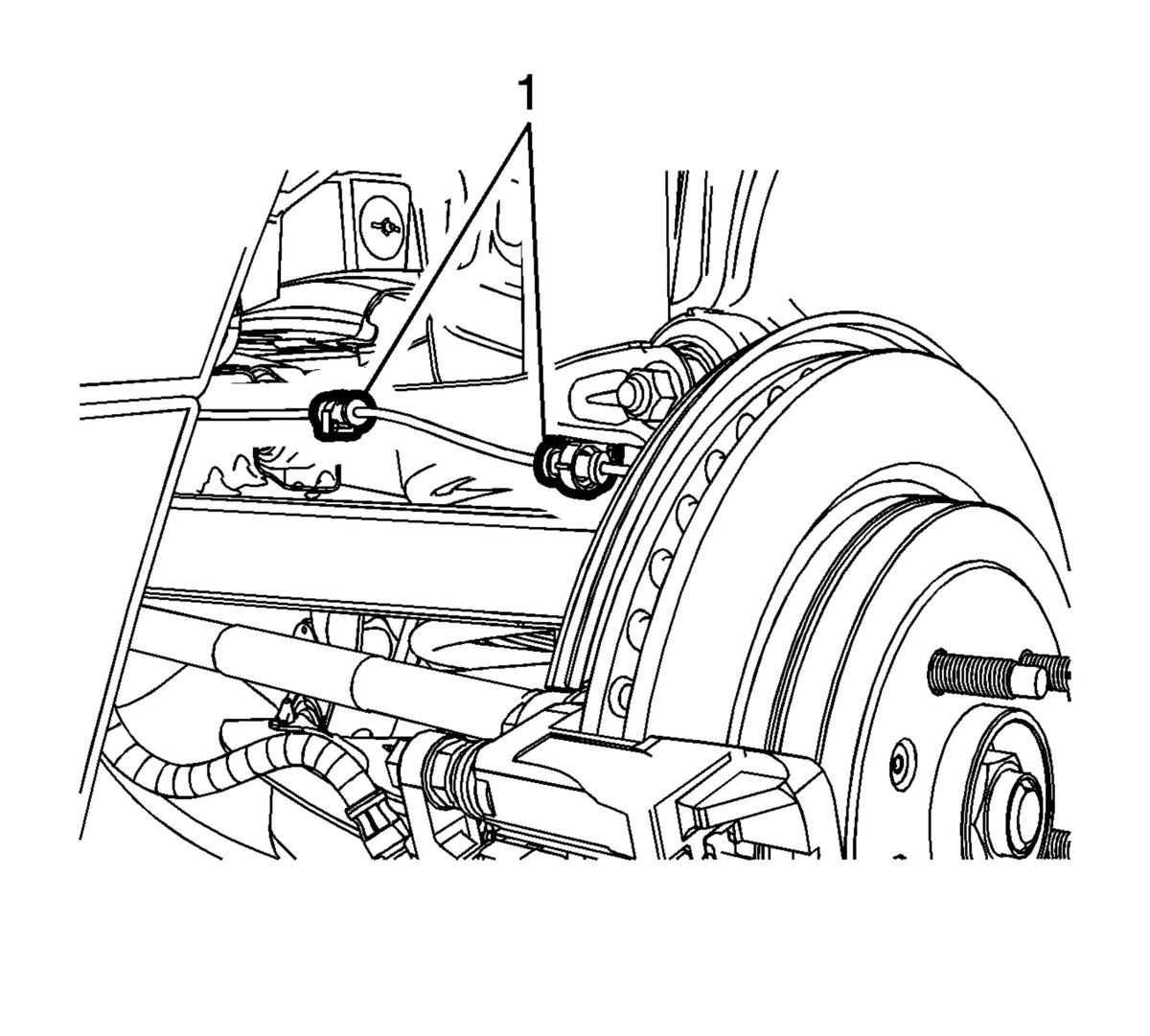

    3. Fig 2: Wheel Speed Sensor Harness Clip
    GM2809452Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness clips (1) to the upper suspension arm.

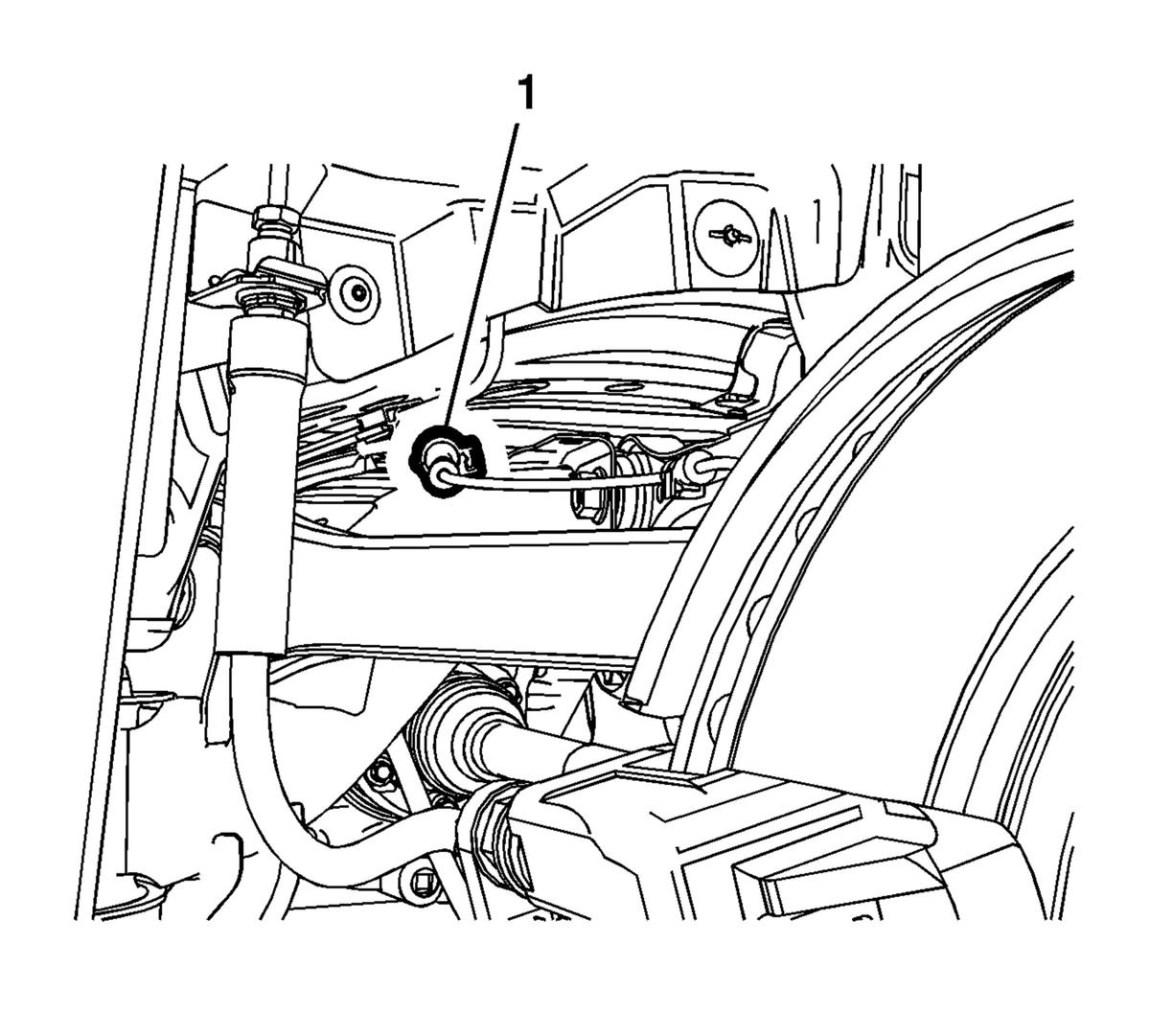

    4. Fig 3: Wheel Speed Sensor Harness Clip
    GM2809449Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor harness clip (1) to the vehicle frame.

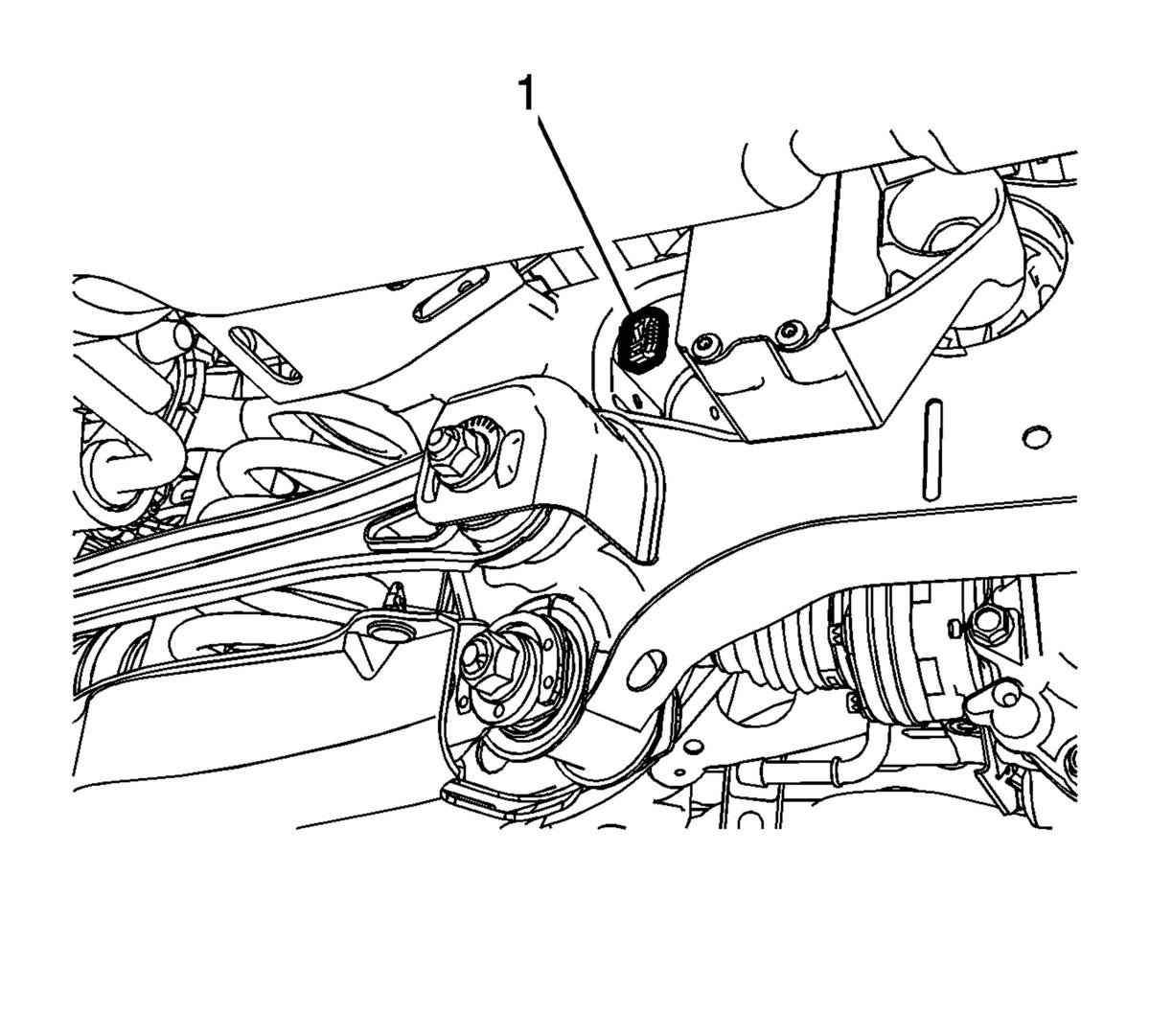

    5. Fig 4: Wheel Speed Sensor Electrical Connector Clip
    GM2809448Courtesy of GENERAL MOTORS COMPANY
  5. Connect the wheel speed sensor electrical connector.
  6. Install the connector clip (1) to the vehicle frame.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
