Front Seat Adjuster Memory Switch Replacement

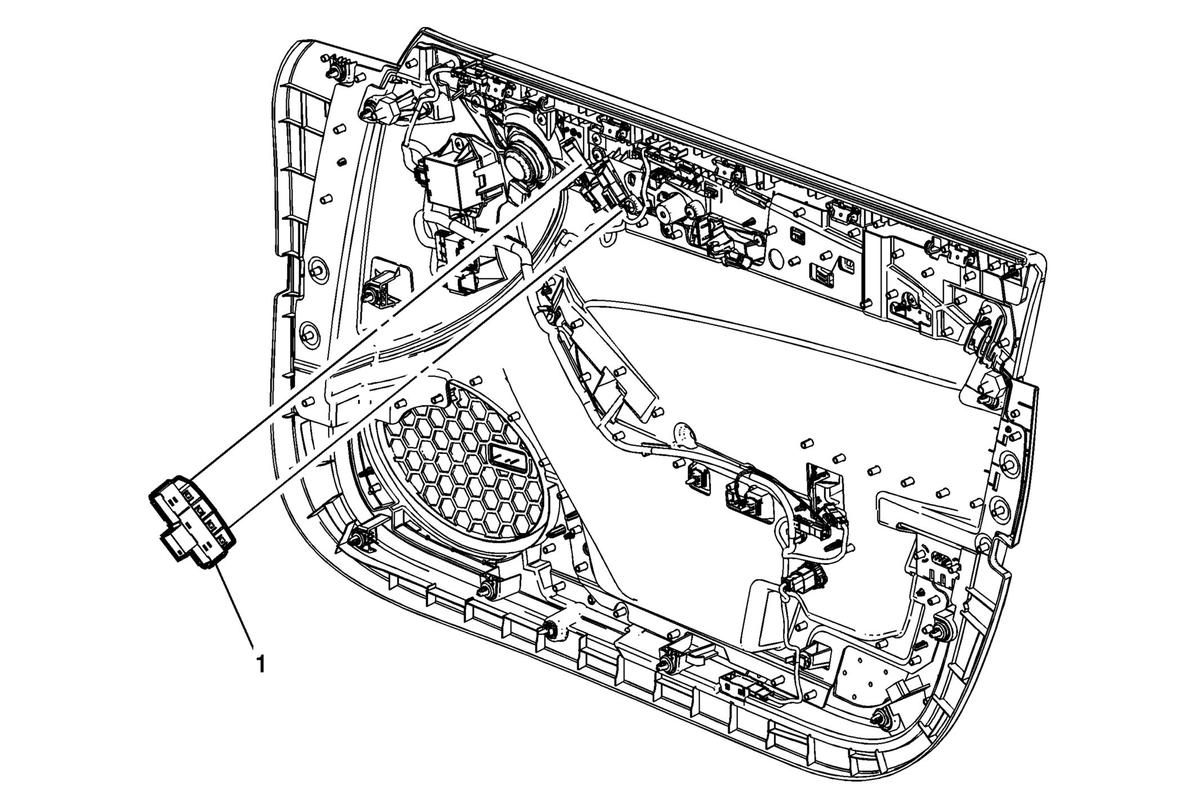

Fig 1: Front Seat Adjuster Memory Switch
GM3462557Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1 Front Seat Adjuster Memory Switch

Procedure

  1. Disconnect the electrical connector.
  2. Using a plastic trim tool, gently pry on the sides of the switch to release it from the panel.
NOTE:

Reposition the front side door trim panel insulator as necessary.
