Transmission Support Replacement (RWD)

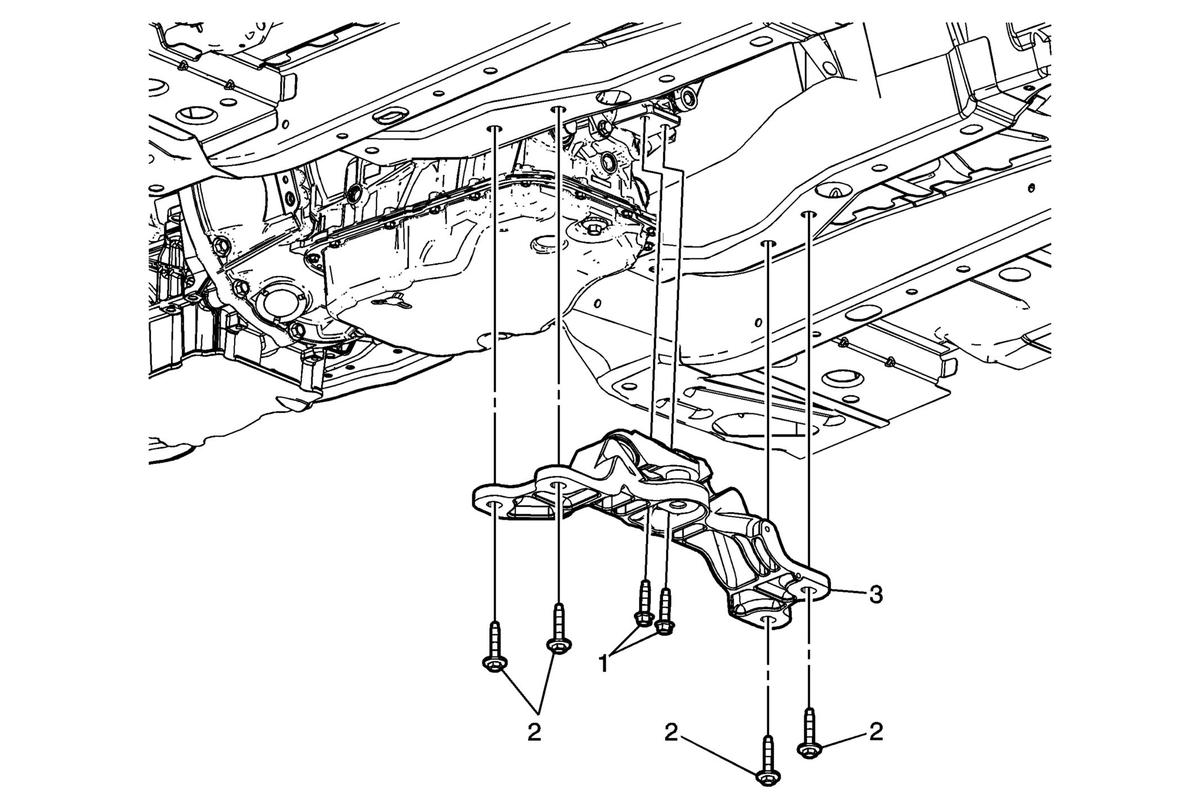

Fig 1: Transmission Support (RWD)
GM1981494Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V) .
  2. Support the transmission.
1 Transmission Mount Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
60 N.m (44 lb ft)
2 Transmission Support Bolt (Qty: 4)
Tighten
60 N.m (44 lb ft)
3 Transmission Support
