Radio Control Assembly Replacement

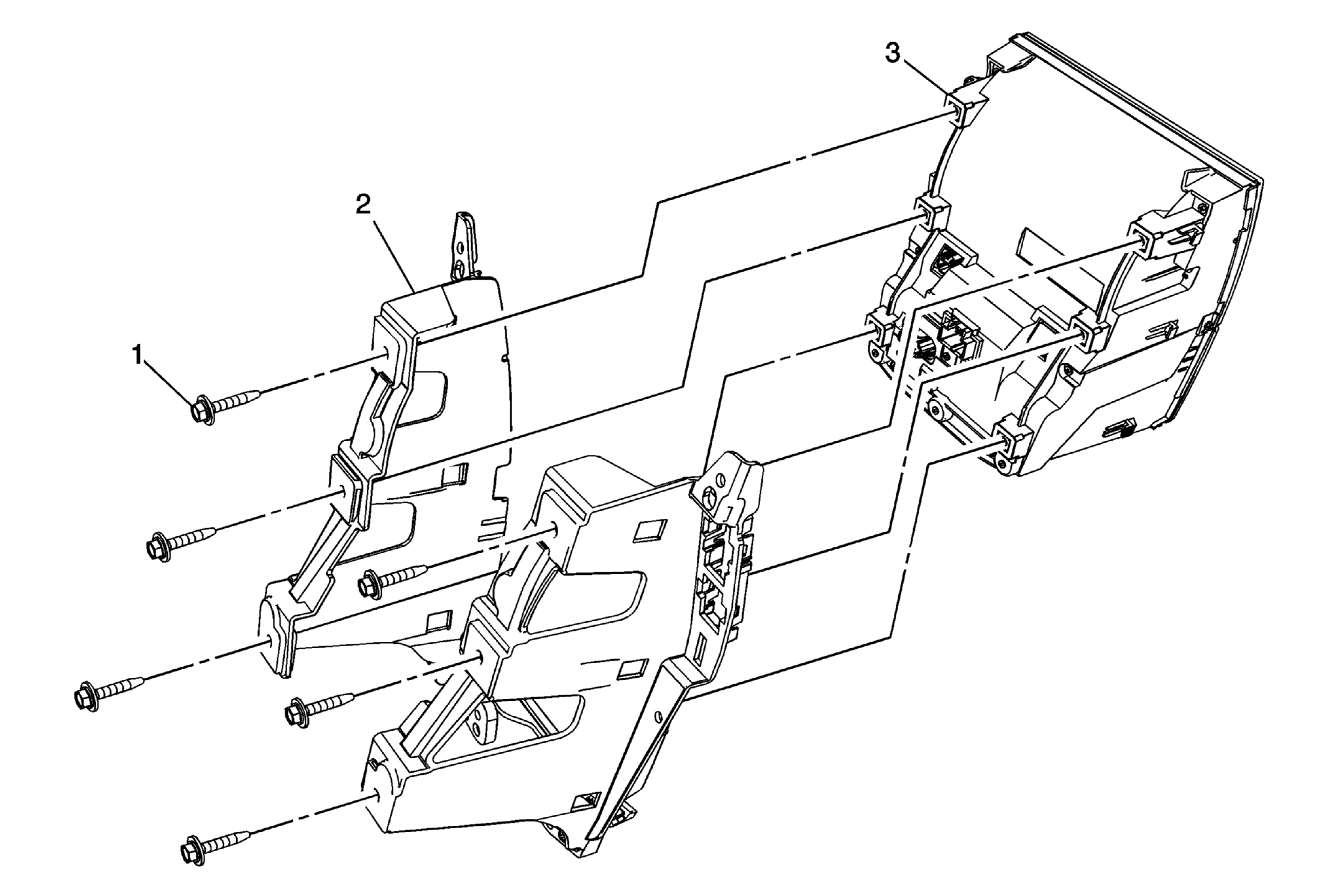

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory bracket. Refer to Instrument Panel Accessory Bracket Replacement .
1	Radio Control Fasteners (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Accessory Bracket
3	Radio Control Assembly Procedure Remove the radio control from the bracket assembly. Refer to Control Module References for programming and setup information.
