Lane Keep Assist (UHX-UGN) and Forward Collision Alert (UEU)

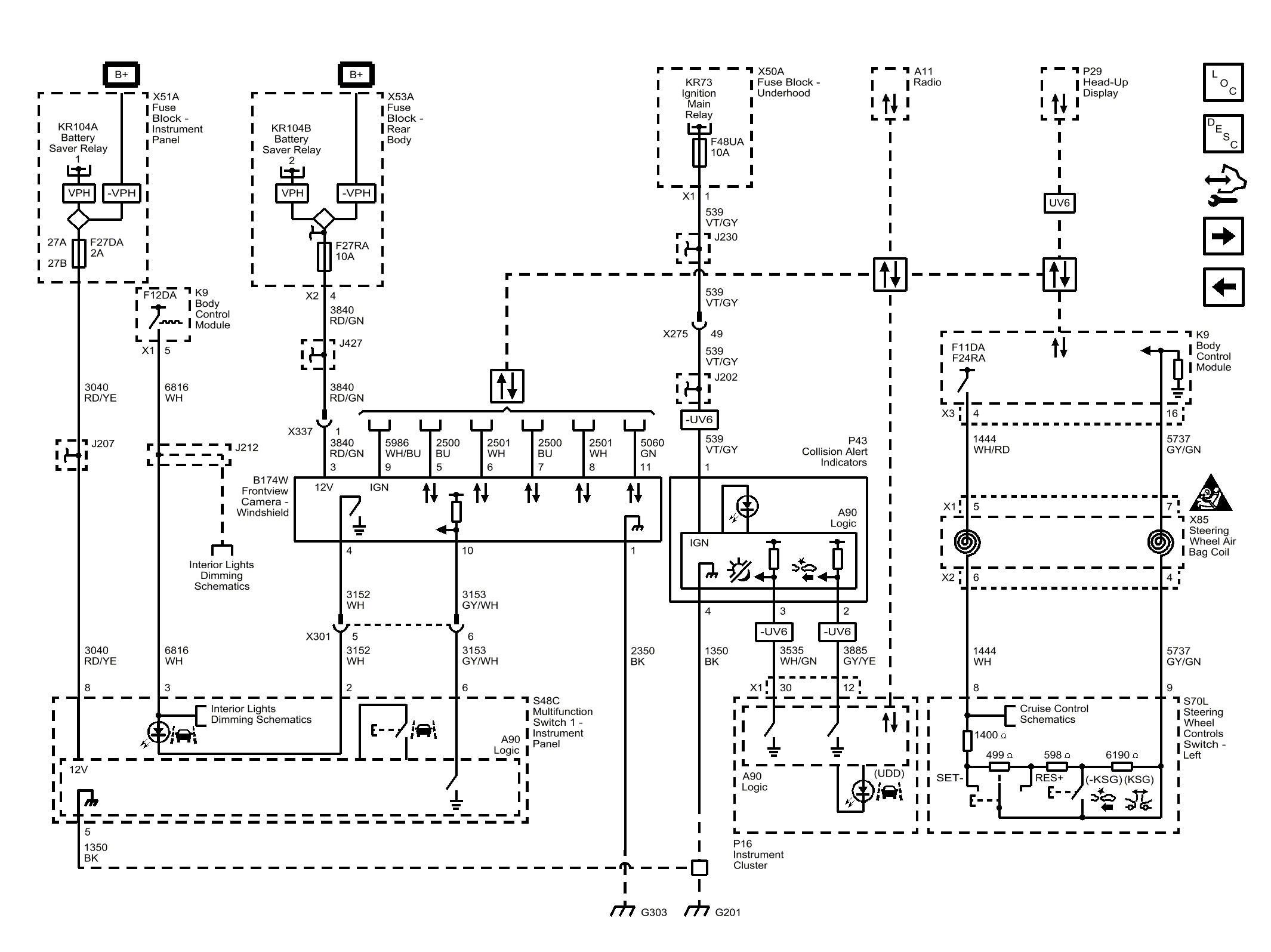

Fig 1: Lane Keep Assist (UHX-UGN) and Forward Collision Alert (UEU)

GM4493552

Courtesy of GENERAL MOTORS COMPANY
