Rearview Driver Information Camera Replacement (With DRZ)

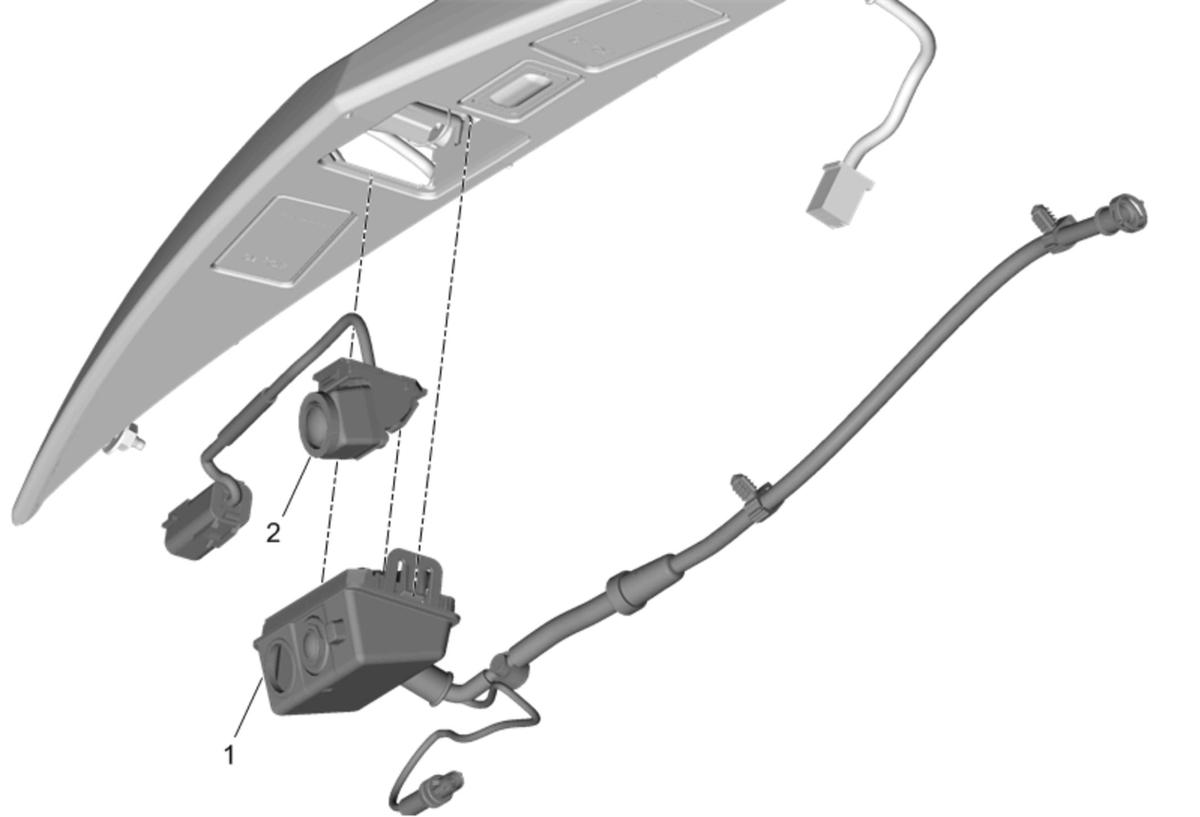

Fig 1: Rearview Driver Information Camera (With DRZ)
GM4565275Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Closure Center Applique Replacement
1 Rearview Driver Information Camera

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
2 Rearview Driver Information Camera
Procedure
Use a small flat bladed tool to remove the camera.
