Front View Camera Replacement (With UQT)

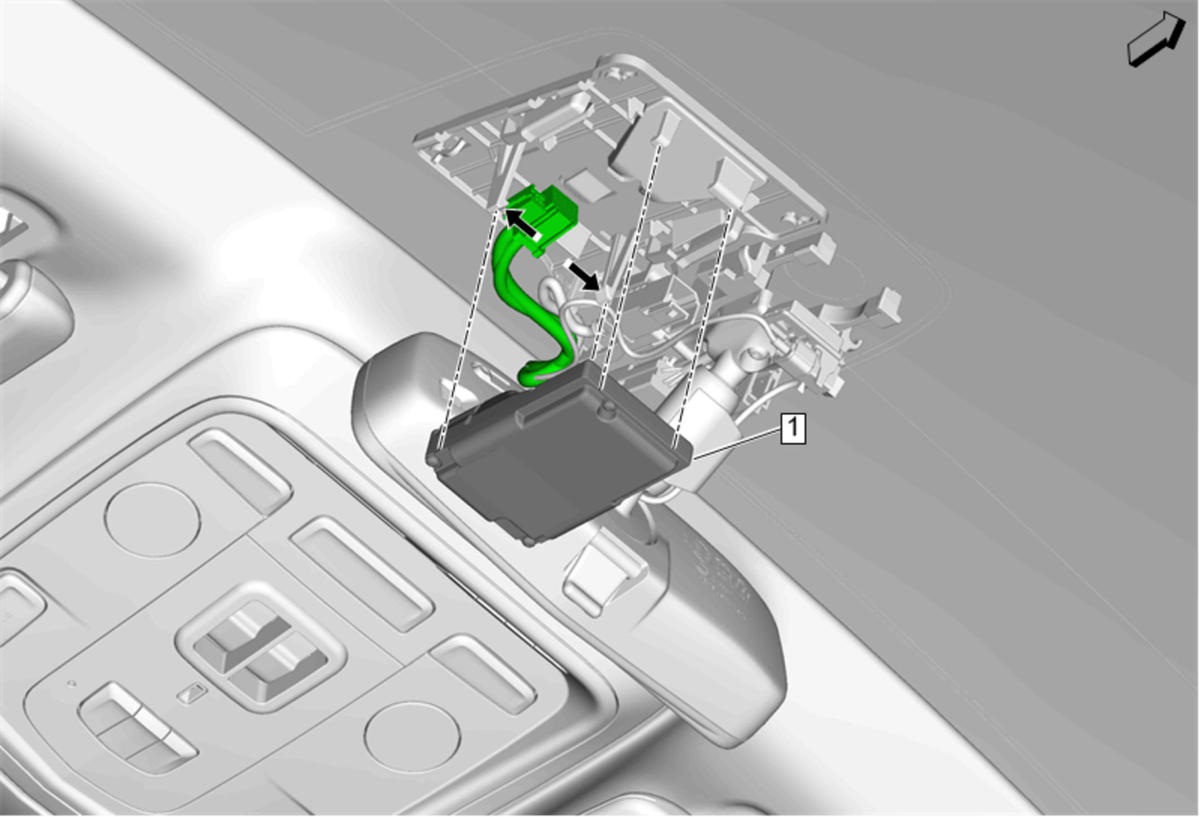

Fig 1: Front View Camera (With UQT)
GM4588168Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Vehicle Performance Camera Bracket Replacement
1 Front View Camera

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connectors.
  3. Perform the necessary programming and setup procedure:Control Module References
