Keyless Entry - Passive, and Keyless Start

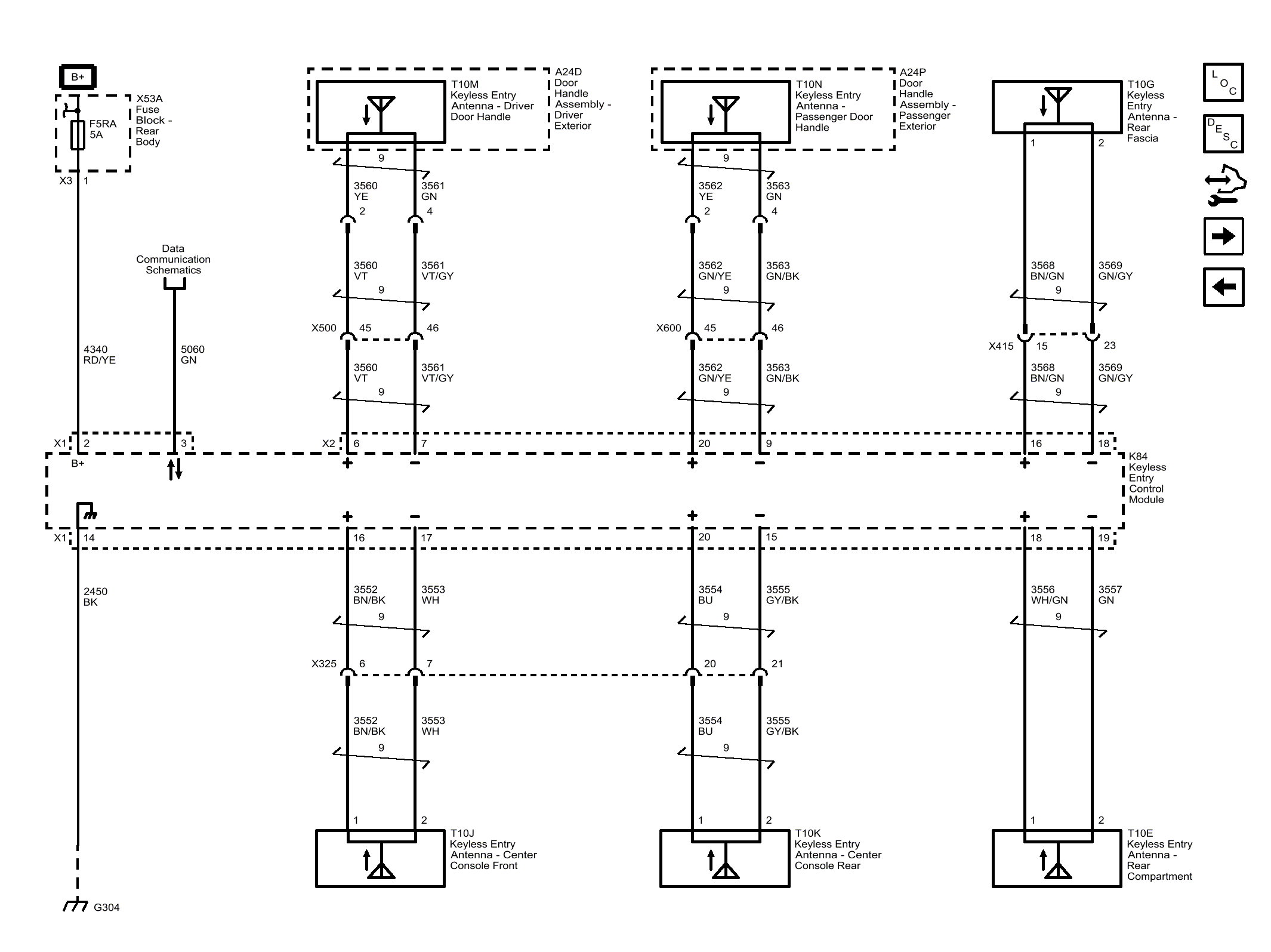

Fig 1: Keyless Entry - Passive, and Keyless Start

GM4493573

Courtesy of GENERAL MOTORS COMPANY
