Installation Procedure

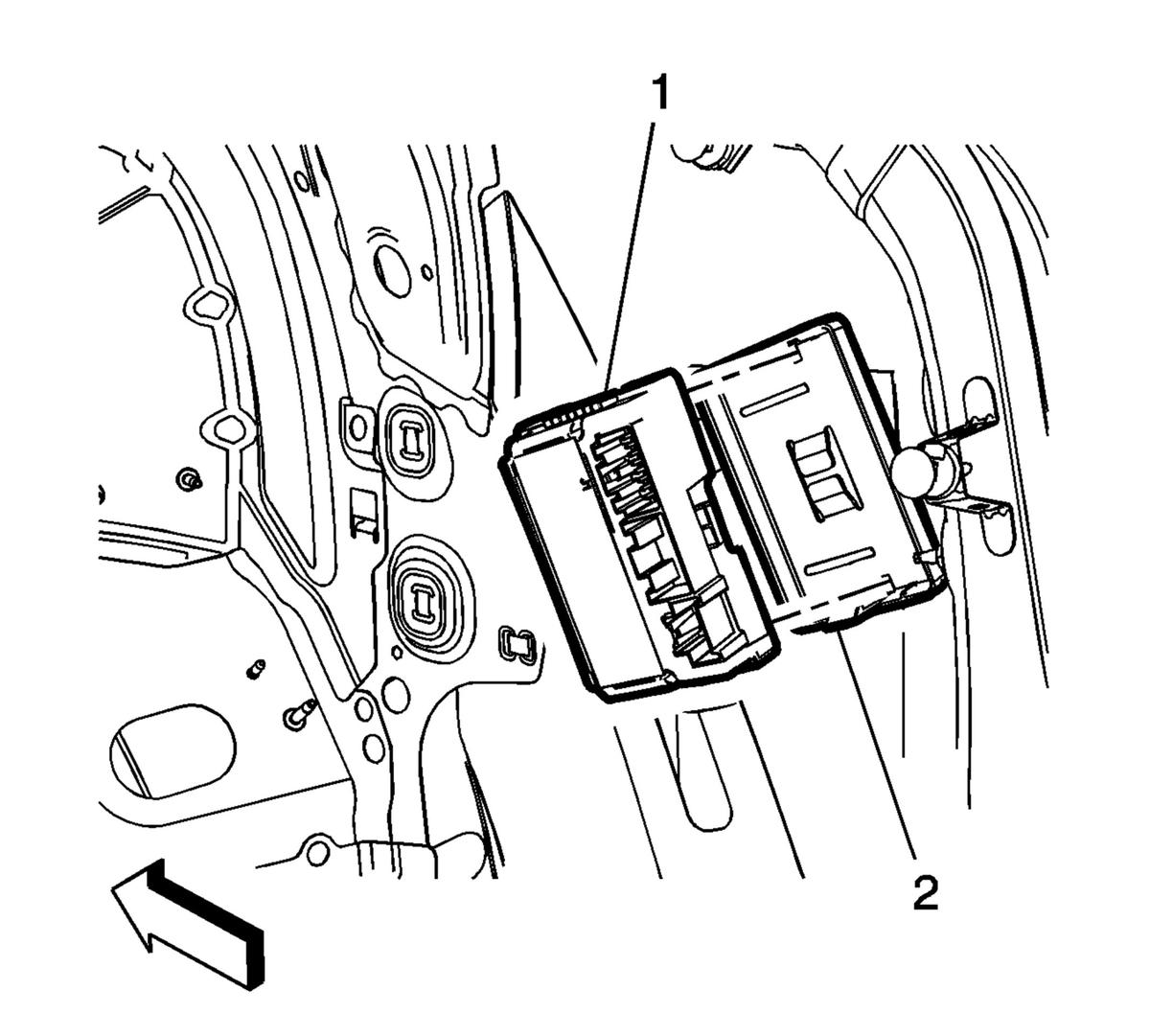

    Fig 1: Transfer Case Shift Control Module
    GM2807158Courtesy of GENERAL MOTORS COMPANY
  1. Install the transfer case shift control module (1) to the bracket.
  2. Install the electrical connectors to the transfer case shift control module.
  3. Install the right rear compartment side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side .
  4. Refer to control module references for programming and setup. Refer to Control Module References .
