Navigation Power, Ground, Serial Data and Signals (IO6+MAW)

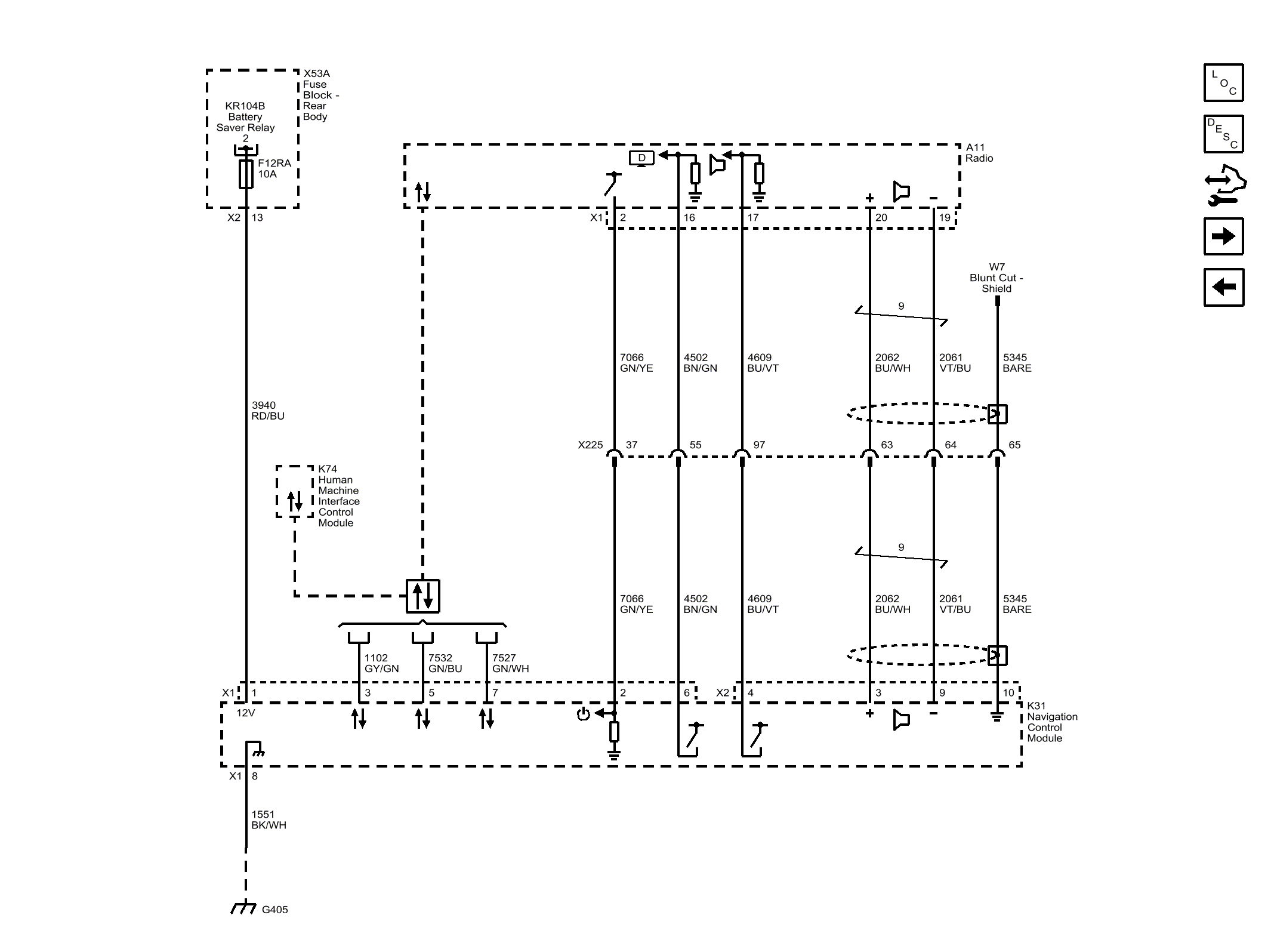

Fig 1: Navigation Power, Ground, Serial Data and Signals (IO6+MAW)

GM4492811

Courtesy of GENERAL MOTORS COMPANY
