Cellular System, Entertainment System, And Navigation System - Schematic And Routing Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO5/IO6)
>>
Media Disc Player Power, Ground and Serial Data (WCN)
Media Disc Player Power, Ground and Serial Data (WCN)

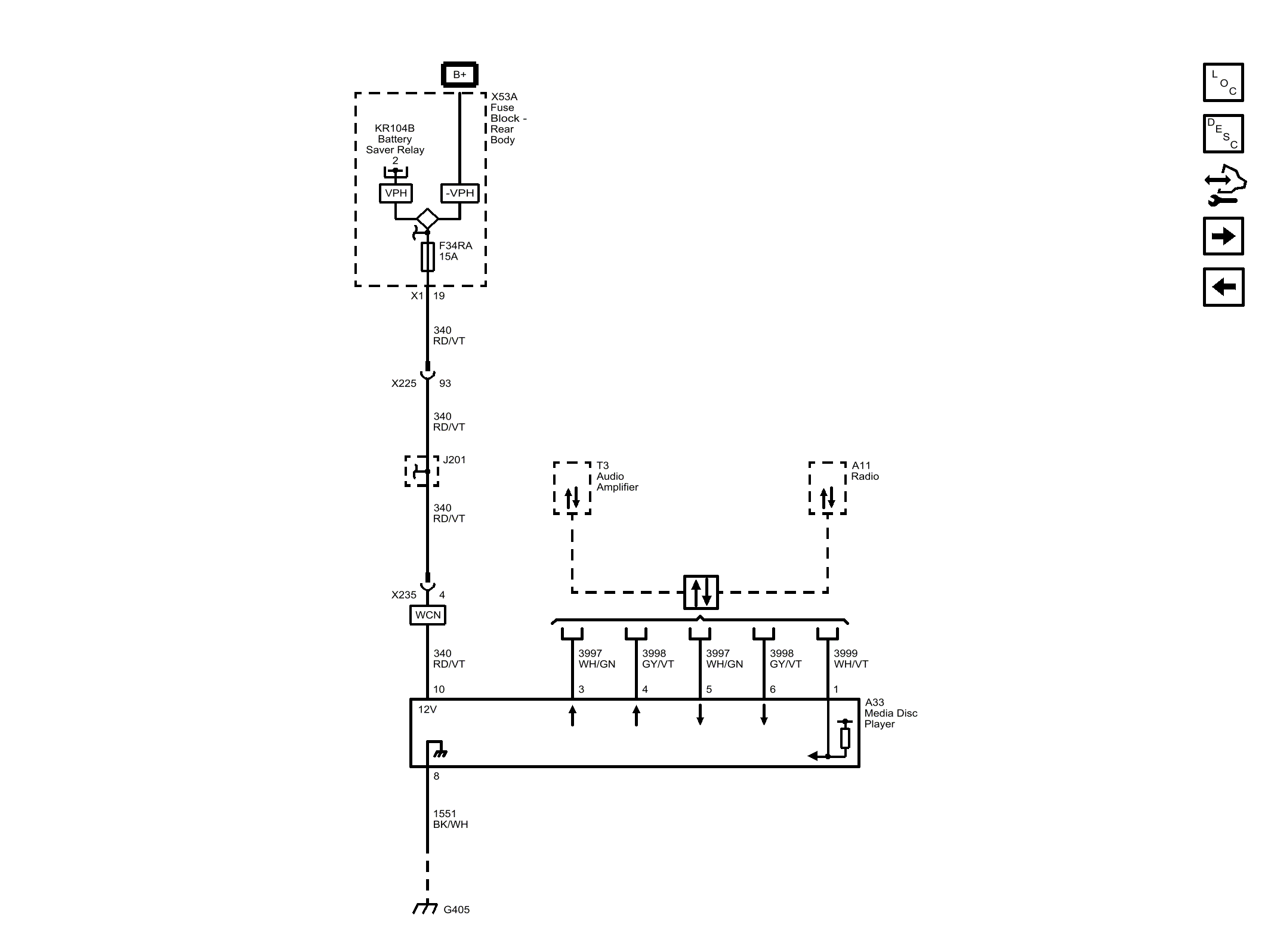

Fig 1: Media Disc Player Power, Ground and Serial Data (WCN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
