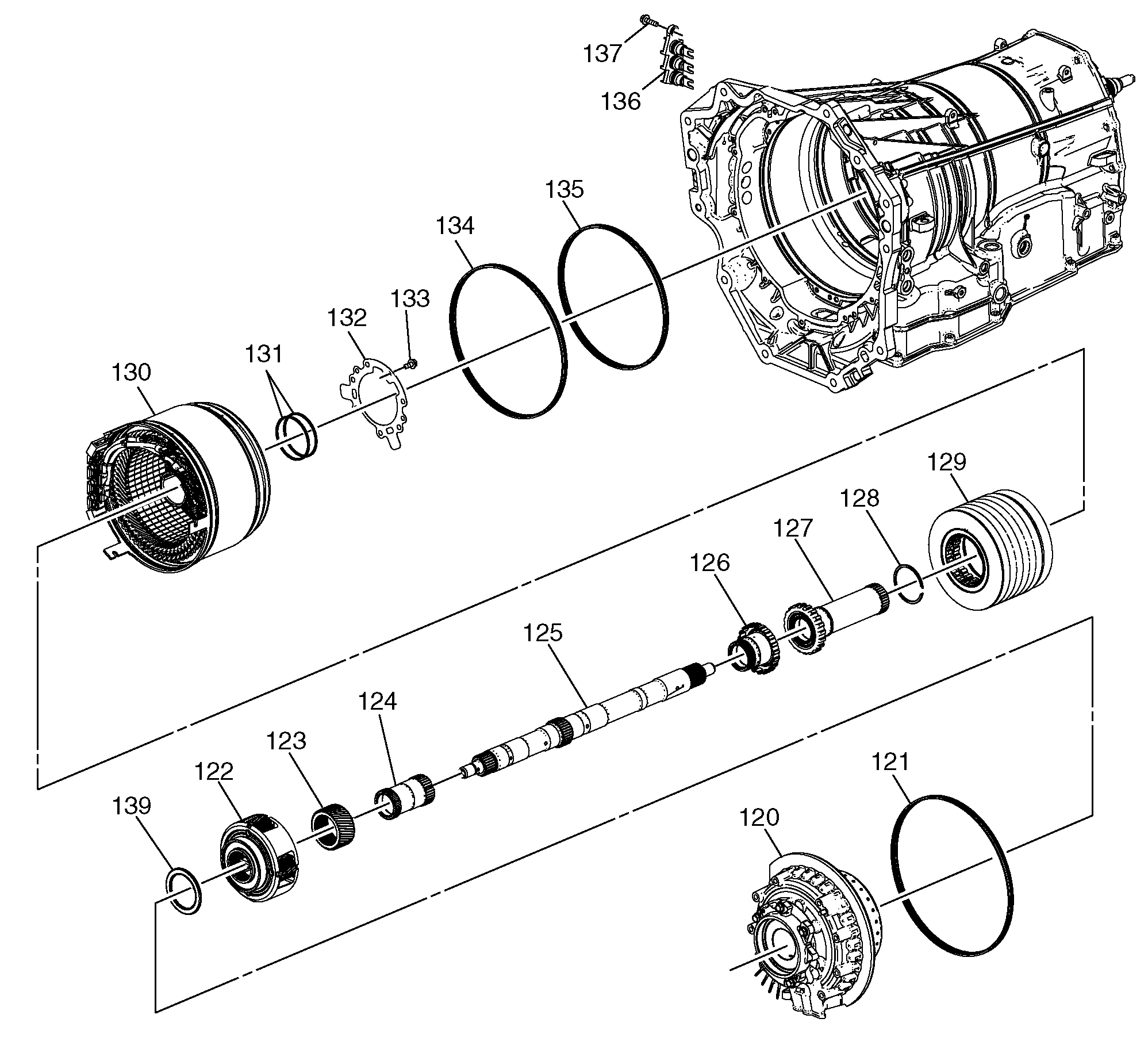

| 120 |
Variable 1-2-3-4 and 1-2-3 Clutch |
| 121 |
Clutch Housing Seal |
| 122 |
Sun Gear Carrier- Position 2 |
| 123 |
Sun Gear- Position 2 |
| 124 |
Variable 2-3 and 1-2-3 Clutch Shaft |
| 125 |
Main Shaft |
| 126 |
Sun Gear Shaft |
| 127 |
Variable 3-4 and 2-3 Clutch Shaft |
| 128 |
Drive Motor Generator Rotor Bearing Retaining Ring |
| 129 |
Drive Motor Rotor- Position 2 |
| 130 |
Drive Motor- Position 2 |
| 131 |
Variable 3-4 and 2-3 Clutch Housing Fluid Seal Ring [2x] |
| 132 |
Variable 3-4 and 2-3 Clutch Housing Fluid Passage Hub Gasket |
| 133 |
Automatic Transmission Case Bolt [7x] |
| 134 |
Drive Motor Stator Housing Front Seal - Position 2 |
| 135 |
Drive Motor Stator Housing Rear Seal - Position 2 |
| 136 |
Wiring Harness Connector |
| 137 |
Wiring Harness Connector Bolt |
| 139 |
Variable 2-3 and 1-2-3 Clutch Hub Thrust Bearing |
