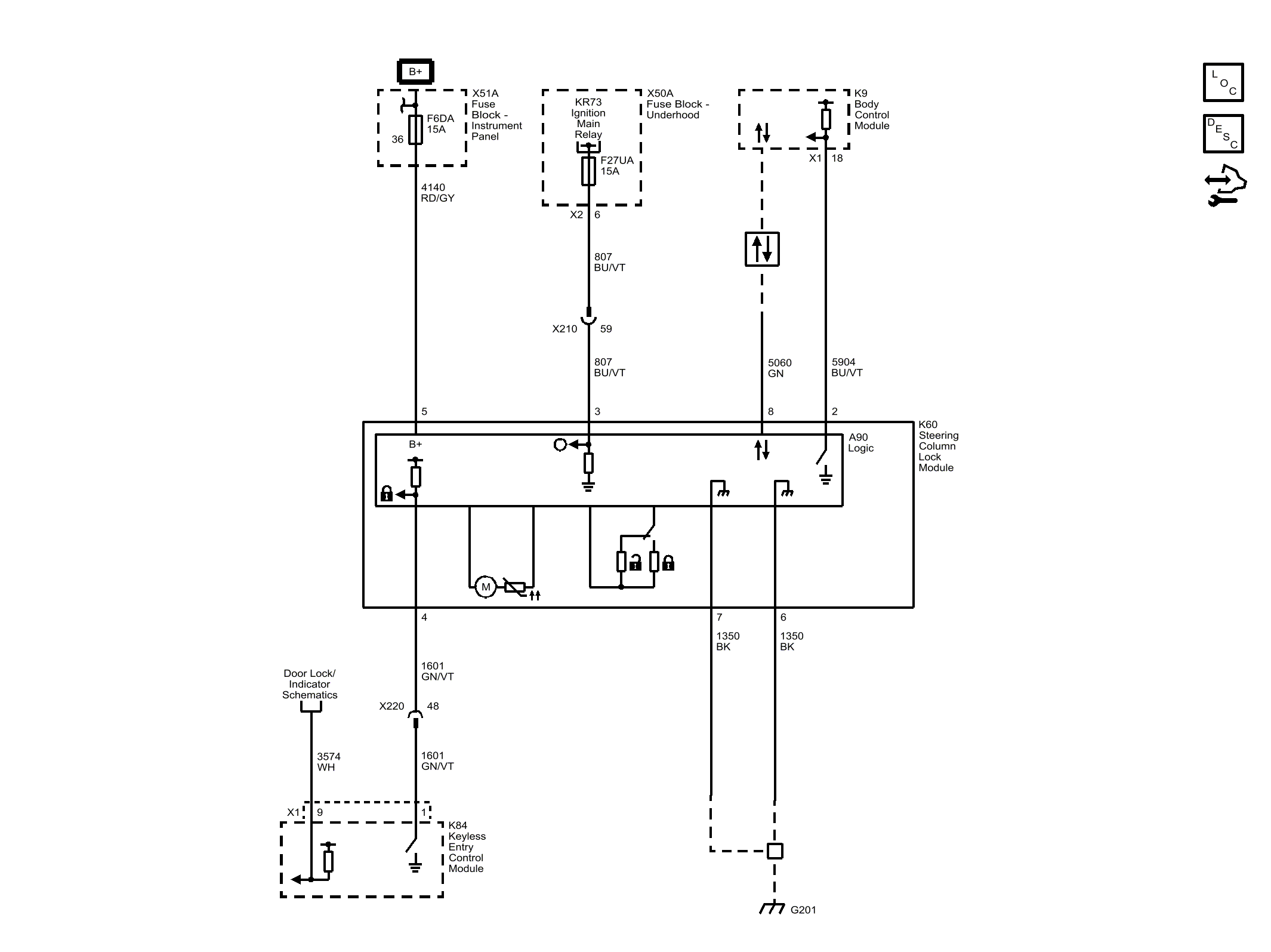

Home >> Cadillac >> 2017 >> CT6 Plug-In >> Repair and Diagnosis >> Steering >> Steering Wheel And Steering Column >> Schematic Wiring Diagrams >> Column Lock Wiring Schematics >> Steering Column Lock (ULS)
