Steering Column Tilt Wheel and Telescope Control Module Replacement

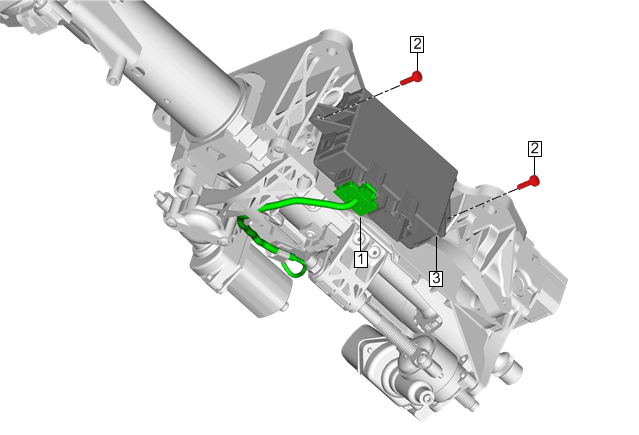

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Column Replacement |
|
| 1 | Steering Column Tilt and Telescope Wheel Actuator Motor Harness Procedure Disconnect the electrical connector. |
| 2 | Steering Column Tilt Wheel and Telescope Control Module Bolt [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 3 N.m (27 lb in) |
| 3 | Steering Column Tilt Wheel and Telescope Control Module Procedure Program the steering column tilt wheel and telescope control module. Refer to Control Module References |
