Engine Components - Right Front (LTG with HP9)

Engine Components - Right Front (LTG with HP9)

Items
1. K71 Transmission Control Module K71 Transmission Control Module (HP9)K71 Transmission Control Module (KL9)

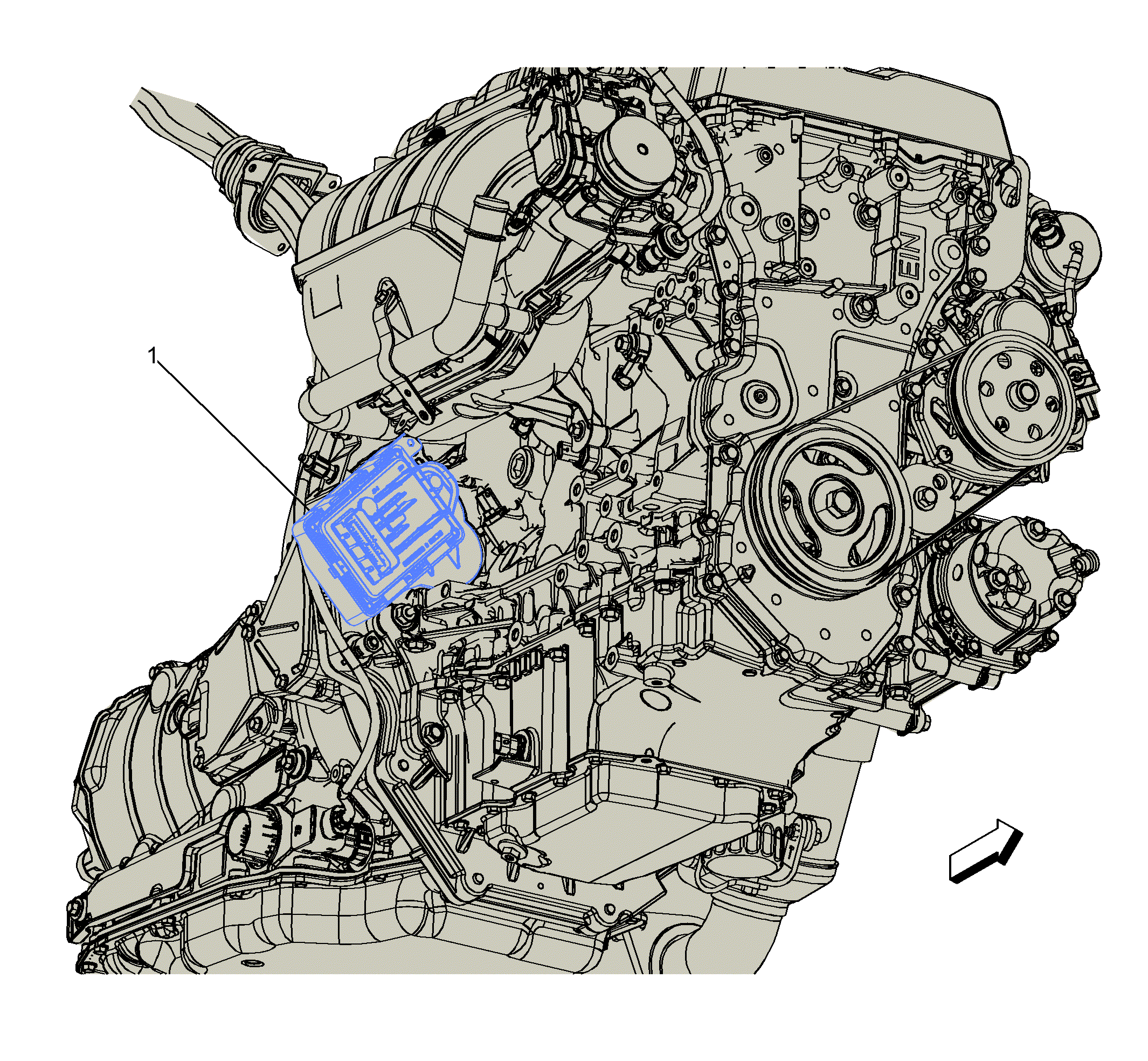

Fig 1: Engine Components - Right Front (LTG with HP9)
GM4316039Courtesy of GENERAL MOTORS COMPANY
