Transfer Case Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

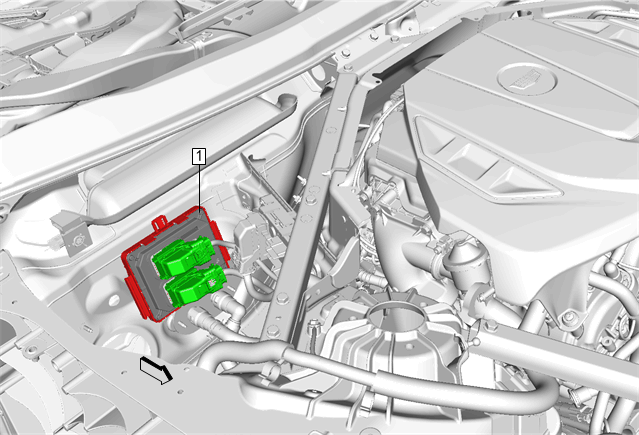

Fig 1: Transfer Case Control Module

GM4245203

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Access Hole Cover Replacement

1

Transfer Case Control Module

Procedure

Disconnect the electrical connectors.
Remove the module from the module bracket by releasing the retaining tabs.
After replacing the transfer case control module, record the clutch calibration identification number. Transfer Case Identification
Perform the range actuator learn procedure. Range Actuator Learn
Program the transmission control module, if replaced. Control Module References
