K85 Passenger Presence Module
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

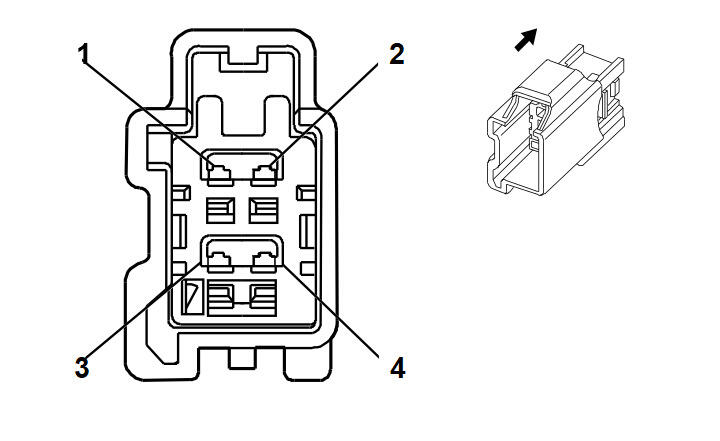

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 7282-6449-40
- Service Connector: 19149531
- Description: 4-Way M Kaizen YESC Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
RD/WH |
2040 |
Battery Positive Voltage |
I |
- |
| 4 |
0.35 |
BK |
2050 |
Ground |
I |
- |
