K43 Power Steering Control Module X3
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

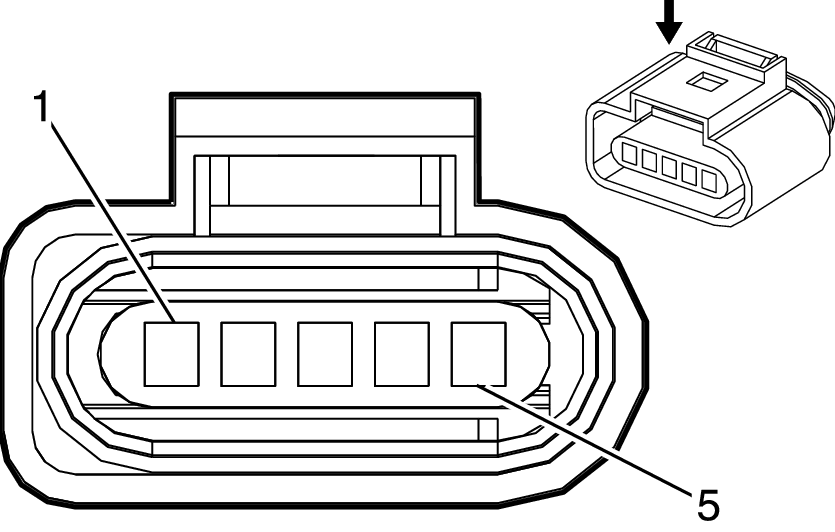

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13607238
- Service Connector: 13583122
- Description: 5-Way F Micro-Timer II Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/D-BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 2 |
0.5 |
D-BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 3 |
0.5 |
D-BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 4 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 5 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
