K33 HVAC Control Module X1
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

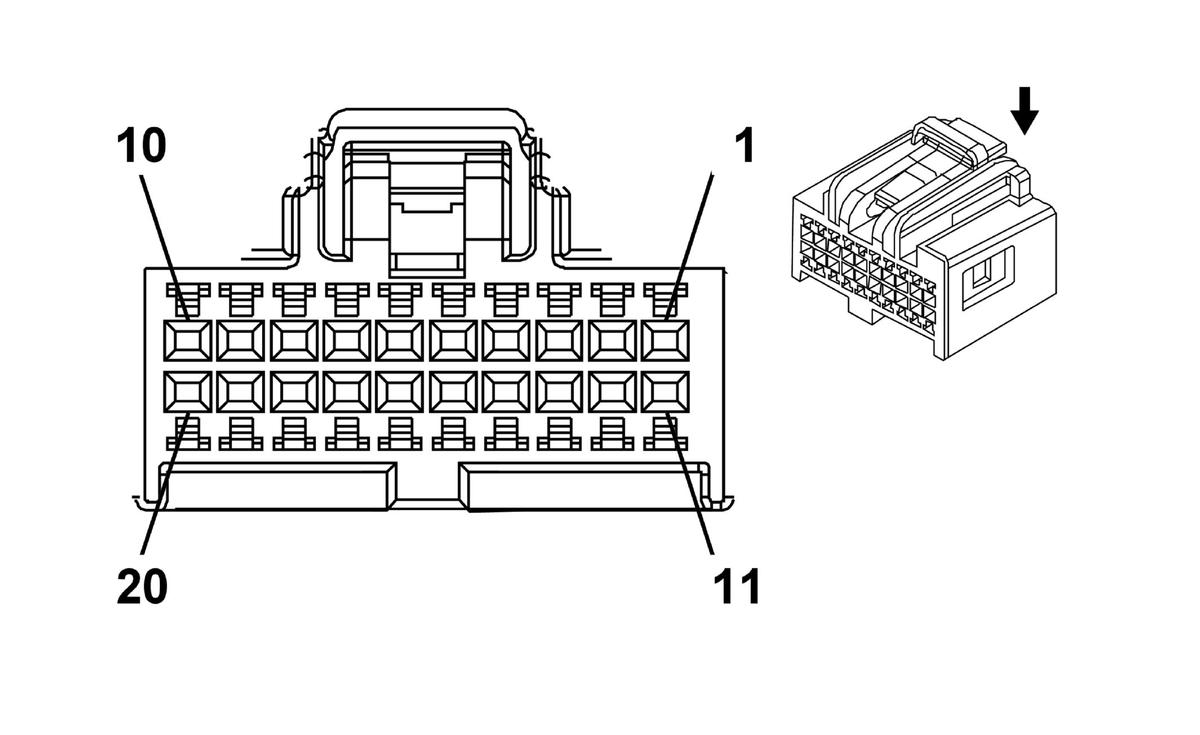

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13782502
- Service Connector: 13580739
- Description: 20-Way F Micro-HVT Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575549 |
J-35616-16 (LT GN) |
J-38125-559 |
15445905 |
Delphi 23 |
J |
J |
| II |
13579949 |
J-35616-16 (LT GN) |
J-38125-559 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GY/L-GN |
7565 |
Windscreen Temp Sensor Signal |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.13 |
D-BU |
734 |
Inside Air Temperature Sensor Signal |
II |
- |
| 5 |
0.35 |
YE/D-BU |
3197 |
Humidity Temperature Sensor Signal |
I |
- |
| 6 |
0.35 |
YE/RD |
597 |
5V Reference |
I |
- |
| 7 |
0.35 |
BK/D-BU |
7566 |
Humidity/Windscreen Temp Sensor Low Reference |
I |
- |
| 8 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
GY/D-BU |
7564 |
Humidity Sensor Signal |
I |
- |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.13 |
YE |
1783 |
Twilight Sentinel Delay Signal |
II |
- |
| 15 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BN |
518 |
Lower Left Air Temperature Sensor Signal |
I |
- |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
