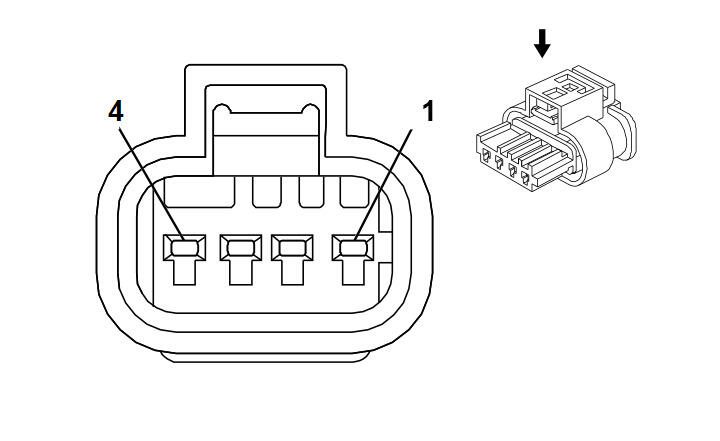

K125 Dual Battery Control Module
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13781047
- Service Connector: 13581092
- Description: 4-Way F 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/D-BU |
4161 |
Transmission Auxiliary Pump Relay Control |
I |
- |
| 2 |
0.5 |
VT/GY |
6386 |
Starter Enable Relay (PPEI 3) Control |
I |
- |
| 3 |
0.5 |
VT/BK |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
1 |
BK |
150 |
Ground |
I |
- |
