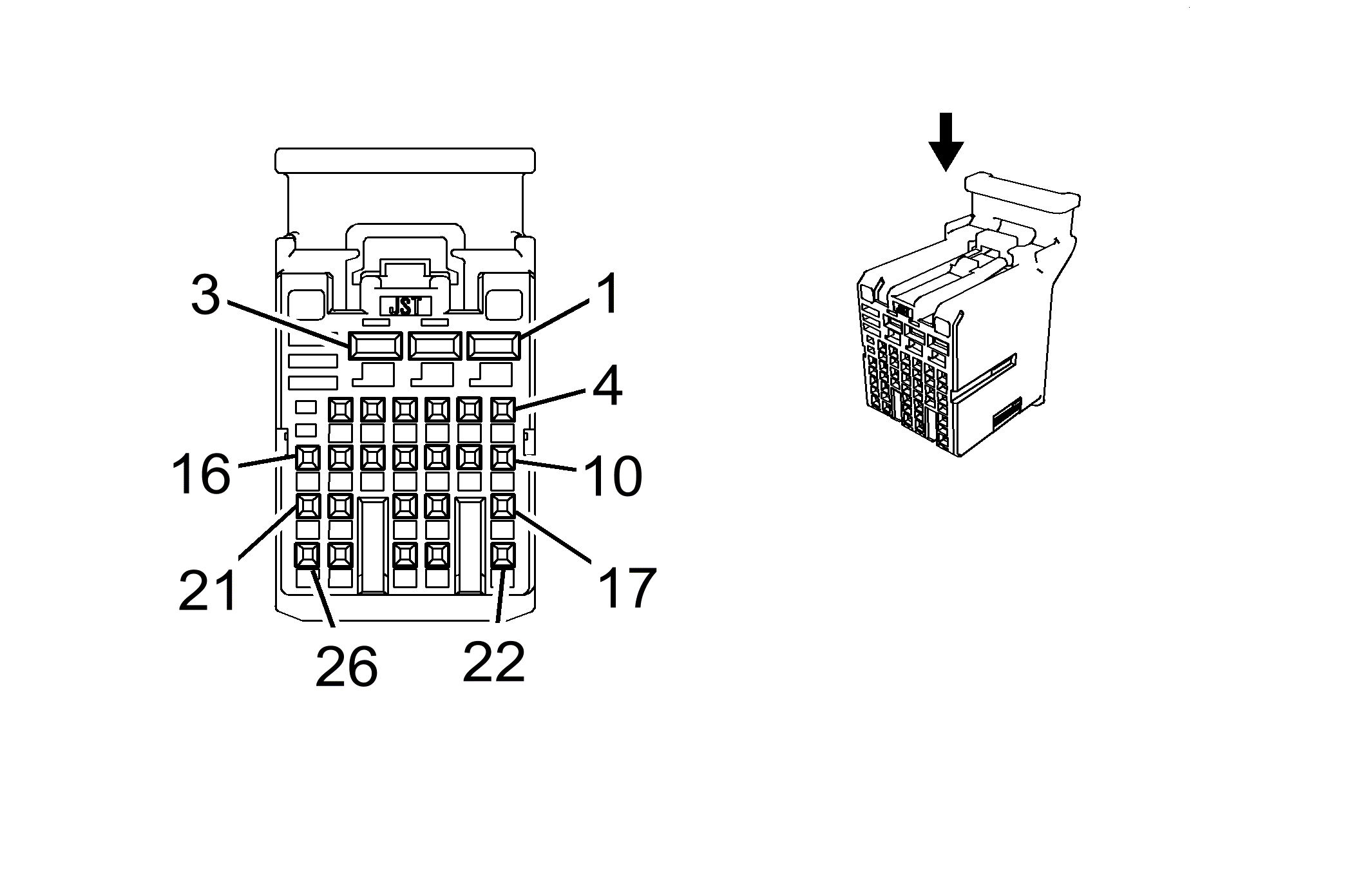

K9 Body Control Module X7
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13631050
- Service Connector: 13576642
- Description: 26-Way F 0.64, 2.8 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| II |
13575871 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| III |
13579954 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY |
157 |
Interior Lamp Control |
II |
- |
| 2 |
0.75 |
WH/BN |
6815 |
Inadvertent Power Control |
II |
- |
| 3 |
0.75 |
D-GN/WH |
24 |
Backup Lamp Control |
II |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.13 |
PU |
7553 |
Park Lock Solenoid Control |
III |
- |
| 7 |
0.5 |
D-GN/GY |
737 |
Rear Compartment Lid Lamp Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 10 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.13 |
GY |
156 |
Courtesy Lamp Switch Signal |
III |
- |
| 20 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
