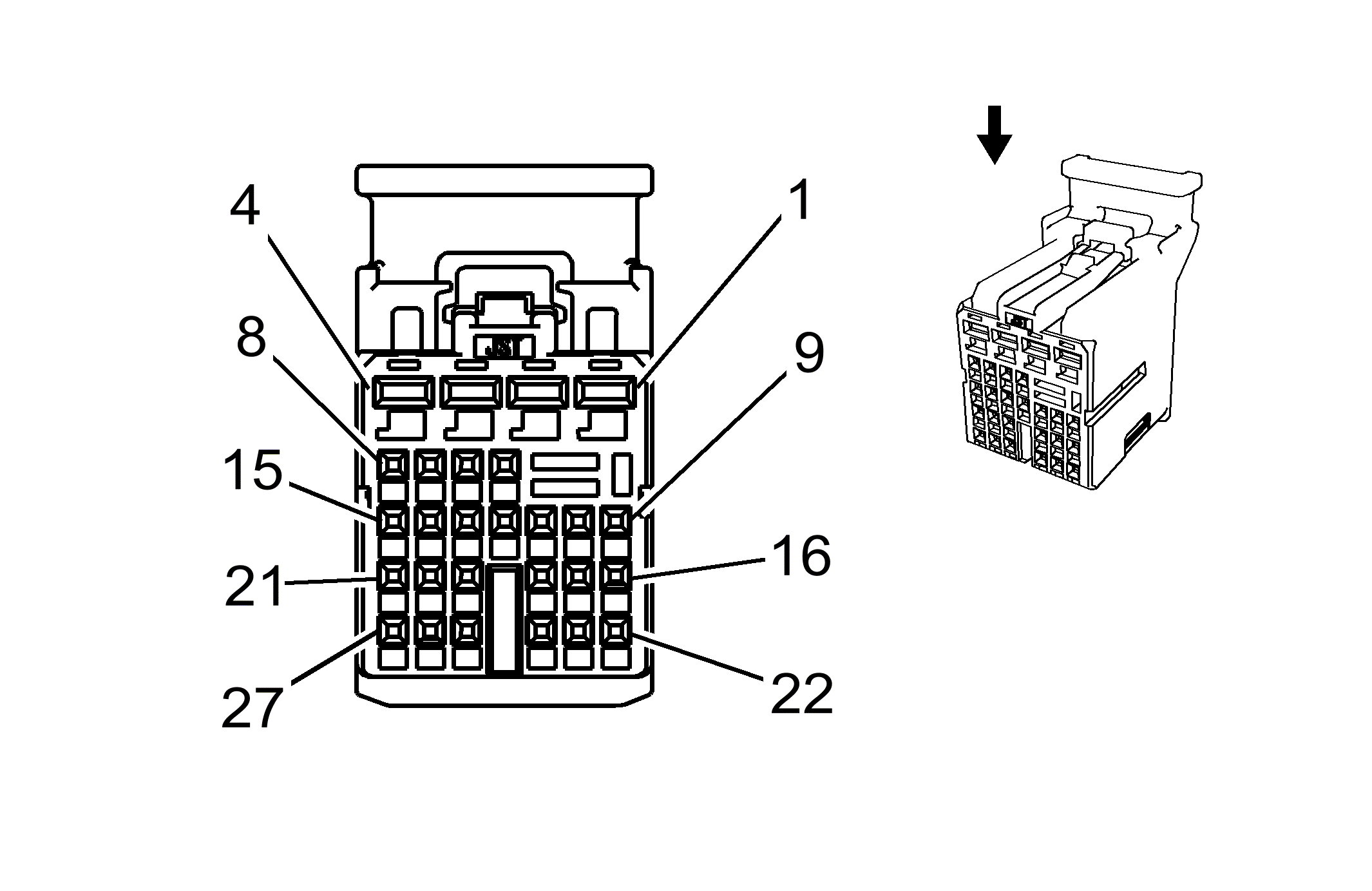

K9 Body Control Module X6

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 13631052
Service Connector: 13576638
Description: 27-Way F 0.64, 2.8 Series (PK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	C	A
III	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A
IV	13579954	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	GY	5911	Door Lock Actuator Lock Control 2	III	-
2	1.5	GY	295	Door Lock Actuator Lock Control	II	-
3	1.5	BK	2150	Ground	II	-
4	1.5	BN/YE	294	Door Lock Actuator Unlock Control	II	-
5	0.5	VT/GY	1303	Lift Gate Ajar Switch Signal 1	I	-
6	-	-	-	Not Occupied	-	-
7	0.35	WH/YE	7557	LED Ambient Lighting Control 1	I	-
8	-	-	-	Not Occupied	-	-
9	0.35	L-GN/D-BU	6133	Local Interconnect Network Serial Data Bus 2	I	-
10	0.35	L-GN/YE	6134	Local Interconnect Network Serial Data Bus 3	I	-
11 - 14	-	-	-	Not Occupied	-	-
15	0.35	YE/D-BU	5797	Rear Closure Handle Switch Open Signal	I	-
16	0.35	L-GN/BN	6132	Local Interconnect Network Serial Data Bus 1	I	-
17 - 21	-	-	-	Not Occupied	-	-
22	0.13	BN	245	Passenger Door Lock Switch Unlock Control	IV	-
23	-	-	-	Not Occupied	-	-
24	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
25	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
26	-	-	-	Not Occupied	-	-
27	0.13	YE	244	Passenger Door Lock Switch Lock Control	IV	-
