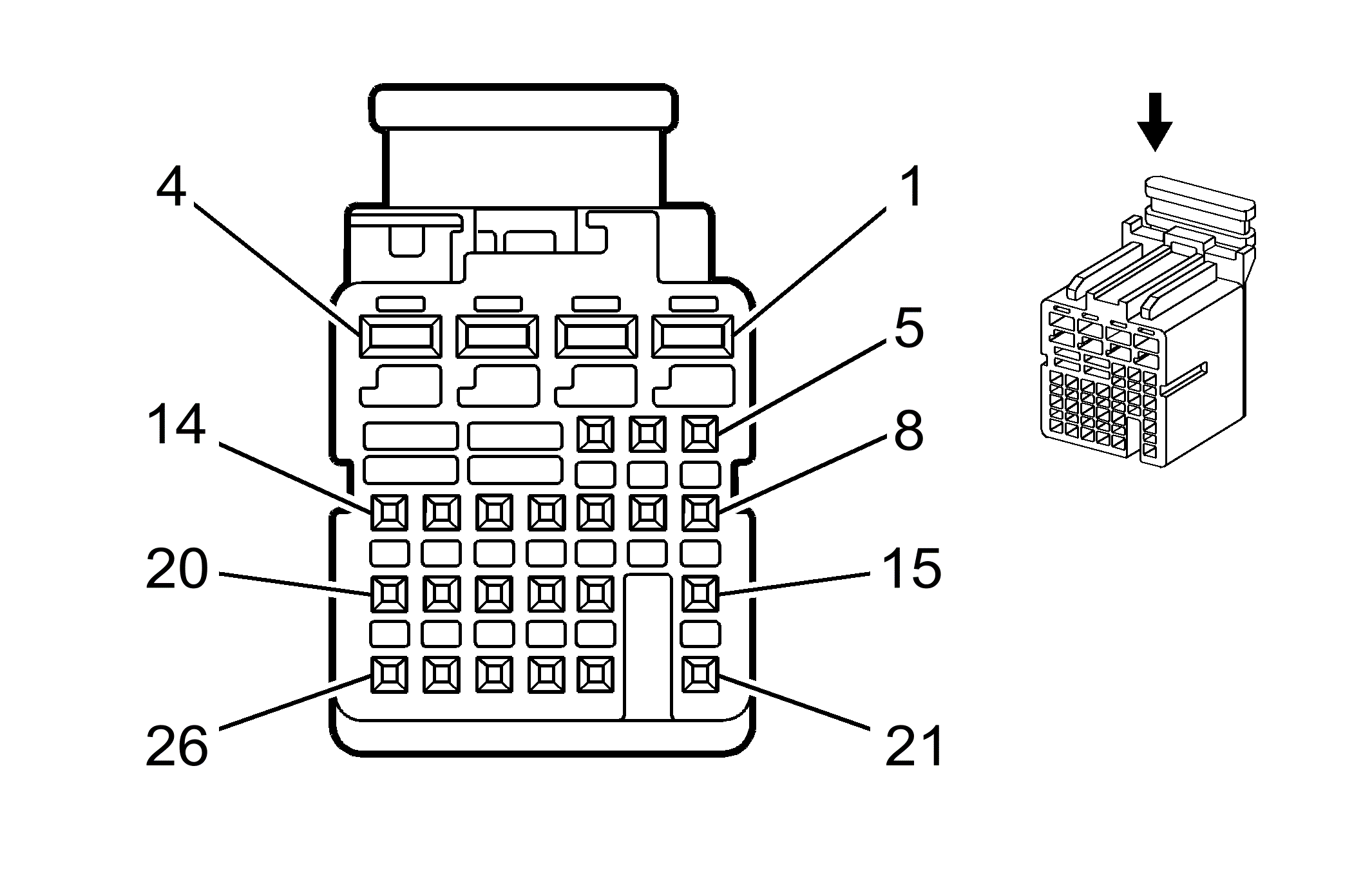

K9 Body Control Module X5
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13631049
- Service Connector: 13576641
- Description: 26-Way F 0.64, 2.8 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| II |
13575871 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
D-BU/WH |
1334 |
Left Rear Turn Signal Lamp Control |
II |
- |
| 2 |
0.5 |
D-BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
II |
- |
| 3 |
0.75 |
RD/D-GN |
3840 |
Battery Positive Voltage |
II |
- |
| 4 |
0.75 |
RD/WH |
3440 |
Battery Positive Voltage |
II |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
WH/YE |
7541 |
Right Rear Stop Lamp Control |
I |
- |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
I |
- |
| 12 |
0.35 |
WH/D-BU |
6311 |
Cruise/ETC/TCC Brake Signal |
I |
- |
| 13 |
0.35 |
BN/YE |
1970 |
Headlamp Low Beam Relay Control |
I |
- |
| 14 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.5 |
BN/VT |
1969 |
Headlamp High Beam Relay Control |
I |
- |
| 19 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
I |
- |
| 20 |
0.35 |
BN/WH |
1317 |
Fog Lamp Relay Control |
I |
- |
| 21 - 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
WH/VT |
860 |
Front Windshield Wiper Switch High Signal |
I |
- |
| 25 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
