K9 Body Control Module X4
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

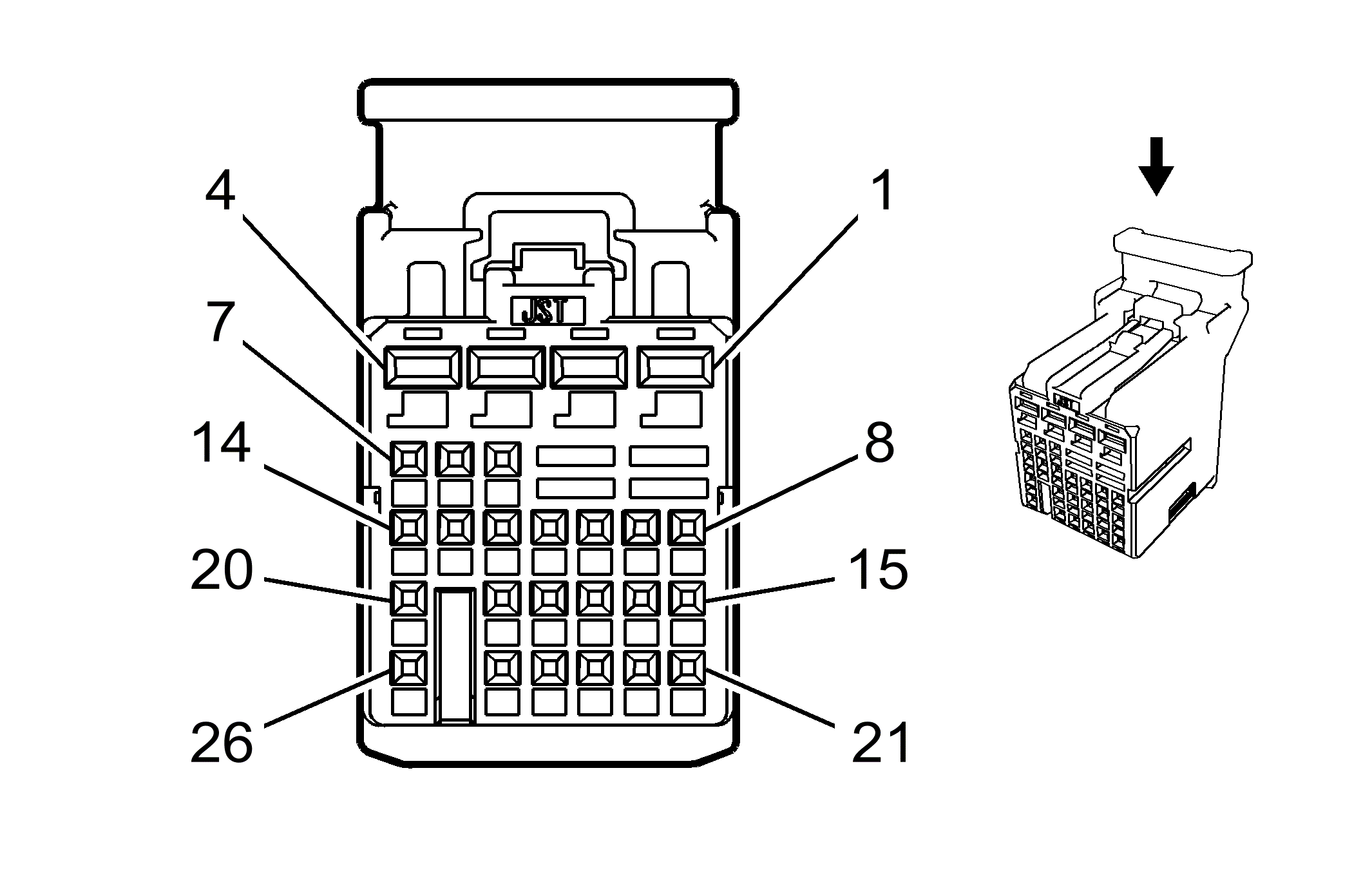

Connector Part Information
- Harness Type: Body
- OEM Connector: 13631048
- Service Connector: 13576640
- Description: 26-Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| II |
13575871 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| III |
13579954 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE |
312 |
Right Headlamp Low Beam Control |
II |
- |
| 2 |
0.75 |
YE |
712 |
Left Headlamp Low Beam Control |
II |
- |
| 3 |
0.5 |
D-GN/VT |
1315 |
Right Front Turn Signal Lamp Control |
II |
- |
| 4 |
0.75 |
D-BU/VT |
1335 |
Right Rear Turn Signal Lamp Control |
II |
- |
| 5 |
0.5 |
GY/BN |
309 |
Right Park Lamp Control |
I |
- |
| 6 |
0.5 |
VT/GY |
709 |
Left Park Lamp Control |
I |
- |
| 7 |
0.5 |
GY/YE |
7542 |
Left Rear Stop Lamp Control |
I |
- |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| 12 |
0.13 |
GY |
755 |
RAP Relay Coil Control |
III |
- |
| 13 |
0.5 |
D-GN/YE |
6846 |
Rear License Lamp Control |
I |
- |
| 14 |
0.35 |
BN/GY |
2268 |
Windshield Washer Relay Control |
I |
- |
| 15 |
0.35 |
L-GN/VT |
5199 |
Run/Crank Relay Coil Control |
I |
- |
| 16 |
0.35 |
GY |
91 |
Windshield Wiper Motor Relay Coil Control |
I |
- |
| 17 |
0.35 |
BN/L-GN |
196 |
Windshield Wiper Motor Park Switch Signal |
I |
- |
| 18 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.5 |
RD/YE |
2340 |
Battery Positive Voltage |
I |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 23 |
0.35 |
WH/D-BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 24 |
0.35 |
BN/L-GN |
109 |
Hood Ajar Switch Signal |
I |
- |
| 25 |
- |
- |
- |
Not Occupied |
- |
- |
| 26 |
0.5 |
BK |
150 |
Ground |
I |
- |
