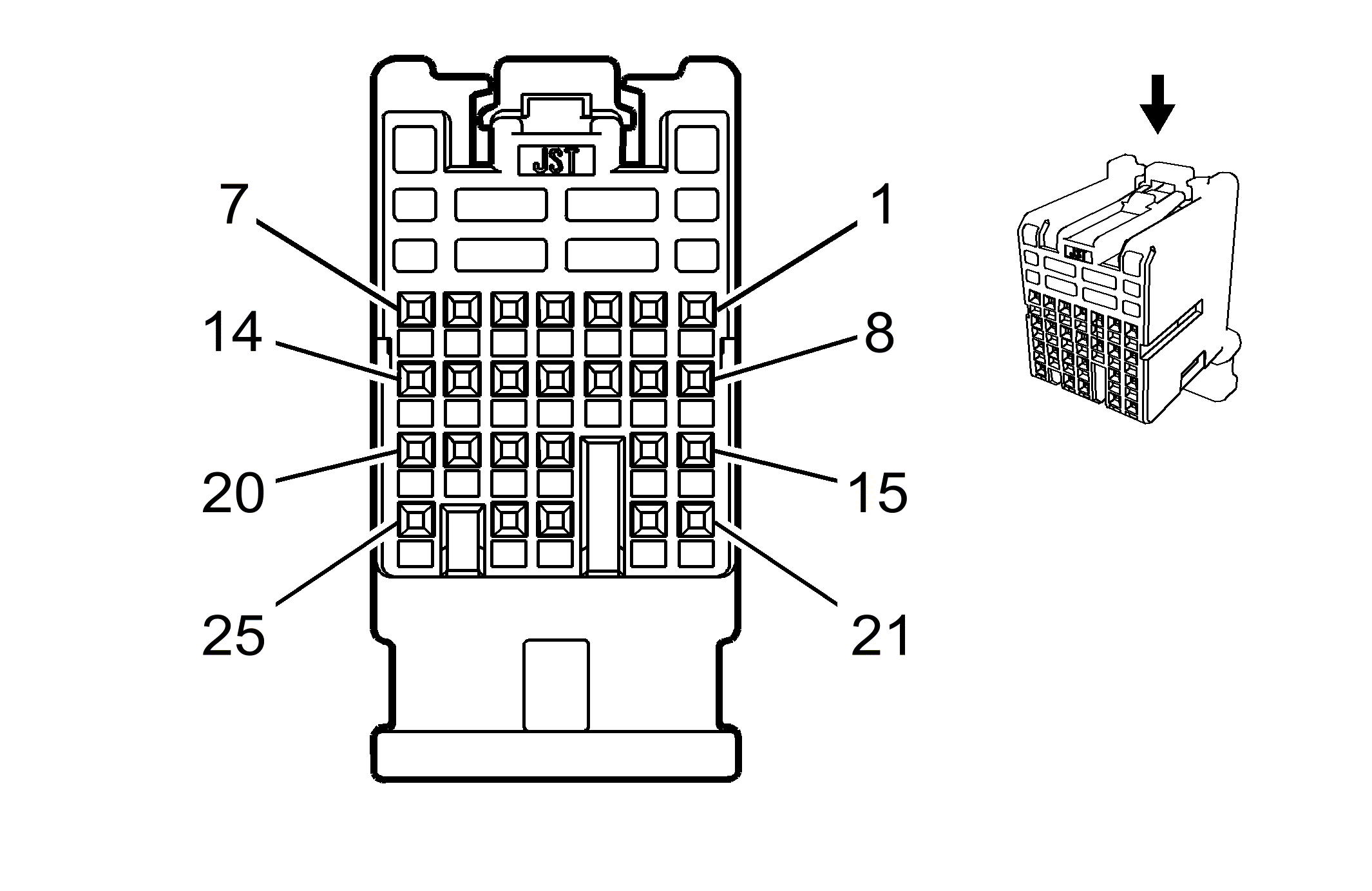

K9 Body Control Module X3
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13631047
- Service Connector: 13576643
- Description: 25-Way F 64 Series (L-GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| II |
13579954 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.13 |
L-GN |
3277 |
Vehicle Anti-Theft System Immobilizer Low Reference |
II |
- |
| 2 |
0.35 |
L-GN/VT |
7533 |
Local Interconnect Network Serial Data Bus 11 |
I |
- |
| 3 |
0.13 |
GY |
3276 |
Vehicle Anti-Theft System Immobilizer Control |
II |
- |
| 4 |
0.35 |
YE |
7556 |
Lighting Control Switch Reference |
I |
- |
| 5 |
0.35 |
YE |
4 |
Accessory Ignition Voltage |
I |
- |
| 6 |
0.35 |
VT |
3 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 7 |
0.35 |
VT/YE |
143 |
Accessory Ignition Voltage |
I |
- |
| 8 |
0.35 |
L-GN |
6818 |
Steering Wheel Resistor Ladder Signal 1 |
I |
- |
| 9 |
0.35 |
BN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 10 |
0.13 |
BK |
6009 |
Windshield Wiper Switch Low Reference |
II |
- |
| 11 |
0.13 |
WH |
524 |
Headlamp Dimmer Switch High Beam Signal |
II |
- |
| 12 |
0.13 |
WH |
663 |
Hazard Switch Left Turn Signal |
II |
- |
| 13 |
0.13 |
YE |
1714 |
Windshield Wiper Switch Low Signal |
II |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
WH |
1020 |
Off/Run/Crank Ignition Voltage |
I |
- |
| 16 |
0.35 |
GY/BK |
9153 |
Ground |
I |
- |
| 17 |
0.13 |
YE |
307 |
Headlamp Switch Flash To Pass Signal |
II |
- |
| 18 |
0.35 |
L-GN |
3287 |
Horn Switch Signal |
I |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.13 |
GY |
1715 |
Windshield Wiper Switch High Signal |
II |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
BN |
1073 |
Ignition Key Resistor Signal |
I |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.13 |
PU |
664 |
Hazard Switch Right Turn Signal |
II |
- |
| 25 |
0.13 |
WH |
94 |
Windshield Washer Switch Signal |
II |
- |
