K9 Body Control Module X2

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

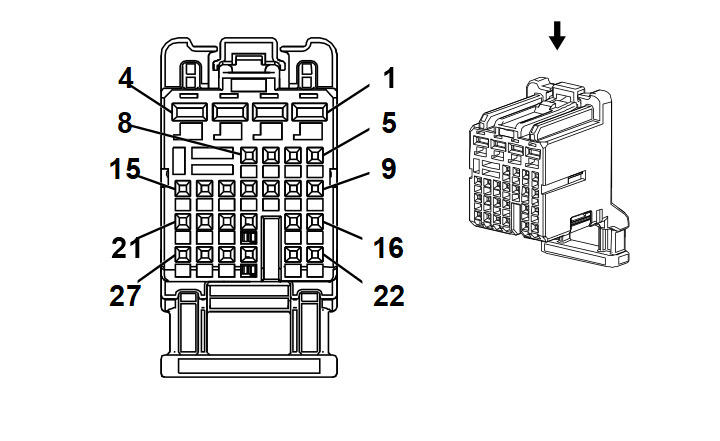

GM2180237
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13631046
  • Service Connector: 13576637
  • Description: 27-Way F 0.64, 2.8 Series (L-BU)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575870 J-35616-64B (LT BU) J-38125-12A SNAC3-A021T-M0.64 Delphi 20 J J
II 13575871 J-35616-35 (VT) J-38125-12A SNAC-A061T-M2.8 Delphi 20 C A
III 13575871 J-35616-35 (VT) J-38125-12A SNAC-A061T-M2.8 Delphi 20 E A
IV 13579954 J-35616-64B (LT BU) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 RD/WH 2740 Battery Positive Voltage III -
2 0.75 BK 1650 Ground III -
3 0.75 RD/BN 2940 Battery Positive Voltage III -
4 1.5 RD/VT 4040 Battery Positive Voltage II -
5 - 6 - - - Not Occupied - -
7 0.5 D-BU 5361 Brake Apply Sensor Signal I -
8 0.35 YE 6817 LED Backlight Dimming Control I -
9 - - - Not Occupied - -
10 0.13 WH 278 Ambient Light Sensor Signal IV -
11 0.35 YE 5526 Tap Up/Tap Down Switch Signal I -
12 - - - Not Occupied - -
13 0.5 WH 5359 Brake Apply Sensor Control I -
14 0.13 D-BU 1788 Traction Control Switch Signal 1 IV -
15 0.35 WH 781 Driver Door Lock Switch Unlock Signal I -
16 0.35 GY 3273 Remote Function Actuator Low Reference I -
17 - 18 - - - Not Occupied - -
19 0.35 BN 780 Driver Door Lock Switch Lock Signal I -
20 - - - Not Occupied - -
21 0.35 L-GN/GY 6135 Local Interconnect Network Serial Data Bus 4 I -
22 0.35 L-GN 5060 Low Speed GMLAN Serial Data I -
23 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
24 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) 1 I -
25 0.35 GY/WH 3272 Remote Function Actuator Control I -
26 0.35 L-GN/WH 111 Hazard Switch Signal I -
27 0.35 YE/L-GN 3274 Remote Function Actuator Transmit Signal I -
