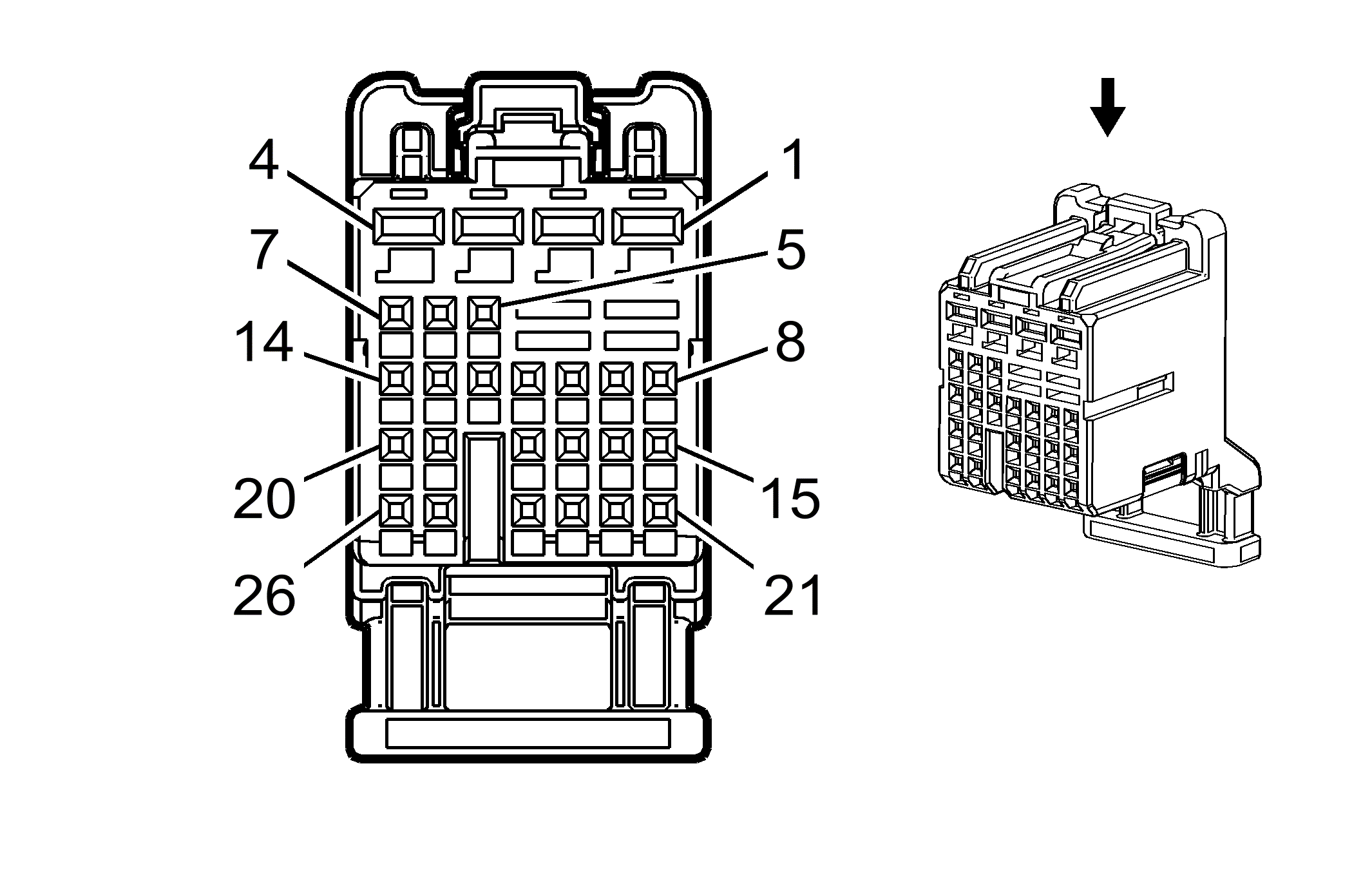

K9 Body Control Module X1
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13631051
- Service Connector: 13576639
- Description: 26-Way F 64 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575870 |
J-35616-64B (LT BU) |
J-38125-12A |
SNAC3-A021T-M0.64 |
Delphi 20 |
J |
J |
| II |
13575871 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| III |
13579954 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
1650 |
Ground |
II |
- |
| 2 |
0.75 |
RD/D-BU |
2540 |
Battery Positive Voltage |
II |
- |
| 3 |
0.75 |
RD/GY |
2140 |
Battery Positive Voltage |
II |
- |
| 4 |
0.75 |
RD/YE |
2240 |
Battery Positive Voltage |
II |
- |
| 5 |
0.13 |
WH |
6816 |
Indicator Dimming Control |
III |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.13 |
WH |
7555 |
Lighting Control Switch Signal |
III |
- |
| 10 |
0.35 |
D-BU/VT |
1134 |
Park Brake Switch Signal |
I |
- |
| 11 |
0.13 |
L-GN |
306 |
Headlamp Switch Headlamps Off Signal Control |
III |
- |
| 12 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
GY/L-GN |
328 |
Interior Lamp Defeat Switch Signal |
I |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.13 |
WH |
103 |
Headlamp Switch On Signal |
III |
- |
| 17 |
0.13 |
GY |
7543 |
Hazard LED Dimming Signal |
III |
- |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.5 |
BN |
5360 |
Brake Apply Sensor Low Reference |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.13 |
GY |
728 |
Security Indicator Control |
III |
- |
| 22 |
0.13 |
GY |
13 |
Headlamp Switch Park Lamp Signal |
III |
- |
| 23 - 25 |
- |
- |
- |
Not Occupied |
- |
- |
| 26 |
0.35 |
D-BU/WH |
3275 |
Remote Function Actuator Receive Signal |
I |
- |
