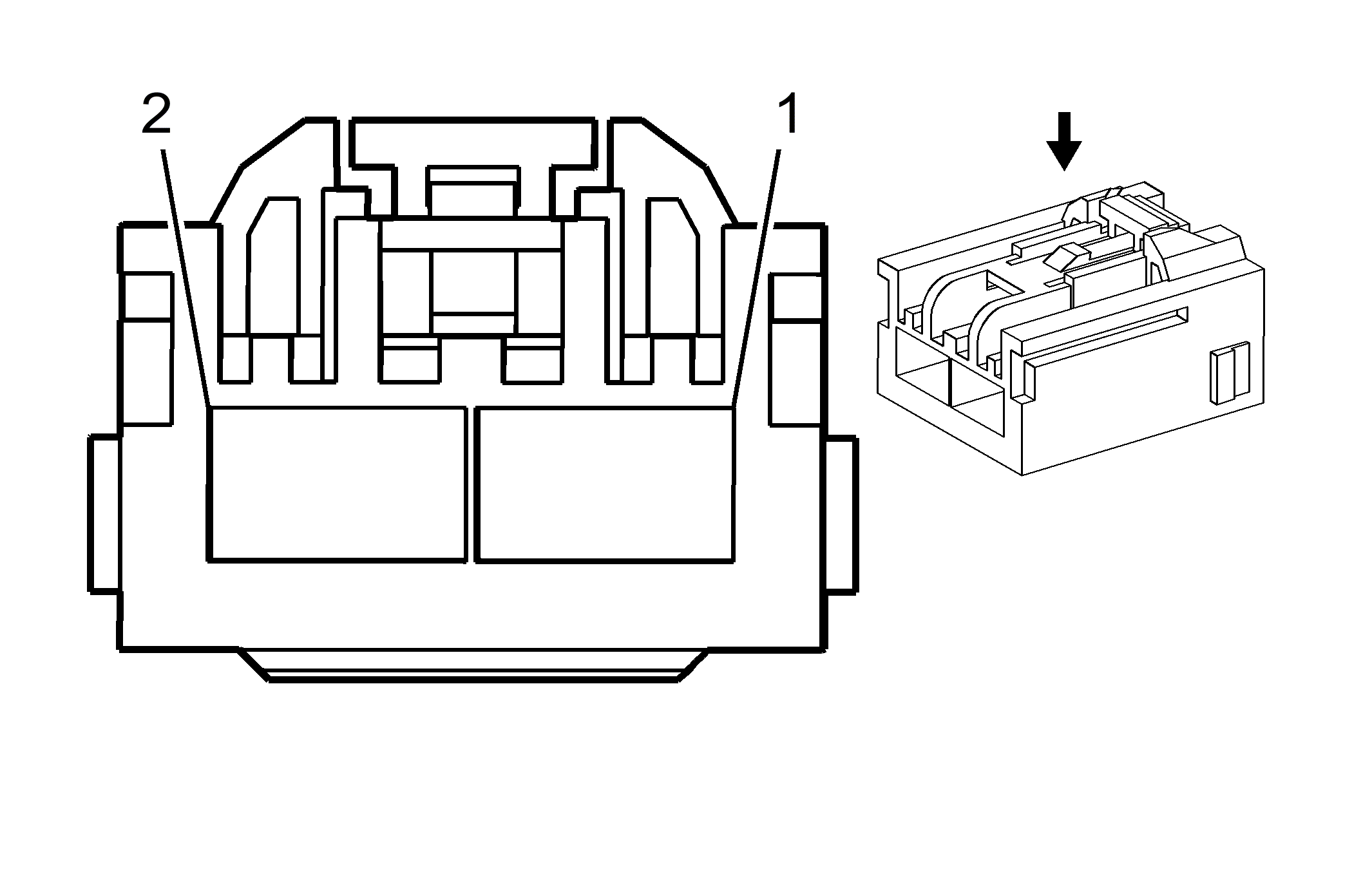

K8 Blower Motor Control Module X2
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: HVAC
- OEM Connector: 10846816
- Service Connector: Not Available
- Description: 2-Way F 6.3 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
J-35616-42 (RD) |
J-38125-11A |
7116-4122 |
2 |
D |
G |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD |
65 |
Blower Motor Supply Voltage |
I |
- |
| 2 |
4 |
BK |
5987 |
Front Blower Motor Return |
I |
- |
