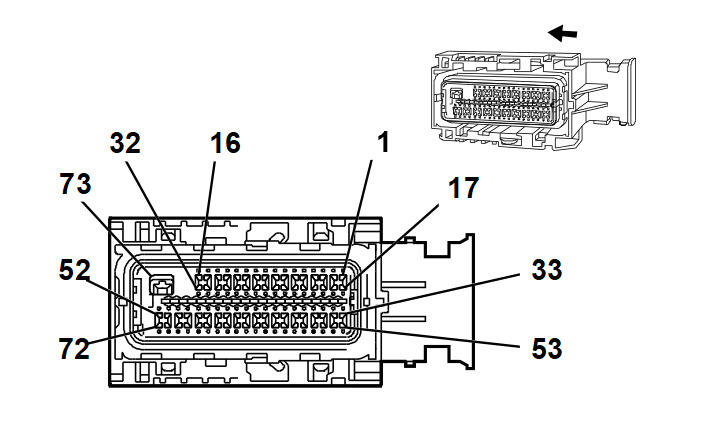

K20 Engine Control Module X1

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Engine
OEM Connector: 13611938
Service Connector: 13574782
Description: 73-Way F 0.64, 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13505803	J-35616-35 (VT)	J-38125-12A	1326030-8	Lear 17	4	D
II	13575812	J-35616-64B (LT BU)	J-38125-213	33467-0003	Delphi 23	J	J

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BK/YE	6032	Brake Vacuum Sensor Low Reference	II	-
2	0.5	D-BU/WH	7446	Fuel Line Pressure Sensor Signal	II	-
3	-	-	-	Not Occupied	-	-
4	0.5	YE/WH	3200	Throttle Inlet Absolute Pressure Sensor Signal	II	-
5	0.5	WH/RD	3201	Throttle Inlet Absolute Pressure Sensor 5V Reference	II	-
6	0.5	L-GN	380	A/C Refrigerant Pressure Sensor Signal	II	-
7	-	-	-	Not Occupied	-	-
8	0.5	BK/YE	7447	Fuel Line Pressure Sensor Low Reference	II	-
9	0.5	D-BU/WH	890	Fuel Tank Pressure Sensor Signal	II	-
10	0.5	YE/RD	2709	Fuel Tank Pressure Sensor 5V Reference	II	-
11 - 13	-	-	-	Not Occupied	-	-
14	0.5	WH/RD	1164	Accelerator Pedal Position 5V Reference 1	II	-
15	0.5	YE/WH	1161	Accelerator Pedal Position Signal 1	II	-
16	-	-	-	Not Occupied	-	-
17	0.5	YE/RD	6031	Brake Vacuum Sensor 5V Reference	II	-
18	0.5	VT/RD	2965	High Voltage Battery Current Sensor Voltage Reference	II	-
19	0.5	BK/GY	2963	High Voltage Battery Current Sensor Low Reference	II	-
20	-	-	-	Not Occupied	-	-
21	0.5	BN/RD	2700	A/C Pressure Sensor 5V Reference	II	-
22	0.5	BK/BN	5514	A/C Refrigerant Pressure Sensor Low Reference	II	-
23	-	-	-	Not Occupied	-	-
24	0.5	BN/RD	7445	Fuel Line Pressure Sensor 5V Reference	II	-
25	0.5	D-BU/L-GN	1936	Primary Fuel Level Sensor Signal	II	-
26	0.5	BK/L-GN	6281	Fuel Level Sensor Low Reference	II	-
27 - 29	-	-	-	Not Occupied	-	-
30	0.5	BK/D-BU	1271	Accelerator Pedal Position Low Reference 1	II	-
31	-	-	-	Not Occupied	-	-
32	0.5	WH/GY	459	A/C Compressor Clutch Relay Control	II	-
33	0.5	BN/RD	1274	Accelerator Pedal Position 5V Reference 2	II	-
34	0.5	L-GN/WH	1162	Accelerator Pedal Position Signal 2	II	-
35	-	-	-	Not Occupied	-	-
36	0.5	D-BU/BK	7493	High Speed GMLAN Serial Data (+)3	II	-
37	0.5	WH	7494	High Speed GMLAN Serial Data (-)3	II	-
38	-	-	-	Not Occupied	-	-
39	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) 1	II	-
40	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	II	-
41	-	-	-	Not Occupied	-	-
42	0.5	BN/YE	473	High Speed Cooling Fan Relay Control	II	-
43	-	-	-	Not Occupied	-	-
44	0.5	GY	5660	Fuel Pump Controller Data Out Signal	II	-
45	-	-	-	Not Occupied	-	-
46	0.5	BN/WH	419	Check Engine Indicator Control	II	-
47	0.5	WH/RD	5381	Brake Position Sensor 5V Reference	II	-
48	0.5	WH/L-GN	5380	Brake Position Sensor Signal	II	-
49	0.5	YE/D-BU	4161	Transmission Auxiliary Pump Relay Control	II	-
50	-	-	-	Not Occupied	-	-
51	0.5	VT/L-GN	439	Run/Crank Ignition 1 Voltage	II	-
52	0.5	RD/BN	440	Battery Positive Voltage	II	-
53	0.5	BK/VT	1272	Accelerator Pedal Position Low Reference 2	II	-
54 - 56	-	-	-	Not Occupied	-	-
57	0.5	WH/D-BU	6311	Cruise/ETC/TCC Brake Signal	II	-
58	0.5	YE/VT	6030	Brake Vacuum Sensor Signal	II	-
59	0.5	L-GN/VT	335	Low Speed Cooling Fan Relay Control	II	-
60 - 61	-	-	-	Not Occupied	-	-
62	0.5	VT/D-BU	5291	Powertrain Main Relay Fused Supply 2	II	-
63	0.5	YE/VT	4325	Starter Pinion Solenoid Relay Control	II	-
64 - 65	-	-	-	Not Occupied	-	-
66	0.5	WH	1310	EVAP Canister Vent Solenoid Control	II	-
67	-	-	-	Not Occupied	-	-
68	0.5	BK/YE	5382	Brake Position Sensor Low Reference	II	-
69	-	-	-	Not Occupied	-	-
70	0.5	VT/YE	5985	Accessory Wakeup Serial Data	II	-
71	-	-	-	Not Occupied	-	-
72	0.5	YE	5991	Powertrain Relay Coil Control	II	-
73	2.5	VT/D-BU	5290	Powertrain Main Relay Fused Supply 1	I	-
