Fuel Tank Shield Replacement

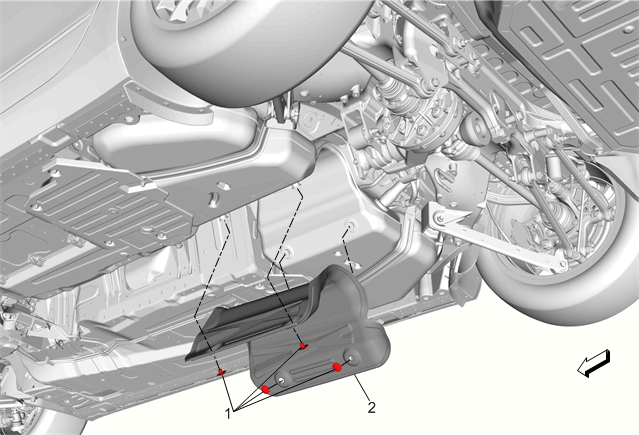

Fig 1: Fuel Tank Shield
GM4248847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Propeller Shaft Replacement
1 Fuel Tank Shield Retainer [4x]
CAUTION: Refer to Fastener Caution .
2 Fuel Tank Shield
