Removal Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static without HP9) , Cooling System Draining and Filling (GE 47716 without HP9) , Cooling System Draining and Filling (Static LTG with HP9) and/or Cooling System Draining and Filling (GE 47716 LTG with HP9)
Fuel Pump Insulator» Remove - Fuel Pump Insulator Replacement
Intake Manifold» Remove - Intake Manifold Replacement (Except Hybrid) and/or Intake Manifold Replacement (Hybrid)

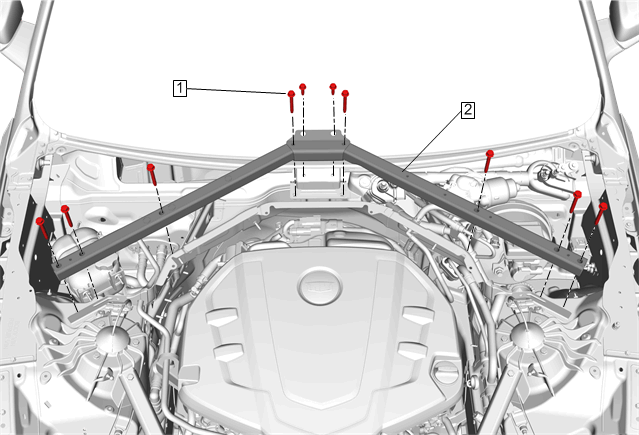

Front End Sheet Metal Cross Brace» Remove - Front End Sheet Metal Cross Brace Replacement

Fig 1: Front End Sheet Metal Cross Brace
Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Panel Brace - Rear» Remove - Front Wheelhouse Panel Brace Replacement (Rear)

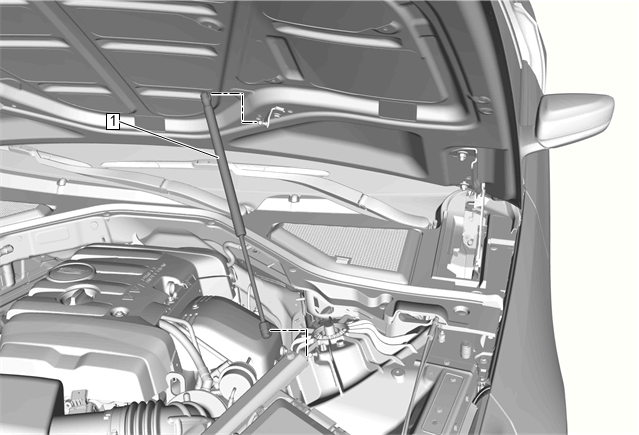

Hood Strut-Right Side» Remove - Hood Strut Replacement

Fig 2: Hood Strut
Courtesy of GENERAL MOTORS COMPANY
Hose Clamp (1)» Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type

Fig 3: Hose Clamps
Courtesy of GENERAL MOTORS COMPANY
Radiator Inlet Hose (2)» Remove

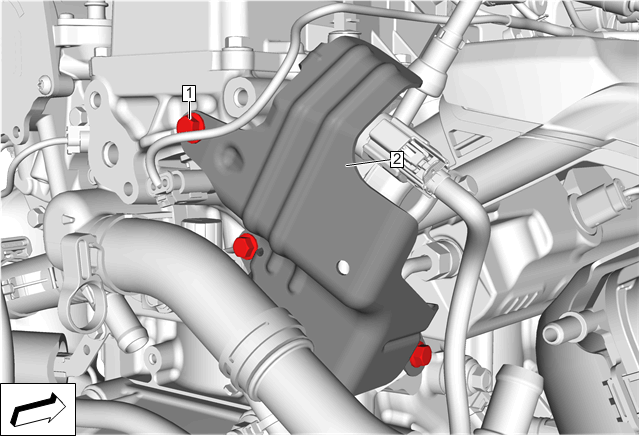

Fuel Pump Cover Fastener (1)» Remove [3x]

Fig 4: Fuel Pump Cover
Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Cover (2)» Remove
