Fuel Pressure Sensor Replacement - Fuel Feed Pipe

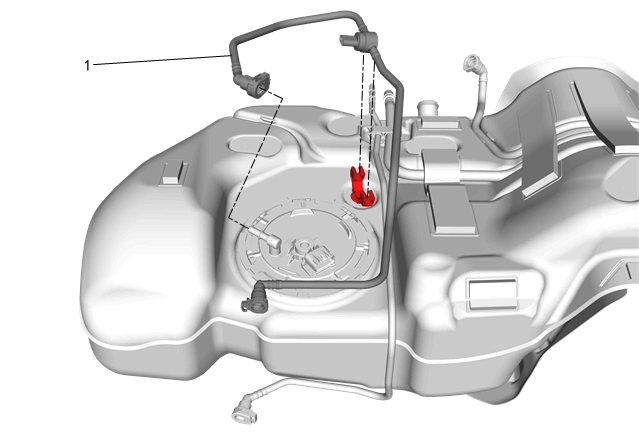

Fig 1: Fuel Pump Fuel Feed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement
1	Fuel Pressure Sensor NOTE: Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly. Procedure Disconnect the electrical connector. Disconnect quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service Remove from retainer.

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement

Fuel Pressure Sensor

NOTE: Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly.

Procedure

Disconnect the electrical connector.
Disconnect quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service
Remove from retainer.
