Rear Body Exhaust Heat Shield Replacement

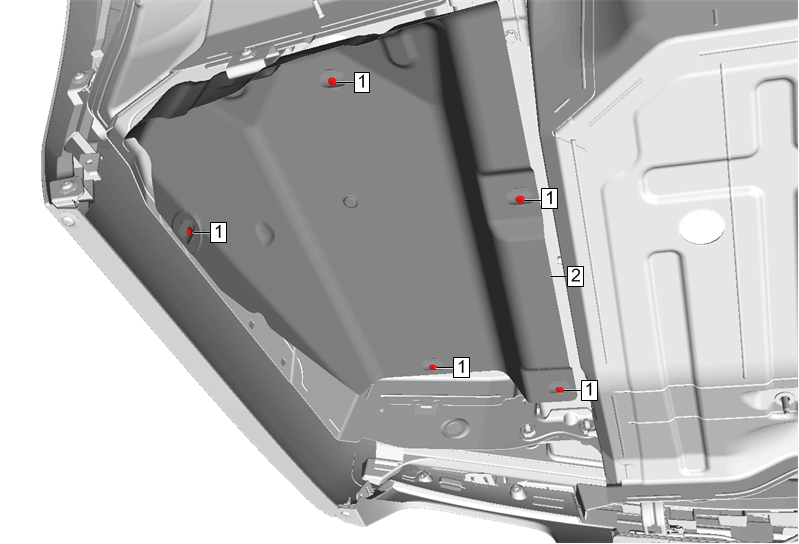

Fig 1: Rear Body Exhaust Heat Shield
GM4320260Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Exhaust Muffler Replacement (LTG without HP9) Exhaust Muffler Replacement (LGW, LGX) Exhaust Muffler Replacement (LTG with HP9)
1 Rear Body Exhaust Heat Shield Rivet [5x]
Procedure
Drill out the rivets.
2 Rear Body Exhaust Heat Shield
