Installation Procedure

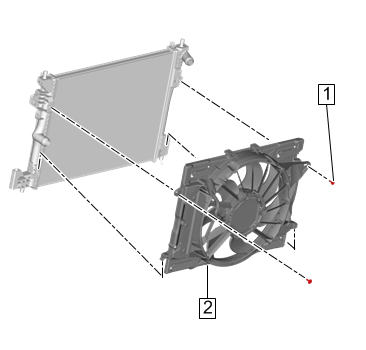

Engine Coolant Fan Shroud (2) @ Radiator Assembly (3)» Install

Fig 1: Engine Coolant Fan Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Engine Coolant Fan Bolt (1)» Install and tighten [2x] 5.1 N.m (45 lb in)
Engine Coolant Fan Module Radiator (1)» Install

Fig 2: Engine Coolant Fan Module Radiator
Courtesy of GENERAL MOTORS COMPANY
Electrical Connector @ Engine Coolant Fan Shroud» Connect

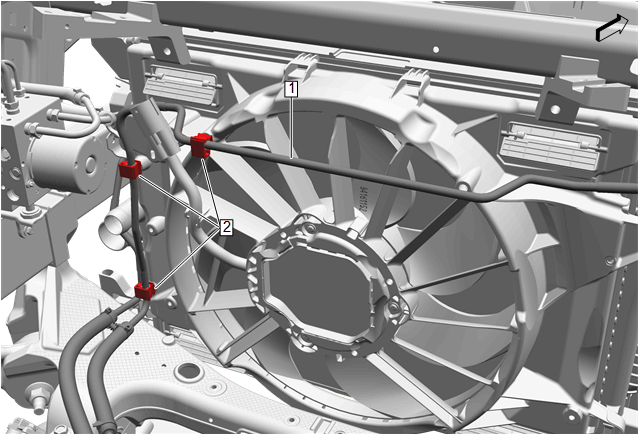

Transmission Fluid Cooler Pipe Clip (1) @ Engine Coolant Fan Shroud» Install [4x] - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With HP9)

Fig 3: Transmission Fluid Cooler Pipe Clips
Courtesy of GENERAL MOTORS COMPANY

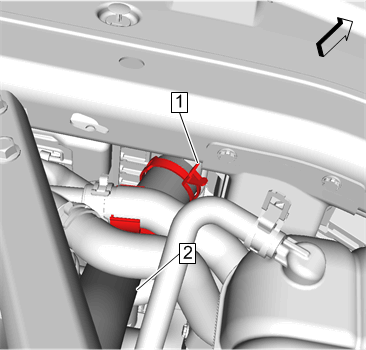

Radiator Outlet Hose (2) @ Radiator Assembly» Install - Radiator Outlet Hose Replacement (LTG with HP9)

Fig 4: Radiator Outlet Hose Clamp
Courtesy of GENERAL MOTORS COMPANY

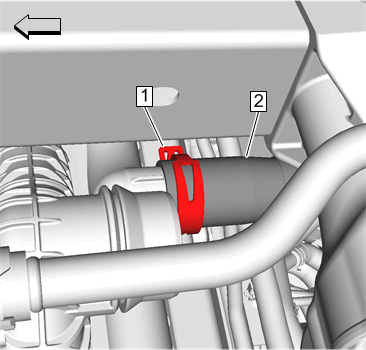

Radiator Inlet Hose (2) @ Radiator Assembly» Install - Radiator Inlet Hose Replacement (LTG with HP9)

Fig 5: Radiator Inlet Hose And Clamp
Courtesy of GENERAL MOTORS COMPANY

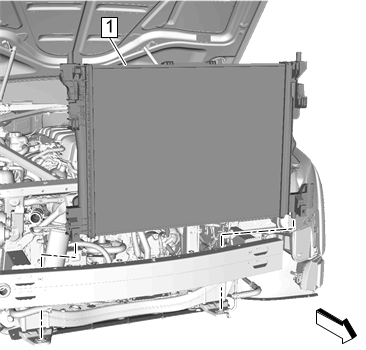

Charge Air Cooler Radiator (1)» Install - Charge Air Cooler Radiator Replacement

Fig 6: Charge Air Cooler Radiator
Courtesy of GENERAL MOTORS COMPANY

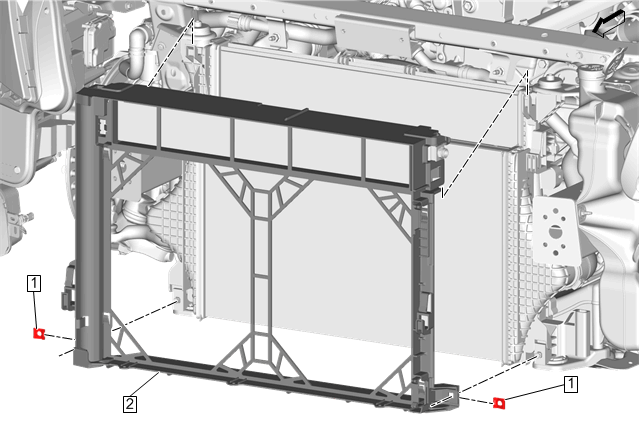

Radiator Upper Bracket (2, 4)» Install - Radiator Upper Bracket Replacement (LGW LGX LTG)

Fig 7: Radiator Upper Bracket
Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Condenser Bracket (2)» Install - Air Conditioning Condenser Bracket Replacement

Fig 8: Air Conditioning Condenser Bracket
Courtesy of GENERAL MOTORS COMPANY

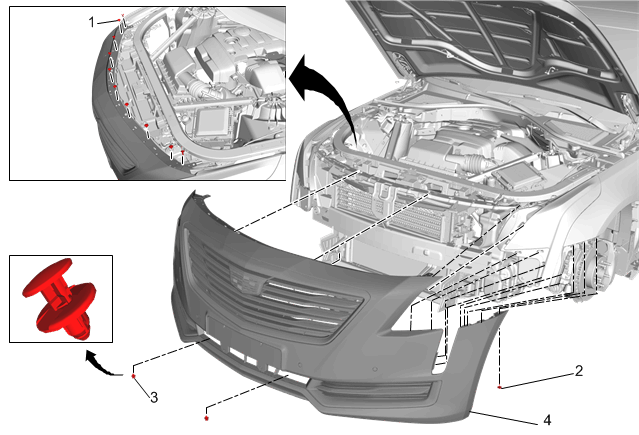

Front Bumper Fascia (4)» Remove - Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)

Fig 9: Front Bumper Fascia
Courtesy of GENERAL MOTORS COMPANY
Fill the cooling system. Refer to Cooling System Draining and Filling (Static LTG with HP9) and/or Cooling System Draining and Filling (GE 47716 LTG with HP9)
Enable the high voltage system. Refer to High Voltage Enabling
Start the engine and check for coolant leaks.
