Pedestrian Sound Alert Speaker Replacement

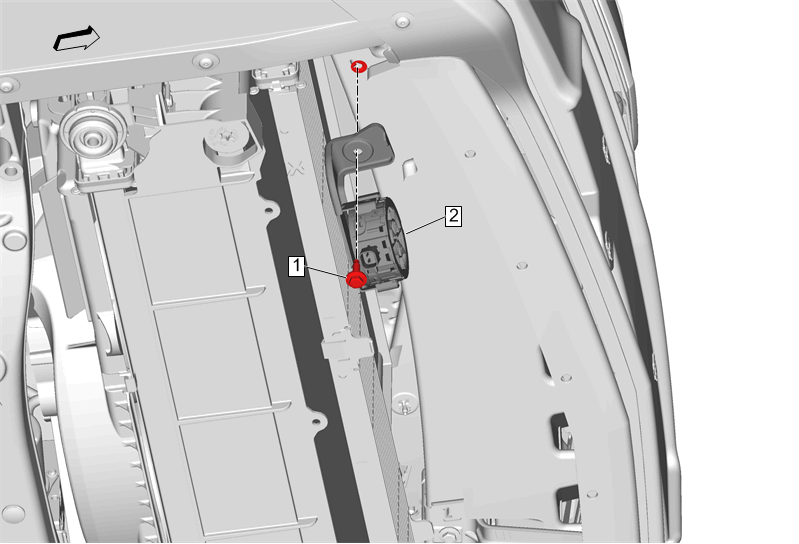

Fig 1: Pedestrian Sound Alert Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Lower Stiffener Replacement
1	Pedestrian Sound Alert Speaker Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Pedestrian Sound Alert Speaker Procedure  Disconnect the electrical connector.
