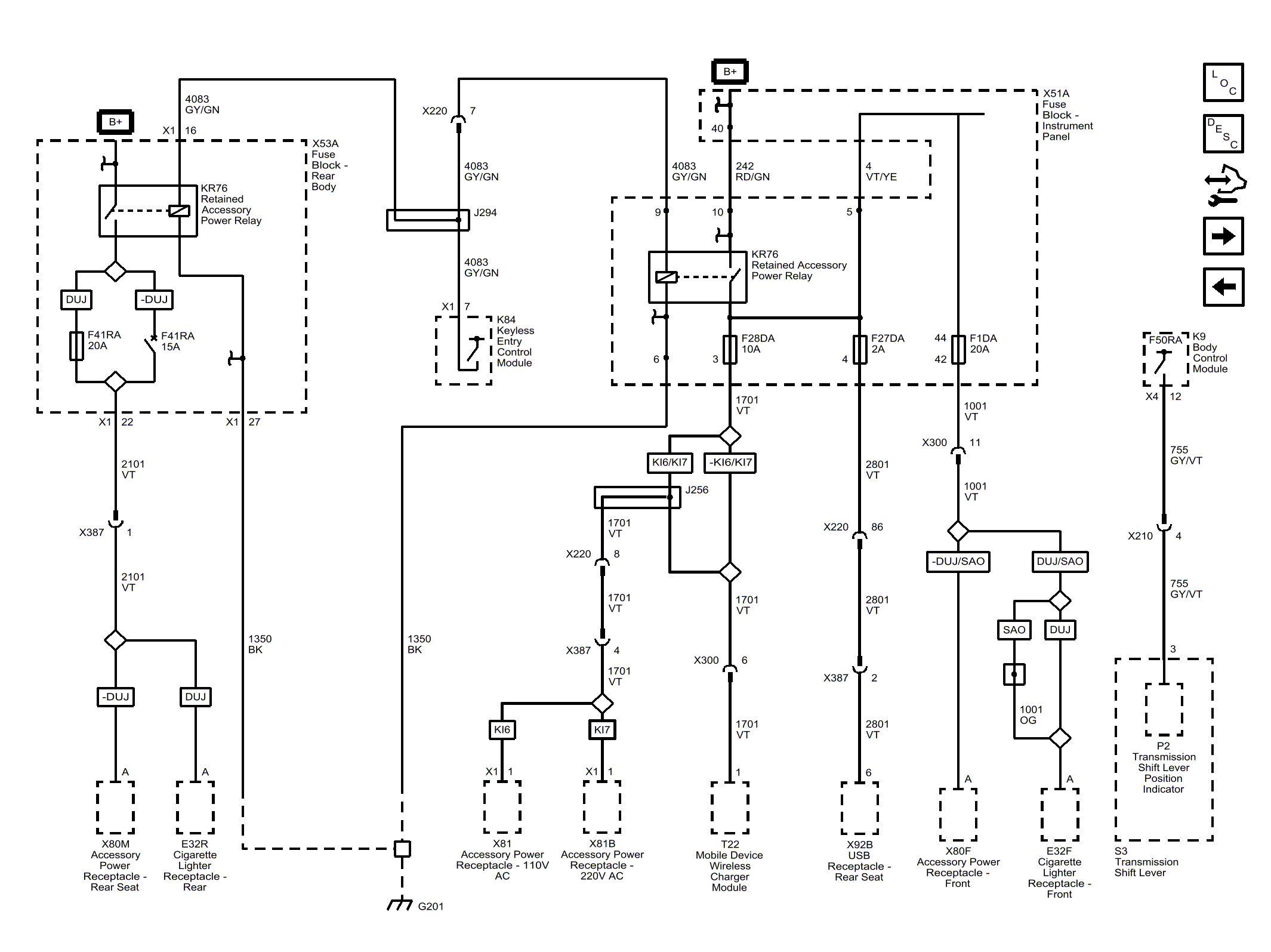

Home >> Cadillac >> 2017 >> CT6 Plug-In >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power MODING Schematics >> Schematic Wiring Diagrams >> Power Moding Wiring Schematics >> Retained Accessory Power Relays
