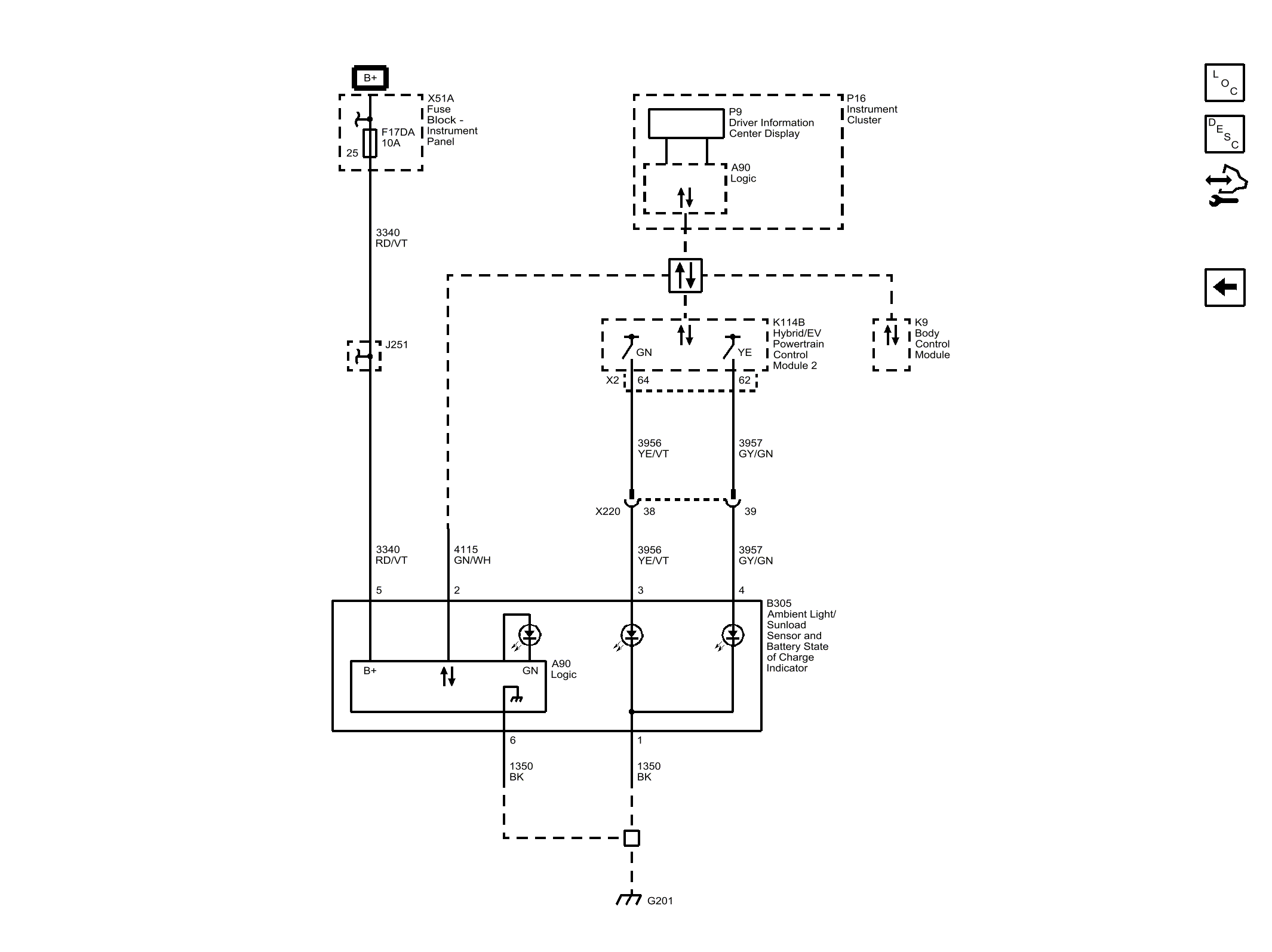

Home >> Cadillac >> 2017 >> CT6 Plug-In >> Repair and Diagnosis >> Electrical >> Body Electrical >> Plug-In Charging System >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> Battery State of Charge
