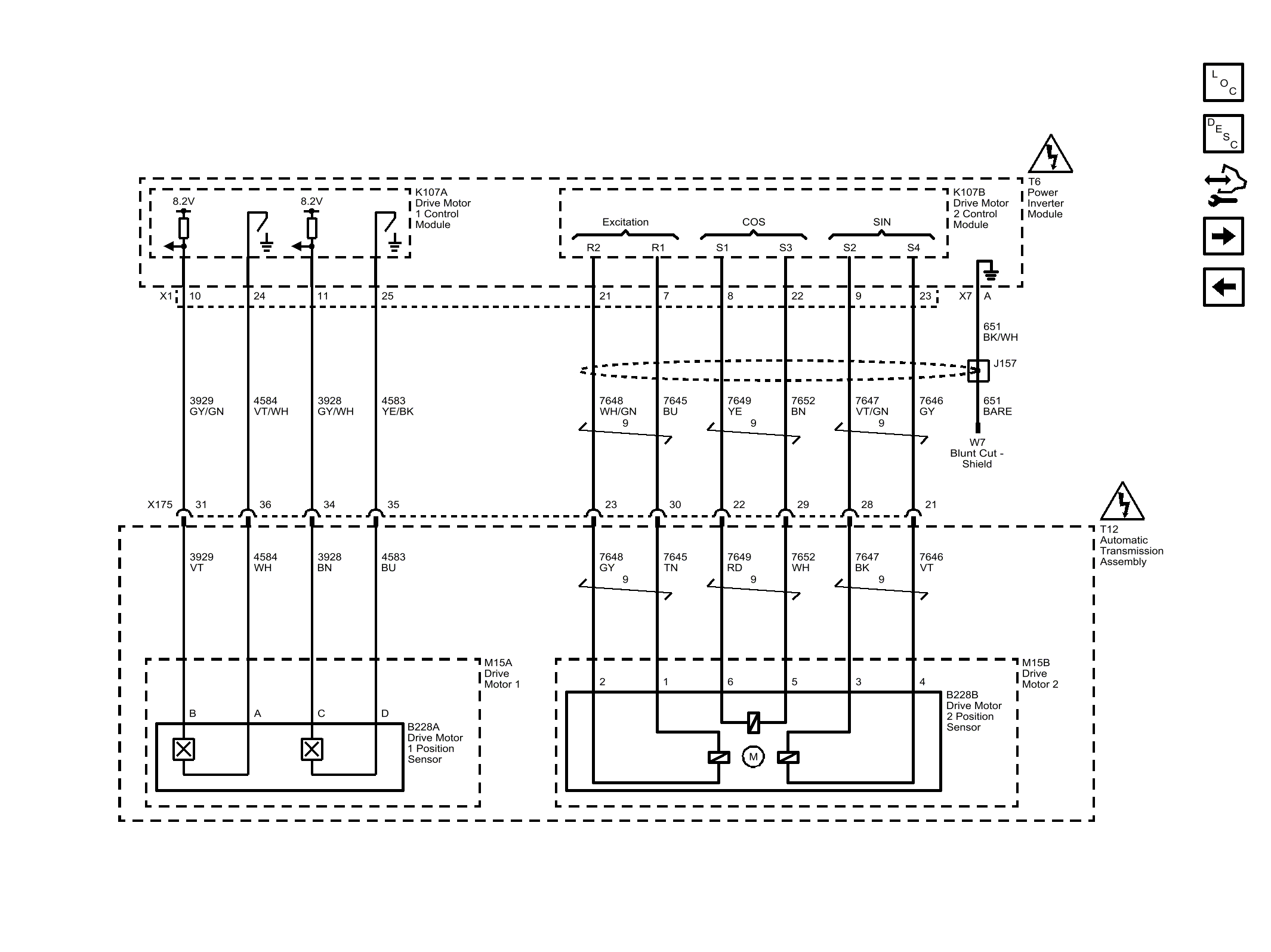

Home >> Cadillac >> 2017 >> CT6 Plug-In >> Repair and Diagnosis >> Electrical >> Body Electrical >> Hybrid/EV System Controls >> Schematic Wiring Diagrams >> Hybrid/EV Controls Wiring Schematics >> Drive Motor Monitoring
