Installation Procedure

  1. Front Brake Shield (1)» Install

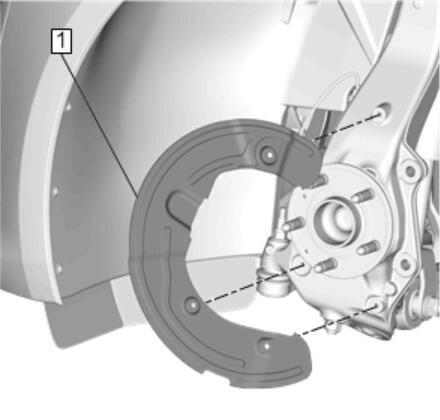

    Fig 1: Front Brake Shield
    GM4246670Courtesy of GENERAL MOTORS COMPANY
  2. Front Brake Shield Bolt (1)» Install and tighten 9 N.m (80 lb in) [3x]

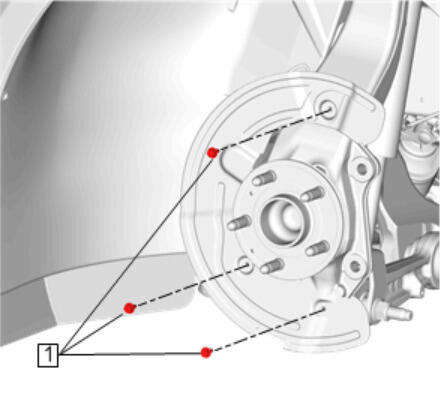

    Fig 2: Front Brake Shield Bolt
    GM4246668Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Fastener Caution
  3. Front Brake Rotor Replacement » Install
