Installation Procedure

  1. Rear Seat Adjuster Switch (2)» Install

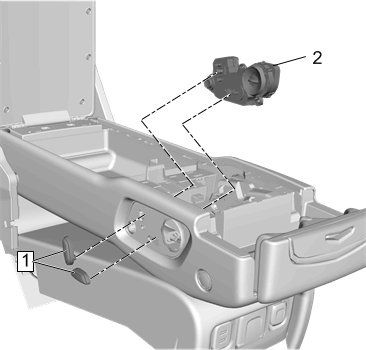

    Fig 1: Rear Seat Adjuster Switch And Knobs
    GM4772544Courtesy of GENERAL MOTORS COMPANY
  2. Rear Seat Adjuster Knob (1)» Install [2x]
  3. Connect the electrical connector.
  4. Switch Retainer (2)» Install

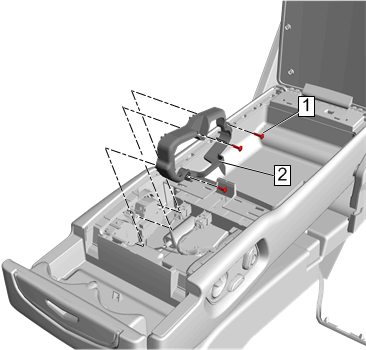

    Fig 2: Switch Retainer And Screws
    GM4772541Courtesy of GENERAL MOTORS COMPANY
  5. Switch Retainer Screw (1)» Install and tighten [3x] 2.5 N.m (22 lb in)
    CAUTION: Refer to Fastener Caution .
  6. Armrest Cover (1)» Install

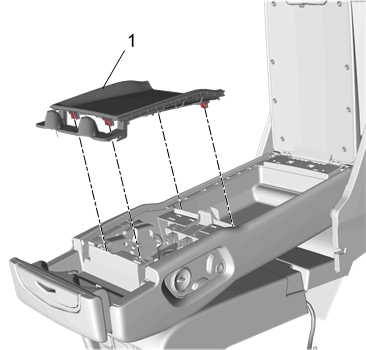

    Fig 3: Armrest Cover
    GM4772535Courtesy of GENERAL MOTORS COMPANY
  7. Console Bezel (1)» Install

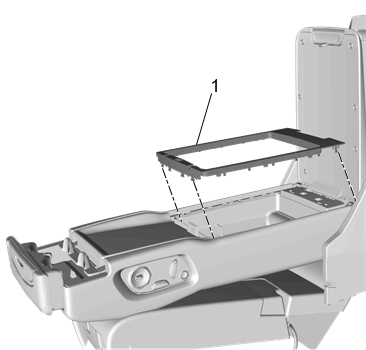

    Fig 4: Console Bezel
    GM4772529Courtesy of GENERAL MOTORS COMPANY
