Rear Seat Adjuster Replacement

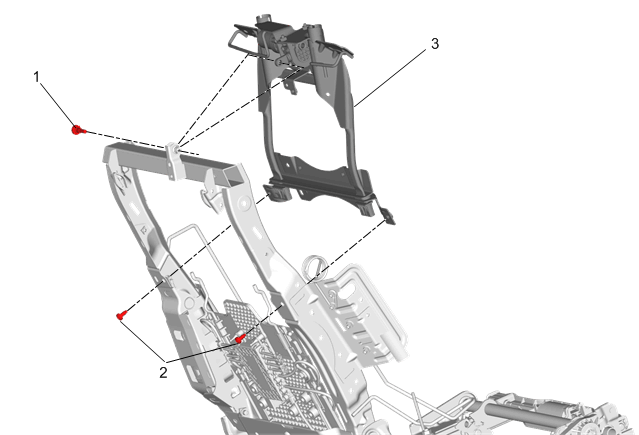

Fig 1: Rear Seat Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Back Cushion Support Replacement
1	Rear Seat Adjuster Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Seat Adjuster Screw [2x] Tighten 10 N.m (89 lb in)
3	Rear Seat Adjuster Procedure Transfer components as necessary.
