Front Seat Lumbar Support Bladder Pump Replacement

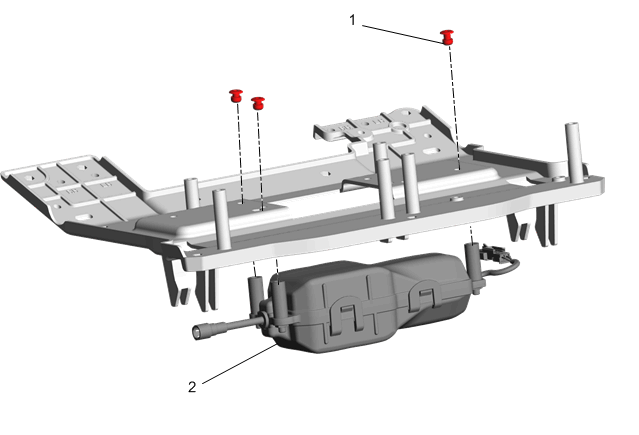

Fig 1: Front Seat Lumbar Support Bladder Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Front Seat Adjuster Memory Module Bracket Replacement
1	Front Seat Lumbar Support Bladder Pump Rivet [3x]
2	Front Seat Lumbar Support Bladder Pump Procedure Disconnect the electrical connector. Disconnect the air hose.

Callout

Component Name

WARNING: Refer to Eye Protection Warning .

Front Seat Lumbar Support Bladder Pump Rivet [3x]

Front Seat Lumbar Support Bladder Pump

Procedure
