Front Seat Adjuster Memory Switch Bezel Replacement

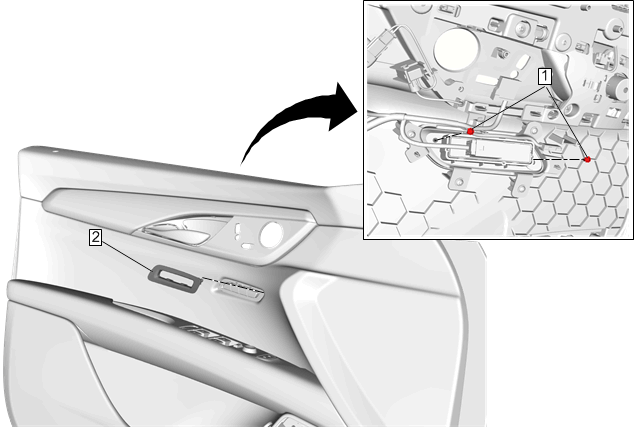

Fig 1: Front Seat Adjuster Memory Switch Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement Front Side Door Insulator »Reposition
1	Front Seat Adjuster Memory Switch Bezel Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Switch Bezel

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Switch Bezel Fastener [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Switch Bezel
