Removal Procedure

Rear Compartment Floor Panel Trim» Remove - Rear Compartment Front Trim Replacement (Without HP9)
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Battery Distribution Fuse Block Cover Fastener (2)» Remove

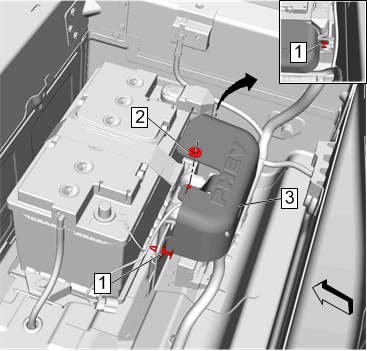

Fig 1: Battery Distribution Fuse Block Cover
Courtesy of GENERAL MOTORS COMPANY
Battery Distribution Fuse Block Cover Retainer (1)» Disengage [2x]
Battery Distribution Fuse Block Cover (3)» Remove
Battery Positive Post Cover (2)» Remove

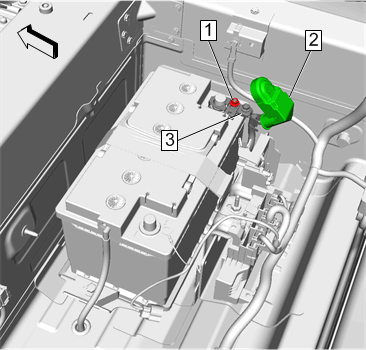

Fig 2: Battery Positive Post Cover And Clamp Nut
Courtesy of GENERAL MOTORS COMPANY
Battery Positive Post Clamp Nut (1)» Loosen
Battery Positive Cable (3)» Reposition away
Electrical Connector (1)» Disconnect [3x]

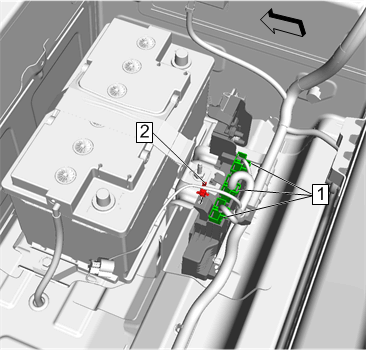

Fig 3: Electrical Connectors And Retainer
Courtesy of GENERAL MOTORS COMPANY
Retainer (2)» Disengage
Battery Positive Cable Nut (1)» Remove

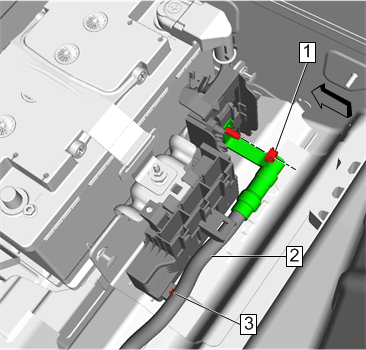

Fig 4: Battery Positive Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Retainer (3)» Disengage
Battery Positive Cable (2)» Remove
Battery Distribution Fuse Block Retaining Tab (1)» Disengage

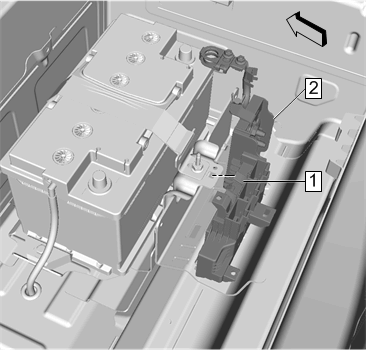

Fig 5: Battery Distribution Fuse Block And Retaining Tab
Courtesy of GENERAL MOTORS COMPANY
Battery Distribution Fuse Block (2)» Remove
