Moveable Window Wiring Schematics: Driver

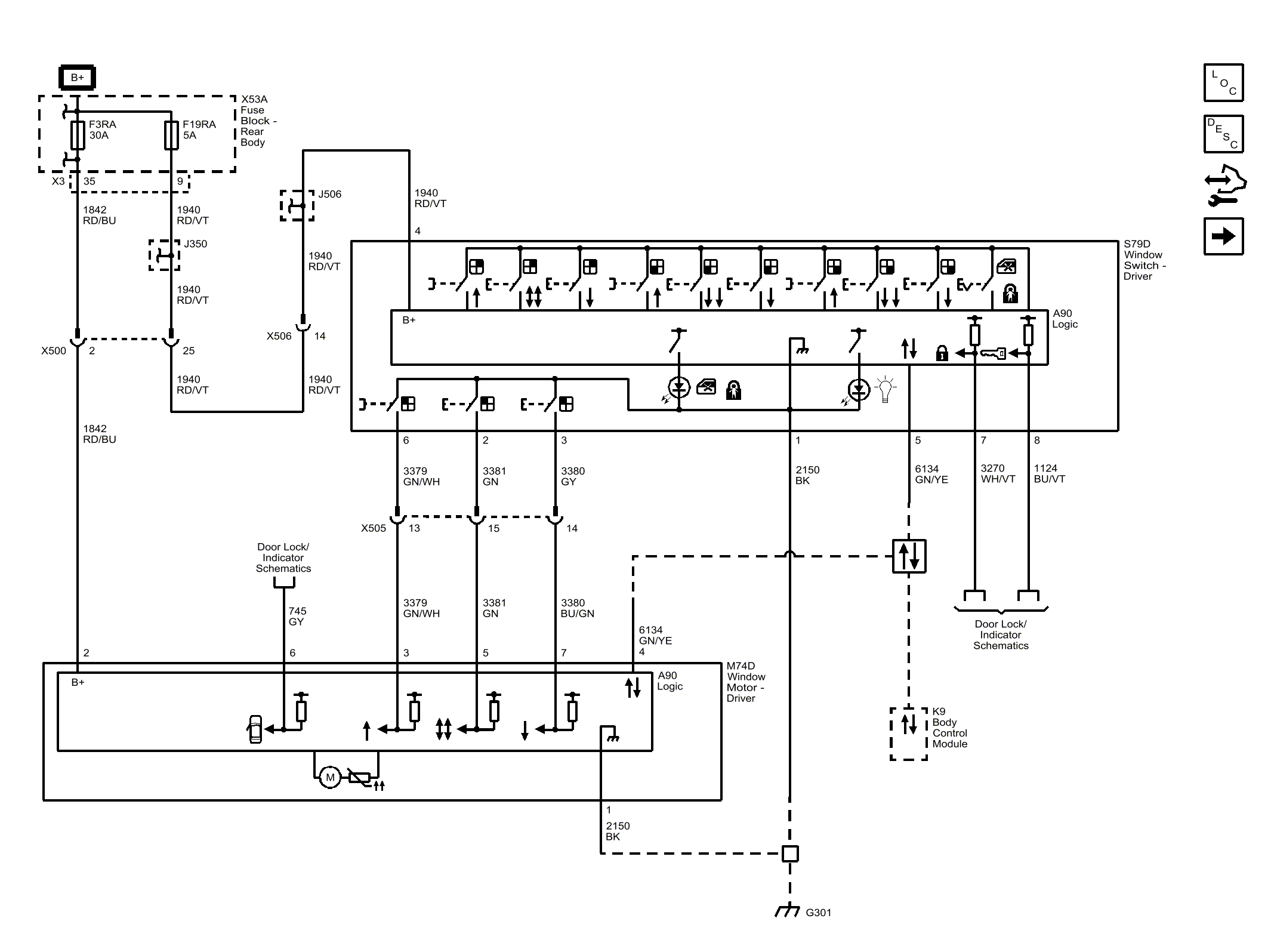

Fig 1: Driver

GM4489631

Courtesy of GENERAL MOTORS COMPANY
